brass band heating

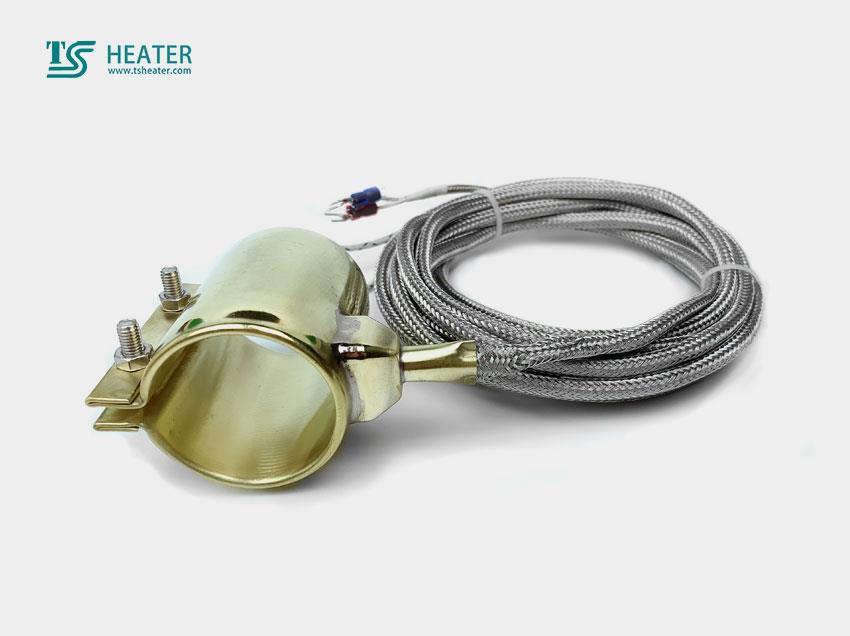

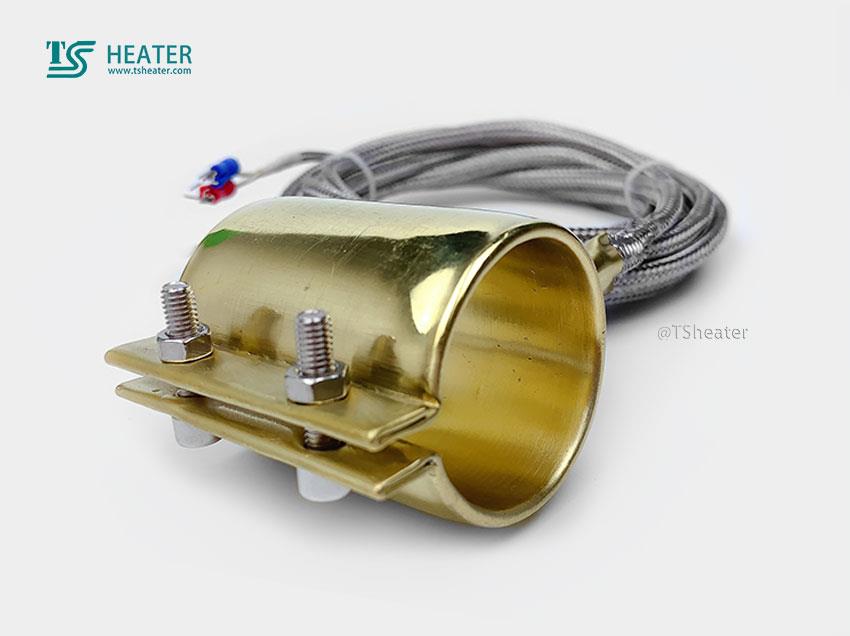

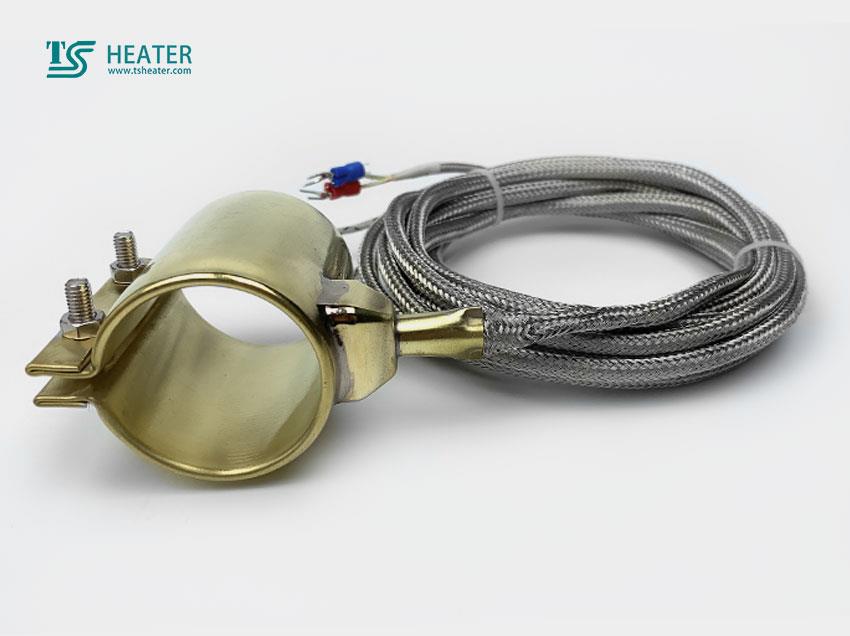

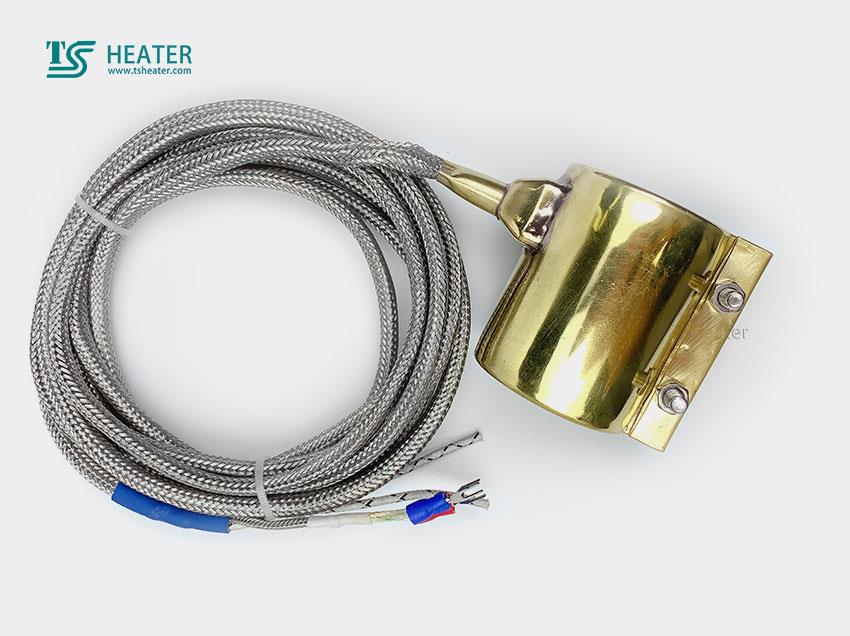

Brass heating ring

Brass heating ring is mainly sealed heating body by brass tube, heating body adopts imported high temperature resistance wire and high temperature resistant mica plate, the lead wire adopts high temperature resistant fiber wire and the way of outer copper belt, so that the lead wire is wear-resistant and durable.The wiring of the product is connected with the heating body with copper sockets and welded with silver fiber, so that the finished product is completely sealed.

Main features:

1, high temperature resistant mica plate, with high temperature resistance, good insulation performance advanced characteristics.

2, high temperature heat generation hotline, with fast heat dissipation, heat evenly, high temperature resistance and other characteristics.

3, high quality copper has the characteristics of fast heat conduction, heat dissipation, high temperature resistance, temperature up to 600℃ without burning phenomenon.

4. Full seal production has special effects for injection molding machine nozzle with serious glue leakage.

5, long service life, can save the number of replacement, improve the effectiveness of work.

6. Technical parameters: ambient temperature -20~+60 ° c, relative humidity less than 80%.

7, the leakage current is less than 0.5 MA., cold insulation resistance > 50 m Ω;< 10 Ω grounding resistance.

Precautions for installation and use:

1. The contact surface of the installed position of this electric heating element should be flat without concave and convex phenomenon.

2. This electric heating element should be kept dry to avoid soaking in water to affect its insulation performance.

3. Before installation, check whether the installation position is consistent with the specification of the heating element and whether the voltage is consistent.

4. After installation, check whether the inner hexagon bolts, wiring block bolts and wiring bolts are locked, so as not to affect the service life of the product due to thermal expansion and cold shrinkage.

5. The product should be used under
