20mm electric cartridge heater recommended specifications

Dec 07, 2020

【20mm electric cartridge heater recommended specifications】

Electric cartridge heater is a kind of electric heating tube (tubular electric heating element). In China's electric heating industry, there is a model called M3 for a long time. Due to the widespread use of electric heating tubes in China in the late 1990s, China has now had a complete product line for many years. There are already many shapes of electric heating tubes

The common specifications of a 20mm electric cartridge heater are recommended as follows:

model		L (pipe length)	V (voltage)	W (power)	model		L (pipe length)	V (voltage)	W (power)
Type	D (pipe diameter)	L (pipe length)	V (voltage)	W (power)	Type	D (pipe diameter)	L (pipe length)	V (voltage)	W (power)
FYCHC/FYCHS	20	50	220	250	FYCHC/FYCHS	20	150	220	1000
	20	50	220	300		20	160	220	750
	20	60	220	300		20	160	220	1000
	20	60	220	400		20	200	220	750
	20	60	220	500		20	200	220	1000
	20	60	220	600		20	200	220	1250
	20	60	220	800		20	200	220	1500
	20	80	220	300		20	200	220	1800
	20	80	220	400		20	250	220	600
	20	80	220	600		20	250	220	800
	20	80	220	800		20	250	220	1000
	20	100	220	250		20	250	220	1250
	20	100	220	350		20	250	220	1500
	20	100	220	500		20	250	220	2000
	20	100	220	600		20	300	220	800
	20	100	220	800		20	300	220	1000
	20	100	220	1000		20	300	220	1500
	20	120	220	400		20	300	220	2000
	20	120	220	700		20	300	220	2500
	20	130	220	500		20	350	220	800
	20	130	220	600		20	350	220	1000
	20	130	220	700		20	350	220	1250
	20	130	220	1000		20	350	220	1500
	20	150	220	400		20	350	220	2000
	20	150	220	600		20	400	220	600
	20	150	220	800		20	400	220	800

model		L (pipe length)	V (voltage	W (power)
Type	D (pipe diameter)	L (pipe length)	V (voltage	W (power)
FYCHC/FYCHS	20	400	220	1250
	20	400	220	1500
	20	400	220	2000
	20	450	220	900
	20	450	220	1500
	20	450	220	1800
	20	450	220	2000
	20	500	220	900
	20	500	220	1250
	20	500	220	1500
	20	500	220	2000
	20	500	220	2500
	20	550	220	900
	20	550	220	1500
	20	550	220	2000
	20	600	220	900
	20	600	220	1500
	20	600	220	2000

Remarks: The above specifications are only recommended specifications, other specifications and dimensions can be customized non-standard, and you can consult online for details.

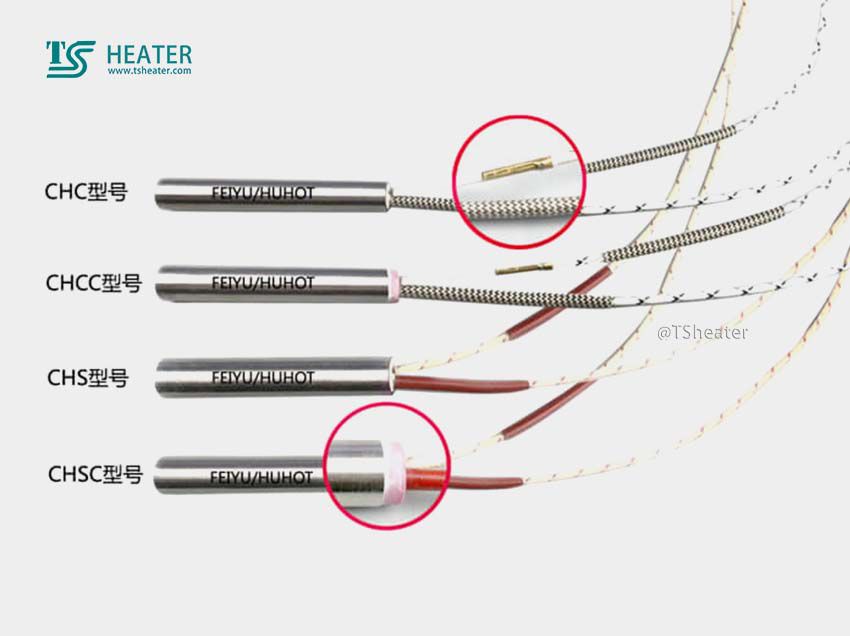

[20mm electric cartridge heater structure is available]

Notes:

CHC model refers to external wiring structure;

CHCC model refers to external wiring + ceramic head structure;

CHS model refers to an inner lead structure;

CHSC model refers to inner lead + ceramic head structure;

[Guide to technical parameters of electric cartridge heater]

Tube material	ss304/321/310s/lncoloy800/840{note 1}
Heating wire material	Cr20Ni80
Terminal	Steel
wire	G	Silicone glass fiber braided tinned steel wire		180℃
	T	Teflon wire		260℃
	M	Mica glass fiber braided pure nickel wire		400℃
Insulation tube heat resistance temperature	180℃
Maximum use temperature	700℃{note 2}
Specification sheet analysis
model	L	V	W	Wire
				Wire type	Wire length
CHC6	-40	220	50	G	250

Note①: Suggestions for material selection (note: this material is a suggestion, not unique):

Surface load ≤6W/ cm2-SS304;

6W/cm2＜surface load≤ 12W/cm2 – SS321 or SS310S;

12W/cm2＜surface load≤ 20W/cm2 – SS310S or Incoloy 800/840

Note ②: The maximum operating temperature of 700℃ refers to the use of SS310S or Incoloy800/840. This temperature is used for a 1-year warranty in an embedded dry burning environment, and 3 months in bare air dry burning environment. [Note that China's low-end single-head tube embedded dry-burning uniform warranty is 3 months (low-cost performance, not recommended)]

Electric cartridge heater accessories selection:

The limit piece is optional, please provide the shape and size of the limit piece

Built-in thermocouple, generally optional K or J thermocouple

Outgoing wire protection, generally optional metal hose outgoing protection, metal braided wire outgoing protection

The heat sink is generally used for air-dry burning to expand the heat dissipation area.
