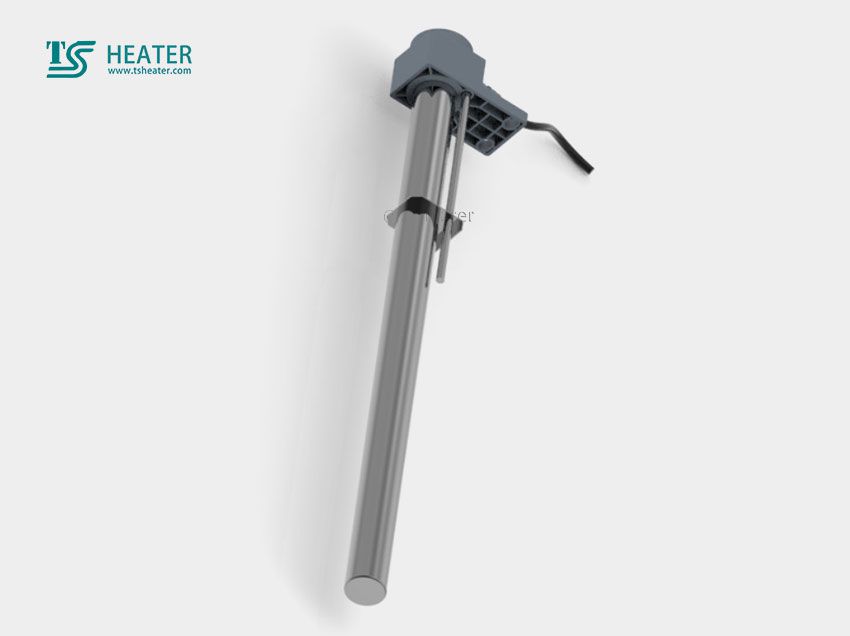

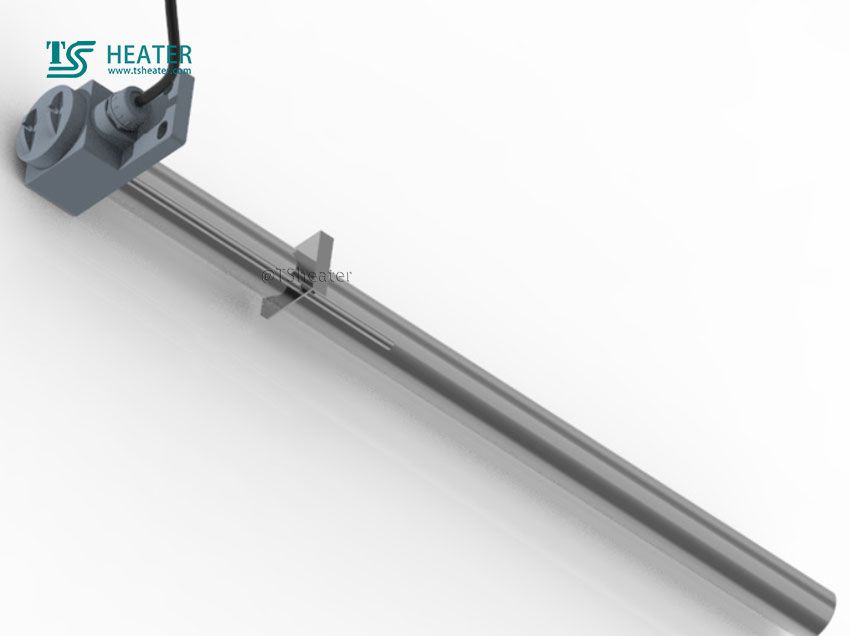

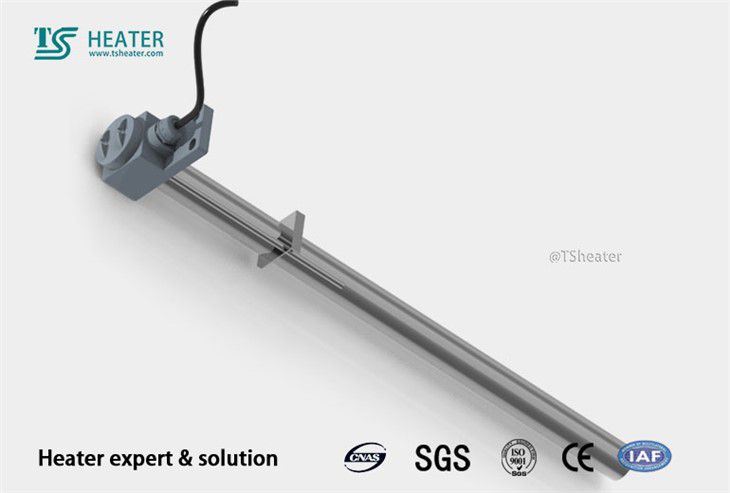

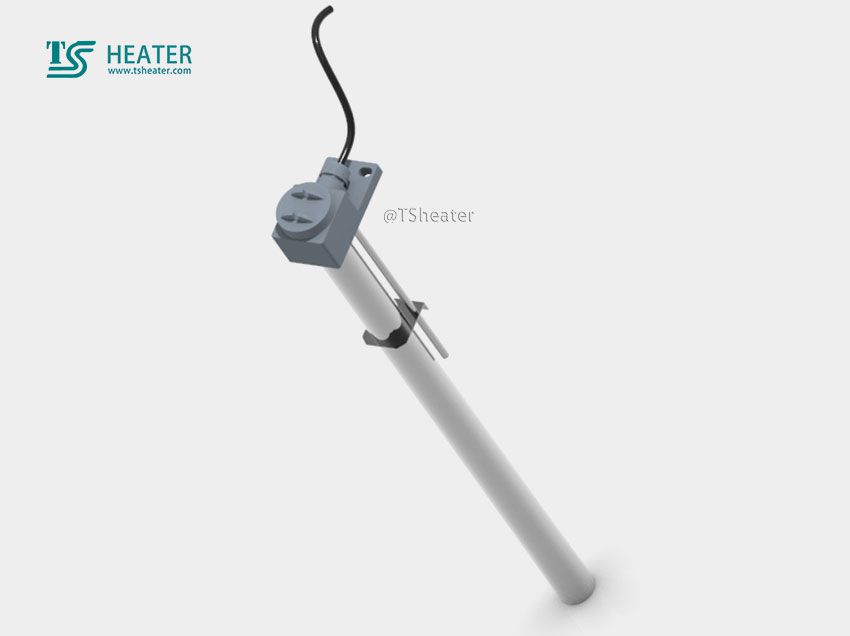

Water Tank with Immersion Heater : 1 100% guaranteed no leakage welding; 2. Excellent sealing performance; 3. Limited protection against safety accidents caused by heaters.
We pursue the administration tenet of 'Quality is exceptional, Provider is supreme, Name is first', and will sincerely create and share success with all clientele for high temperature wires, energy efficient infrared heater, honeywell non programmable thermostat. We stick to the corporate culture concept of 'legal, positive, low-key, pragmatic, grateful, sharing, giving, and patriotic'. At present, we throw a sound quality assurance system to regulate the production of high quality for all products. Our company takes customer problem-solving as the basic orientation, transposition thinking as the basic method and professional technology and high-quality products as the solid backing. By virtue of our strong comprehensive strength and outstanding competitive advantages, we have maintained a rapid and steady development.
Advantages of Water Tank with Immersion Heater:
1. Automatic welding is adopted in the mouth, 100% guarantee no leakage welding;
2. Epoxy resin is used for sealing, with excellent sealing performance;
3. Ul94-v0 grade flame retardant wire connection box can effectively prevent safety accidents caused by heater;
4. Make the heater cable according to national standard to ensure that the heater will not cause fire accident due to excessive current;
Notes for use of Water Tank with Immersion Heater:

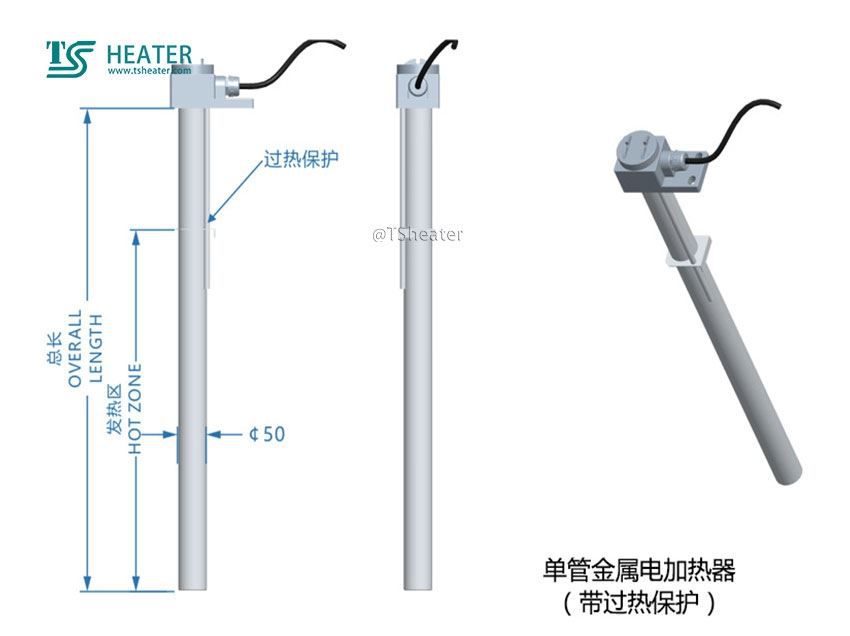

1. Temperature fuse: The temperature fuse device is in the casing tube next to the heater. When the liquid level drops and the temperature exceeds the safe value of the fuse, the fuse will be blown out, playing a protective role. The fuse needs to be replaced after it burns out. The temperature parameter of the fuse is 250V/5A 105℃ or 95℃
2.The Sensor is placed in the casing next to the heater. When the liquid decreases and the temperature exceeds the over-temperature point, the temperature will be turned on and the power will be turned off to protect the heater. When the temperature drops, the power can be switched on again. Temperature starting parameter: 250V/5A 105℃ or 95℃.
3. The reconnecting temperature of the temperature switch is 15℃ lower than the overtemperature point.
4. Due to the limitation of electrified flow, contactors are required for temperature fuses and temperature heads. It is not possible to directly connect the load of power supply and electric heater.
Quality assurance: all metal tube heaters can be guaranteed for one year in the case of non-human damage or wrong design, and can provide long-term maintenance services according to customer requirements.
