Brass Band Heater

Brass Band Heater

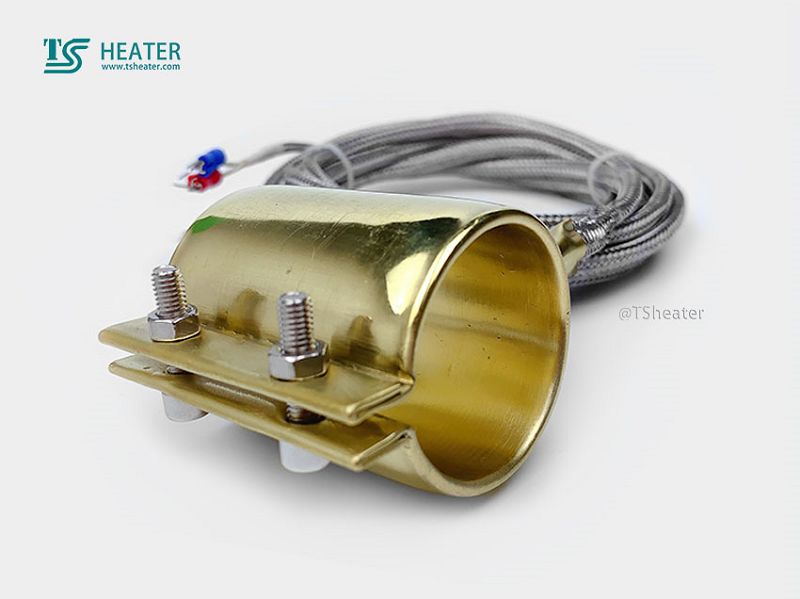

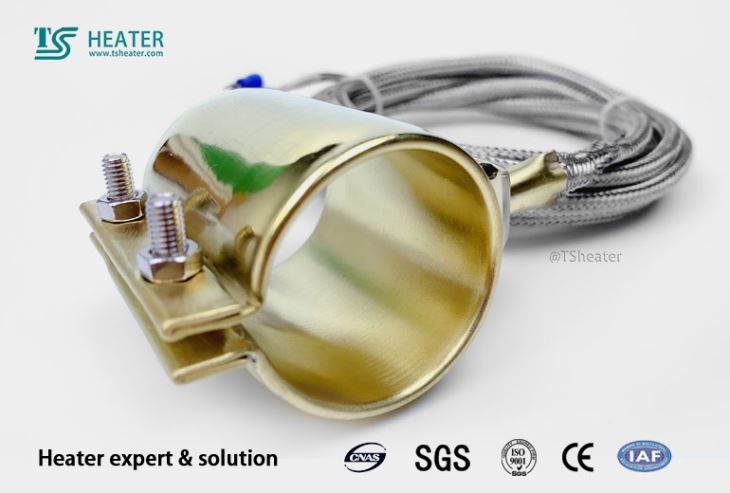

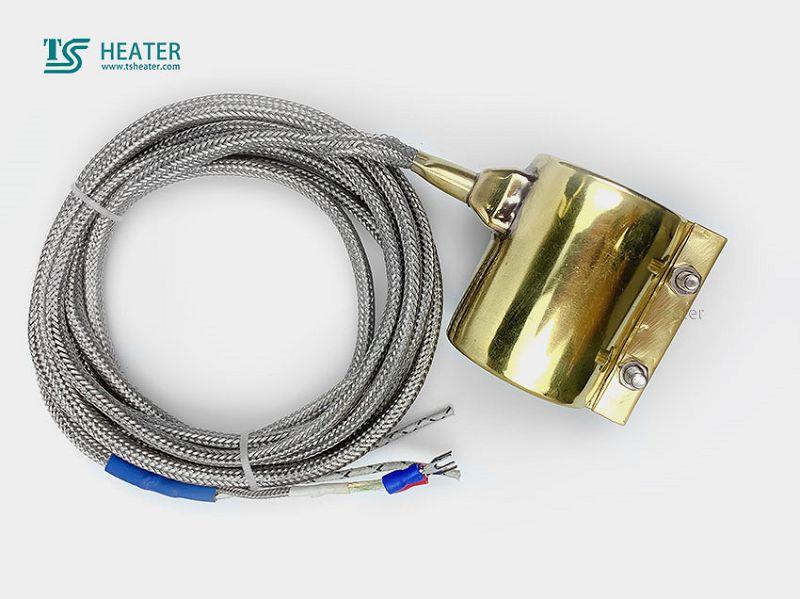

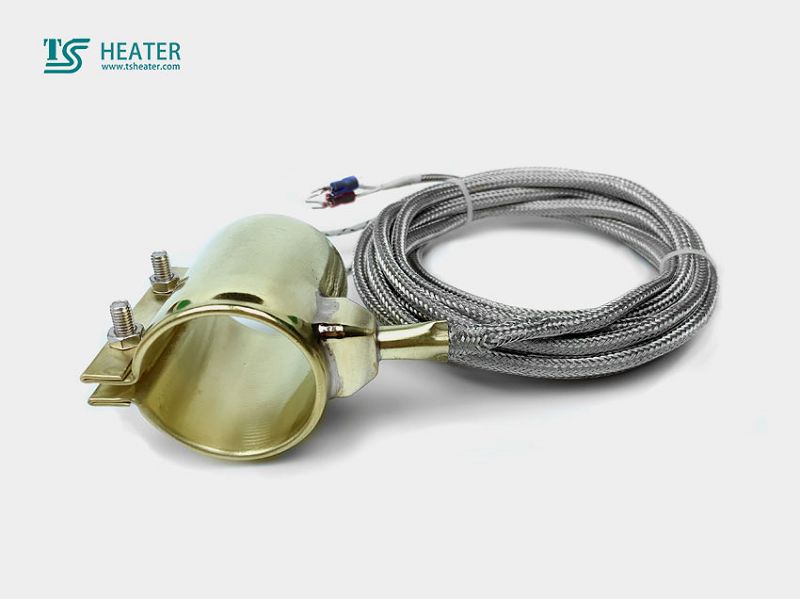

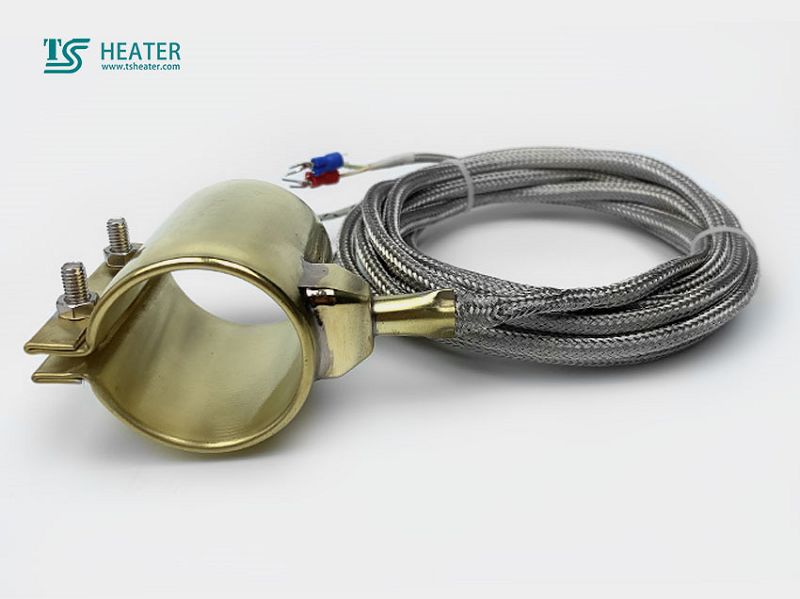

​Brass band heater is mainly sealed by brass tube to heat the body. The heating element adopts imported high temperature resistance wire and high temperature Mica sheet.TSheater as industrial heaters manufacturers,​Brass band heater manufacturers,


Brass band heater is one of industrial heaters ,as industrial heaters manufacturers , we send a large number of products to all parts of the world every year

Brass band heater manufacturing technique mainly sealed by brass tube to heat the body. The heating element adopts imported high temperature resistance wire and high temperature Mica sheet. The lead wire adopts high temperature resistant fiber line and outsourcing copper strip to make the lead wire wear and durable.

The wiring of the product is connected with the heating element by copper enamel, and welded with silver fiber, so that the finished product is completely sealed.

1.Excellent heat exchange to the cylinder
2.Heating uniformity
3.Long service life
4.Easy to install
5.High mechanical resistance

6.High heat storage performance

Technical Specification
* Specific Wattage up to 4W/cm2
* Working temperature up to 320°C
* Internal sheet made of high heat conductivity treated steel
* External sheet made of stainless steel AISI 430 resistant to high temperatures
* Resistive ribbons made of Ni-Cr 80/20
* Insulation made of pure Mica for high temperatures
* Heater’s standard thickness 4 +/-0.5mm
* Fiberglass insulated feeding cable with pure Ni or Cu-Ni conductor externally protected by metal braiding (built in earth wire) – working temperature 320°C , with peak 350°C

Brass band heater element

Brass copper band heater

Brass nozzle band heater

Industrial brass band heater

TS heater Primary Competitive Advantages:

1.Experienced Staff
3.Distributorships Offered
6.Best Price
7.Product Features
8.Product Performance
9.Prompt Delivery
10.Quality Approvals
13.Small Orders Accepted
TS heater Founded in 2009, belong to factory investment company, with strong technical & products knowledge support. TS focused on electric & industry heaters’ technology research, development,co-production and sales. Mainly engaged in electric heating tube,shaped tubular heater ,cartridge heater, Teflon heater, Hot runner heater, cast in aluminum/iron/brass heater,,Thermocouple, TC ,RTD pt100, Nickel Chrome Cr20Ni80, Heating cable, Blanket Drum heater, Silicone heater, Mica band heater, Ceramic heater, ........
All the products are widely used in electroplating, chemical, plastics, machinery
