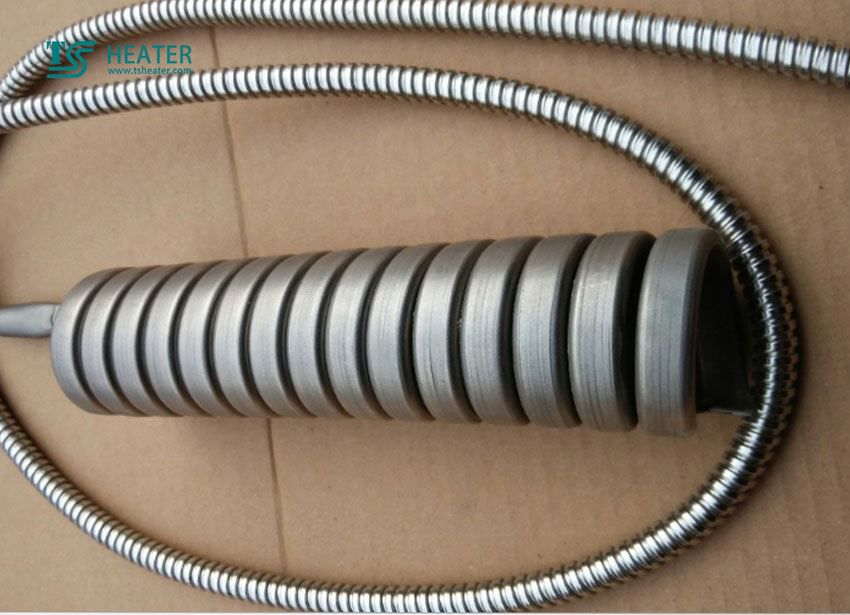

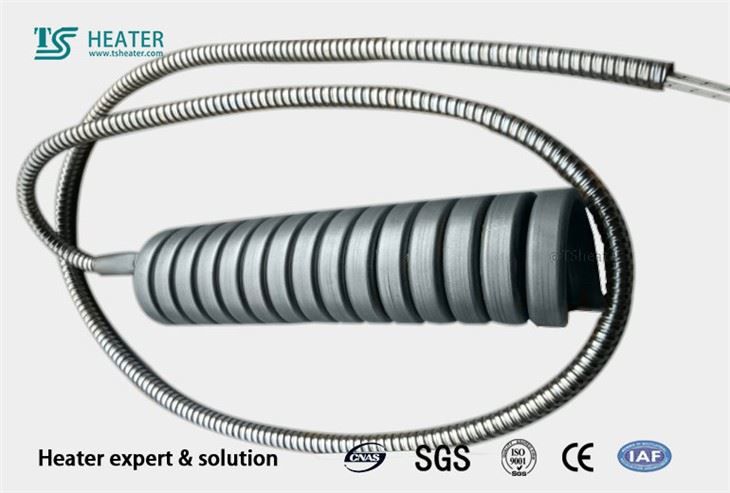

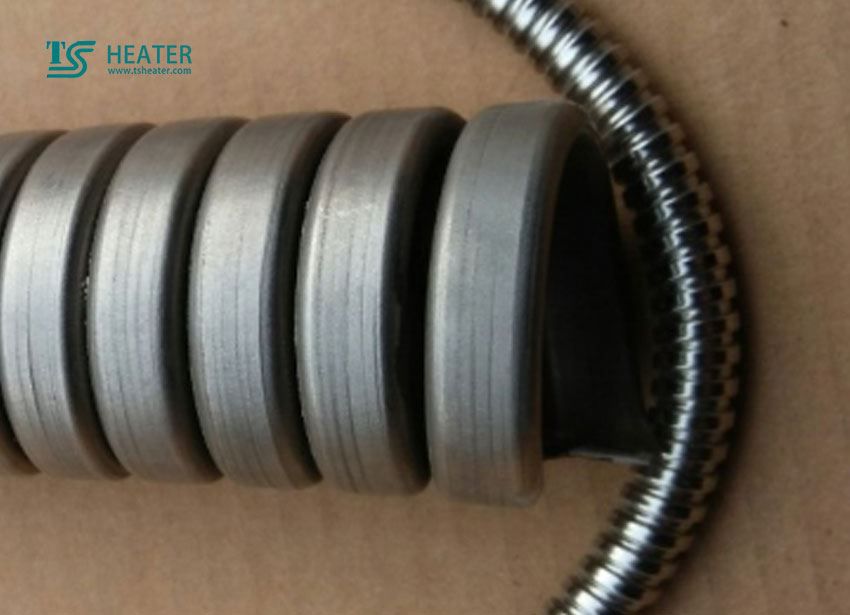

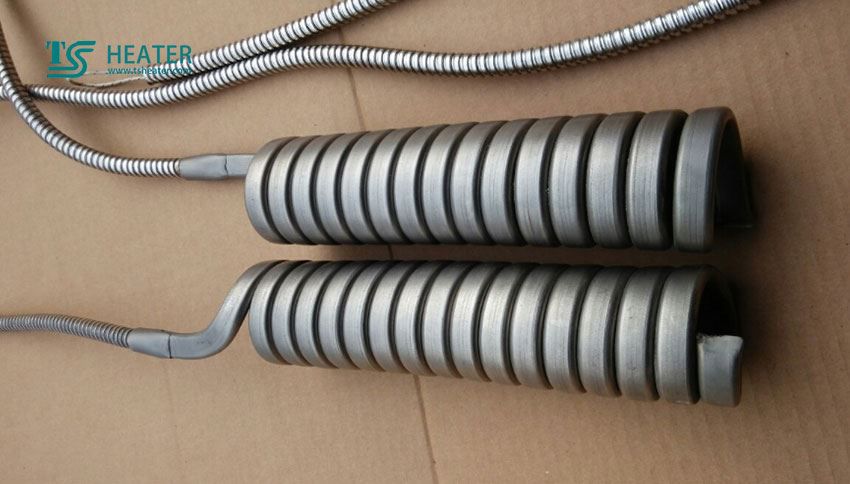

【 Introduction of flat coil heater 】
flat coil heater is non-standard, because of its advantages of flat tube structure, its heat dissipation effect is better, better life.
flat coil heater can be widely used in liquid heating, embedded card groove heating and dry heating, the most typical for rail melting, track gate melting, fryer, pavers and so on
1. Voltage and power: set according to the heating medium and the size of flat tube.
2. Flat tube specification (width * thickness) : Deviation range: ±0.3
A. 2 lead rods at one end: 13.5*5.5mm, 15*6mm;
B. Three lead rods at one end: 18*6.7mm, 26*6mm
3. Shape and size: it can be produced according to customers' samples or drawings
4. Tube material optional: stainless steel 304, 321, 316L, 310S
5. Internal structure optional :(refer to the style diagram below for details.)
A. Two lead-out rods with A single head
B. Two leading rods for each of the two heads
C. Three lead-out rods with a single head
D. Three leading rods for each of the two heads
5. Typical applications of flat coil heater: flat coil heater of paver, snow melting strip of switch, flat heating tube of fryer, etc
