heater for the fruit dryer

heater for the fruit dryer

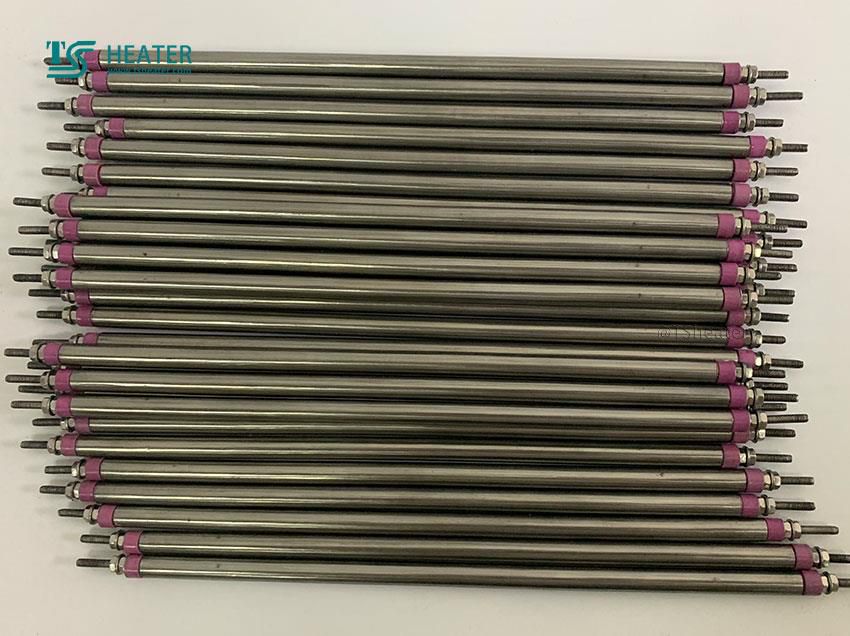

The electric heating tube used by fruit dryer drying can be made according to the customer's requirements, most of which are double-end straight bar type electric heating tube, both ends can be fixed by screw thread, the specific size, power can be customized.

Dryer drying electric heating tube

The working principle of the electric heating tube used by the fruit dryer drying machine is that when the electric current in the high temperature resistance wire passes through, the generated heat is transferred to the surface of the stainless steel tube through the modified oxidized powder, and then transmitted to the object to be heated.

This kind of structure is not only advanced, thermal efficiency is high, heating up is fast, and the heat is uniform, the product in the heating, the tube surface insulation is not electrified, safe and reliable use.

I. characteristics of stainless steel electric heating tube:

1. Pipe technology: welded pipe and seamless pipe

2. Voltage: 12-660v, power: designed according to heating medium and tube length;

3, resistance wire: nickel chromium alloy, iron chromium aluminum alloy;

4. Shape: straight bar type, U (W) type, fin type, screw flange type, abnormal type;

5, pipe diameter: 3 mm to 30 mm Φ, single tube length: 15 mm - 6000 mm, the temperature range of optional: 0-1000 ℃;

6. Pipe material: carbon steel, stainless steel, titanium pipe, imported material.

Ii. Application scope:

The electric heating tube used for drying fruit dryer has the advantages of light weight, convenient disassembly and installation, high heat conversion rate, environmental protection, energy saving and long life, and is often used to heat gas, solid and liquid.

It is used for heat preservation box, air duct, industrial furnace, drying equipment, mold, mechanical equipment parts and assembly line heating, casting, die head heating, water tank, oil barrel, solution tank, electrolytic tank heating.

Cold storage, pool, gate antifreeze frost
