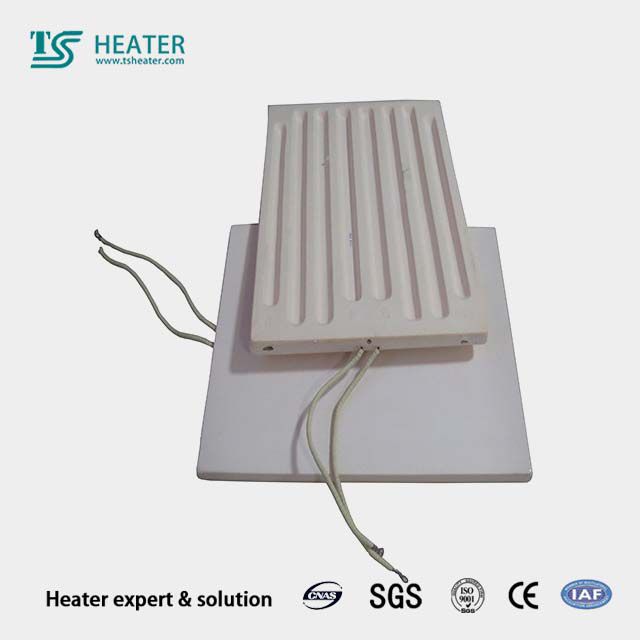

Flat Ceramic Heating Element

Flat Ceramic Heating Element

While the resistance heats up, it also obtains the strong infrared rays of the ceramic itself, which greatly improves the electrothermal conversion rate. The test shows that the electrothermal conversion rate can reach more than 99.6%.

Description

The flat ceramic heating element is a special ceramic.


Production process and advantages:

1: The ceramic insulating layer on the outer surface and the ceramic conductive layer in the middle is made by batching, molding, and firing.

2: The ceramic insulating layer and the ceramic conductive layer are the same ingredients.

3: The ingredients of the two are based on the ingredients of the ceramic body.

4: But the ceramic conductive layer adds the following additives by weight: conductive graphite 1-20% and silicon carbide 1-20%.

5: The ceramic conductive layer in the middle ensures good conductivity.

6: The good outer surface ceramic insulation layer ensures good insulation performance, safety, and reliability.

7: While the resistance heats up, it also obtains the strong infrared rays of the ceramic itself, which greatly improves the electrothermal conversion rate. The test shows that the electrothermal conversion rate can reach more than 99.6%.

8: The flat ceramic heating element is suitable for high, medium, and low voltages from 24 to 380 volts.

9: The heating temperature of The flat ceramic heating element is 30~500℃.



application:

The flat ceramic heating element has a wide range of applications and can be directly made into heating wall tiles, heating floor tiles, etc., or into heating elements.

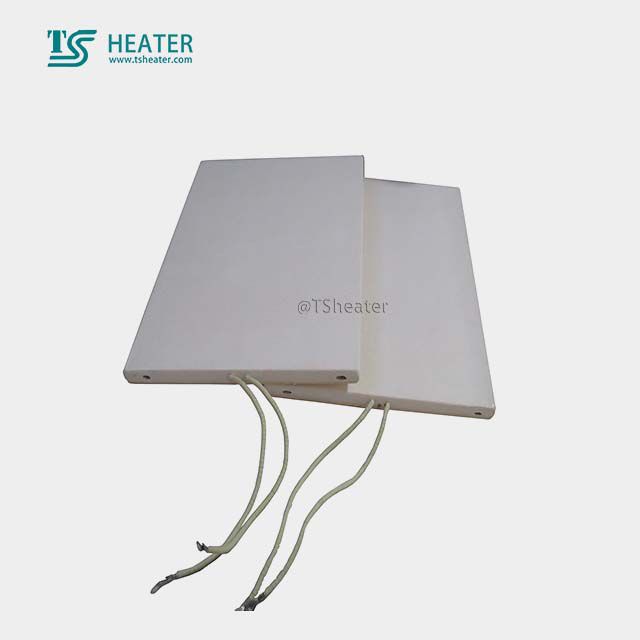

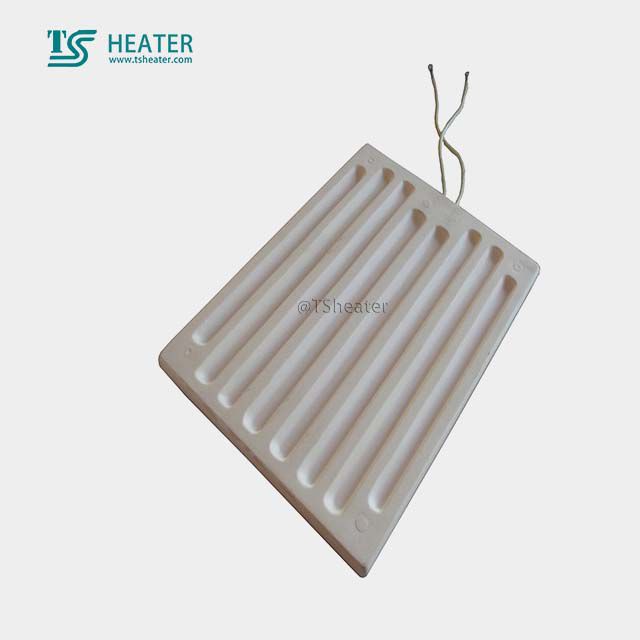

flat ceramic heating element (2)flat ceramic heating element (3)
