High Temperature Fiberglass Cable High temperature Fiberglass cablefor induction heater,GN-500-04-Zinc plated copper wire fire resistant electric wire and cable 300℃
High Temperature Fiberglass Cable
High temperature line, as the name suggests, is made of special materials of high temperature resistant line, high temperature resistant type, through special processing.
The main features are high temperature resistance, insulation, fire resistance, corrosion resistance, aging resistance, climate resistance, high strength, high modulus, anti-static, smooth appearance and other characteristics.
Define
The high temperature line is made of high temperature resistant and high strength type by special process.
The main features are high temperature resistance, insulation, fire resistance, corrosion resistance, aging resistance, climate resistance, high strength, high modulus, anti-static, smooth appearance and other characteristics.
classification
There are many kinds of high-temperature cables, such as fluoroplastic insulated high-temperature cables, silicone rubber insulated high-temperature cables, silicone rubber insulated braked wires, multi-core insulated high-temperature cables, mineral insulated fire-resistant cables and high-temperature electronic cables.
Teflon wire, Aircraft Wax wire, nylon sheath wire, Teflon high voltage wire, silicon rubber high voltage wire, mica high temperature wire.
Product charanteristic

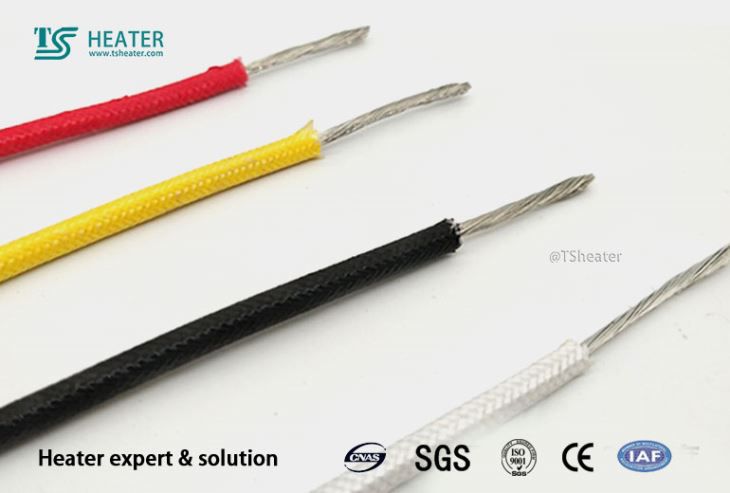

High Temperature Fiberglass Cable

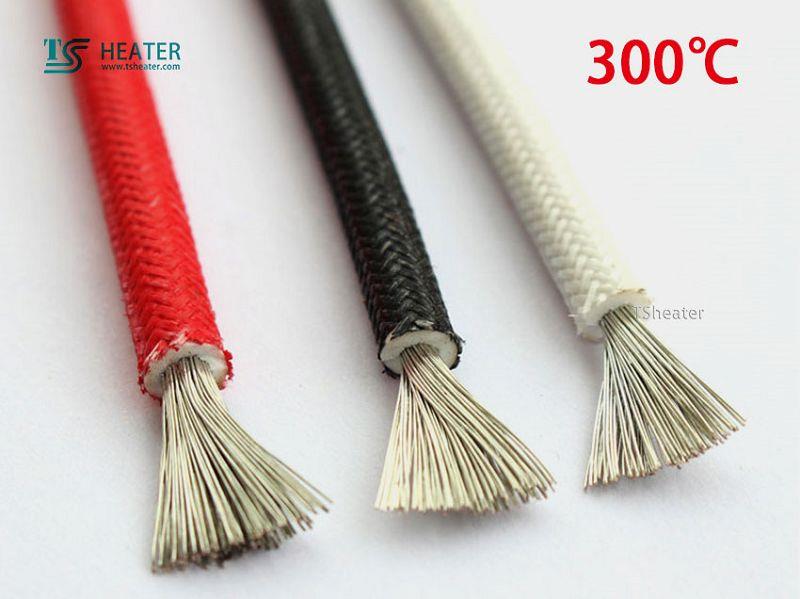

Zinc plated copper wire fire resistant electric wire and cable 300℃
Rate voltage:Below 5000W
Size:National standard 0.5/0.75//1.5/2/2.5/3/3.5/4/6/10/16/20/25...
Core material:Anaerobic pure copper wire

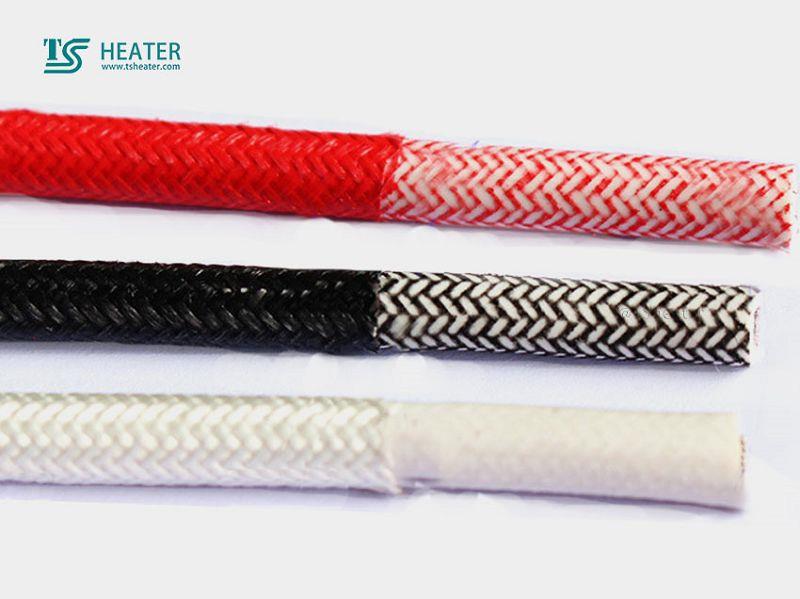

Insulation layer:fiberglass weave+silica gel
Installation conditions:fiberglass weave+silica gel
Rated temperature:0-300℃
The length of per roll:100meters
Its bendable,flame resistance and non-poisonous
High Temperature Fiberglass Cable
It is mainly used in heating pipes and is also Support customization, exterior color and thickness can also be customized according to customer requirements the most widely used electric heater wire at present.
Nominal | Conductor | Insulation | Outside diameter | DCR conductor | Packing length |
Mm*2 | mm | mm | mm | mm | m |
0.5 | 7*0.3 | 0.5 | 2.3±0.3 | 40.8 | 200 |
0.75 | 11*0.3 | 0.5 | 2.5±0.3 | 24.3 | 200 |
1 | 14*0.3 | 0.5 | 2.6±0.3 | 20 | 200 |
1.5 | 21*0.3 | 0.5 | 2.9±0.3 | 12.6 | 100 |
2 | 28*0.3 | 0.6 | 3.3±0.5 | 9.84 | 100 |
2.5 | 35*0.3 | 0.6 | 3.6±0.5 | 7.37 | 100 |
4 | 56*0.3 | 0.8 | 4.7±0.5 | 4.83 | 100 |
6 | 84*0.3 | 0.8 | 5.5±0.5 | 3.26 | 100 |
10 | 84*0.4 | 0.8 | 6.6±0.5 | 1.8 | 100 |
16 | 228*0.3 | 0.8 | 7.8±0.5 | 1.31 | 100 |
126*0.4 | 0.8 | 7.8±0.5 | 1.31 | 100 | |
25 | 196*0.4 | 0.8 | 9.5±0.5 | 0.758 | 100 |
361*0.3 | 0.8 | 9.5±0.5 | 0.758 | 100 | |
35 | 394*0.3 | 1 | 11.2±1.0 | 0.548 | 100 |
50 | 396*0.4 | 1.2 | 13.2±1.0 | 0.384 | 100 |
703*0.3 | 1.2 | 13.2±1.0 | 0.384 | 100 |
