High temperature plug, Ceramic Plug Connector, Porcelain Plug Socket is made of ceramic and cooper core, outside is made of metal aluminum protection shell or silicone rubber protection shell.High Temperature Plug

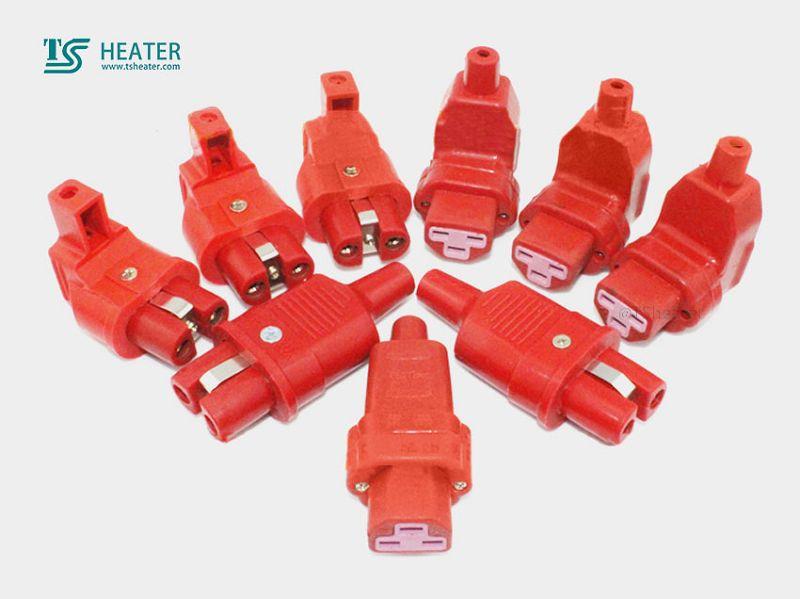

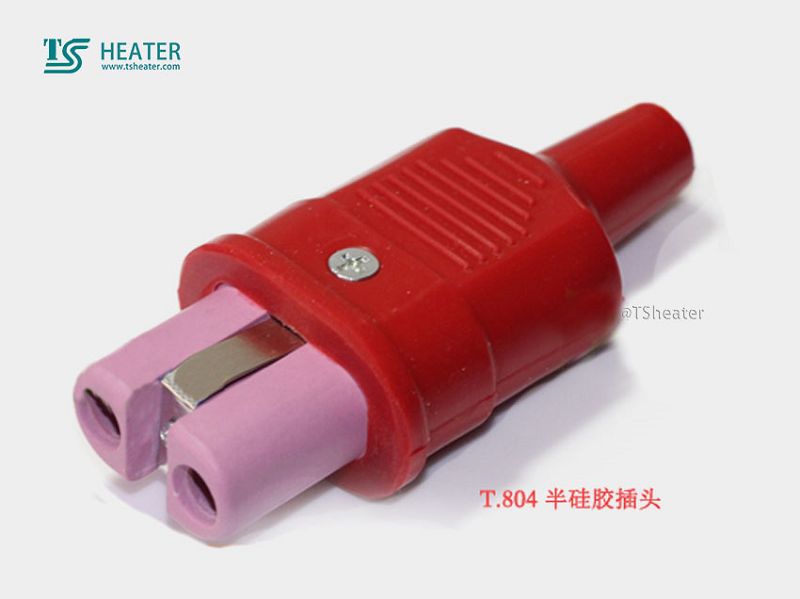

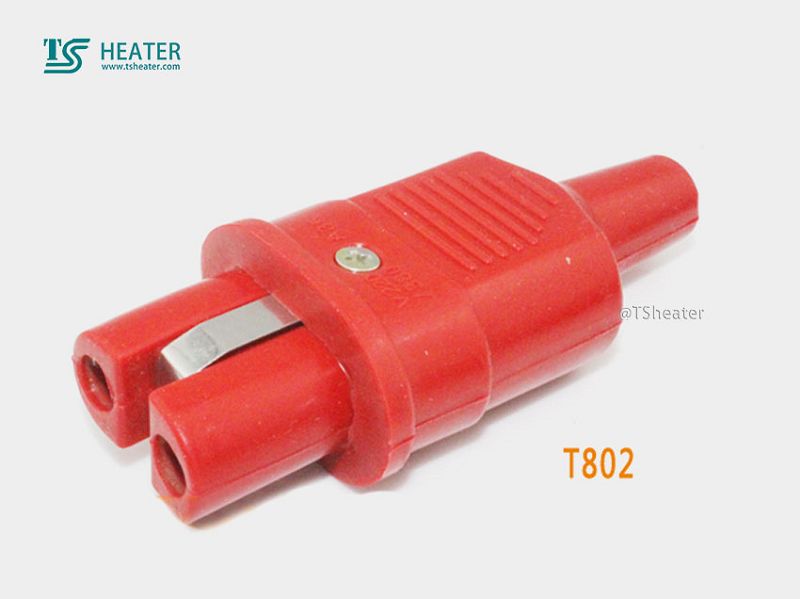

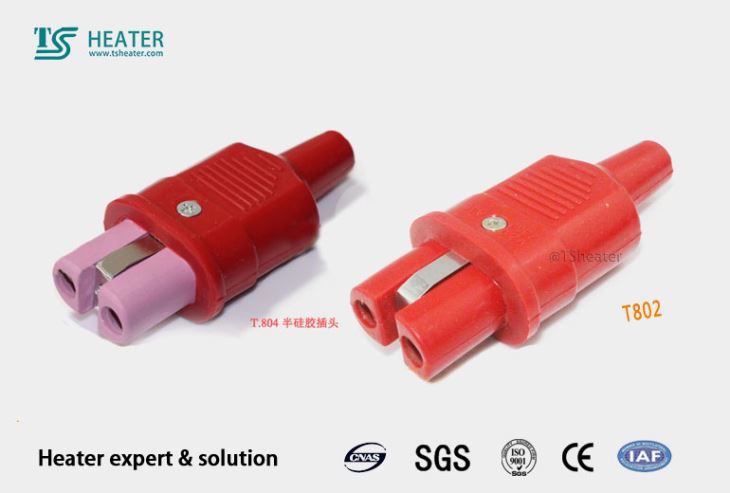

High temperature Silicone Rubber plug is made of copper core and ceramic, outside is made of silicone rubber protection shell.
High temperature plug, Ceramic Plug Connector, Porcelain Plug Socket is made of ceramic and cooper core, outside is made of metal aluminum protection shell or silicone rubber protection shell.
Applications:
High Temperature Plug
Widely used in various industries assort such as plastics machinery, food machinery, chemical and industry and various high temperature plug connection
A.Silicon rubber /silastic shell can resist below 300°C and resist high voltage (220-600V)
25A can resist acid, Alkali and smash
Specification of jack: ¢5, ¢6

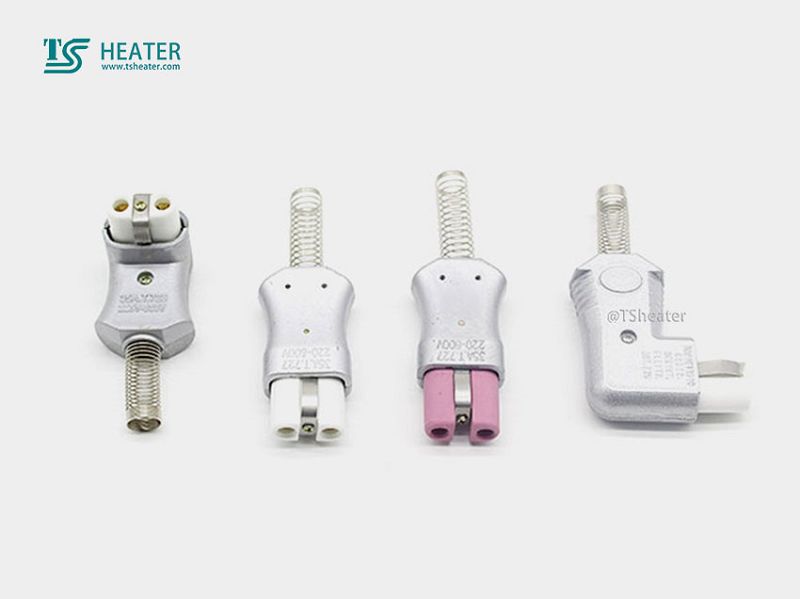

B.Special aluminum alloy shell is introduced overseas data and produced
High temperature resistance, below 500°C
High voltage resistance (220-600V)
Long use life
Specification of jack: ¢5, ¢6
Characteristics:
High Temperature Plug
Material Alloy aluminum shell
Voltage 220V - 600V
Current Amp 3A - 35A
Cooper Hole 6mm
Plug heat resistance Under 500°C
lead wire heat under 300°C working environment
Electrical plug connectors will be paked into a individual plastic bag for the purpose of moistureproof. then put the electrical plug connectors into the carton in order layer by layer.
Shipping Information:
FOB Port:Guanzhou or Shanghai
Lead Time:2 - 7 days
HTS Code:8536.69.00 00
Dimensions per Unit:8 × 4 × 1 Centimeters
Weight per Unit:0.18 Kilograms
Units per Export Carton:500
Export Carton Dimensions L/W/H:40 × 20 × 20 Centimeters
Export Carton Weight:1.5 Kilograms
Main Export Markets:
Asia
Australasia
Central/South America
Eastern Europe
Mid East/Africa
North America
Western Europe
