MgO Ceramic Tube Application: machinery, electronics, chemical, petroleum, etc. Specific use: electric ceramic substrate, plunger, seal ring, etc. We are a precision ceramic product development, design, molding, sintering, production, sales as one of the company. After 10 years of development, we have...

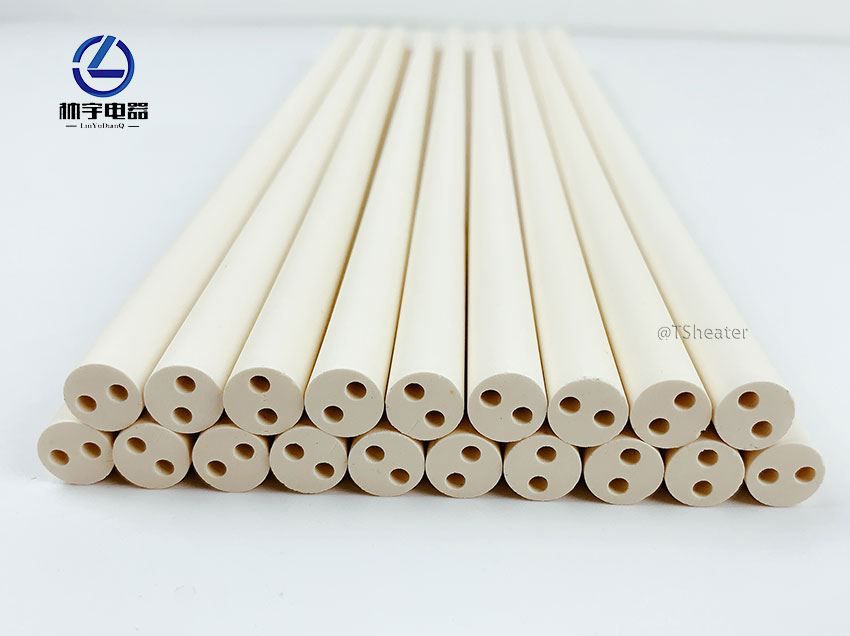

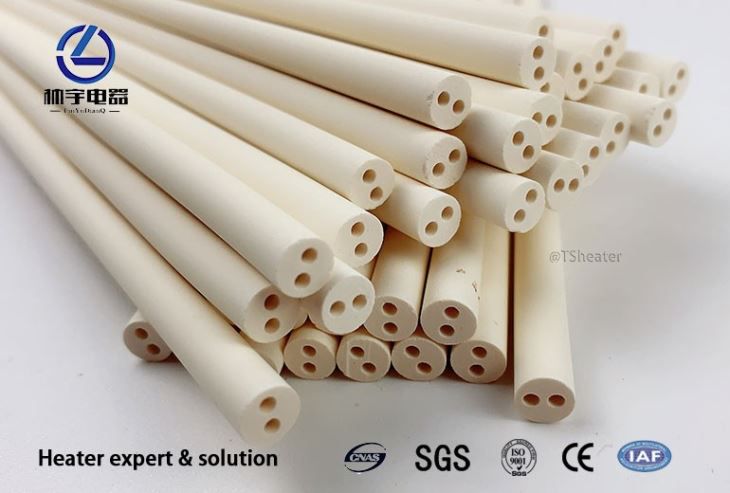

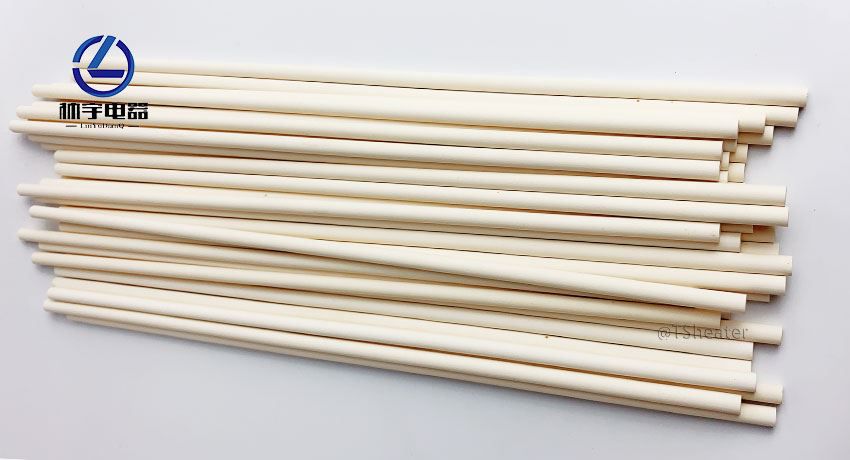

MgO Ceramic Tube
| Item | Unit | Typical Values |
| Physical Properties | ||
| Color | white/lvory | |
| Density | g/cm3 | 3.85 |
| Alumina Content | % | 99% |
| Gas permeability | 0 | |
| Water Absorption | 0 | |
| Mecanical Properties | ||
| MONS' Hardness | 82 | |
| Vickers Haedness(Hv50) | Gpa(Kg/mm2) | 15.7(1600) |
| Flecural Strength(20°) | Mpa | 330 |
| Compressive strength(20°) | Mpa | 2000 |
| Fracture Toughness(20°C) | MPam1/2 | 4 |
| Thermal Properties | W(m.K) | 27.5 ° |
| Thermal Expansion Coefficient | 10-6/°C | 7.6 |
| Thermal Shock Resistance | △T°C | 200° |
| Maximum Use Temperature | °C | 1650 |
Application: machinery, electronics, chemical, petroleum, etc.
Specific use: electric ceramic substrate, plunger, seal ring, etc.
We are a precision ceramic product development, design, molding, sintering, production, sales as one of the company.
MgO Ceramic Tube
After 10 years of development, we have established cooperative relations with more than 2,000 customers and more than 60 universities.
The factory covers an area of 2000 square meters, with 50 employees and an annual output value of nearly 20 million.
MgO Ceramic Tube
We have high visibility and good reputation in the industry.
Our products include ceramic rods, tubes, plates, blocks and industrial precision parts.
We have a full range of high precision equipment from ceramic forming, sintering to precision machining.
We sincerely hope to cooperate with customers at home and abroad.
MgO Ceramic Tube
