MI Thermocouple Cable Mineral Insulated Thermocouple Cable,Is it used to insulate the thermocouple wires from each other and from the metal sheath around them,Fast thermal response, flexible, long service life, good air tightness, narrow installation pipe, flexible use. Mainly used for high demand thermocouple production

Description

Mineral Insulated Thermocouple Cable,Is it used to insulate the thermocouple wires from each other and from the metal sheath around them MI Thermocouple Cable


Description

MI Thermocouple Cable

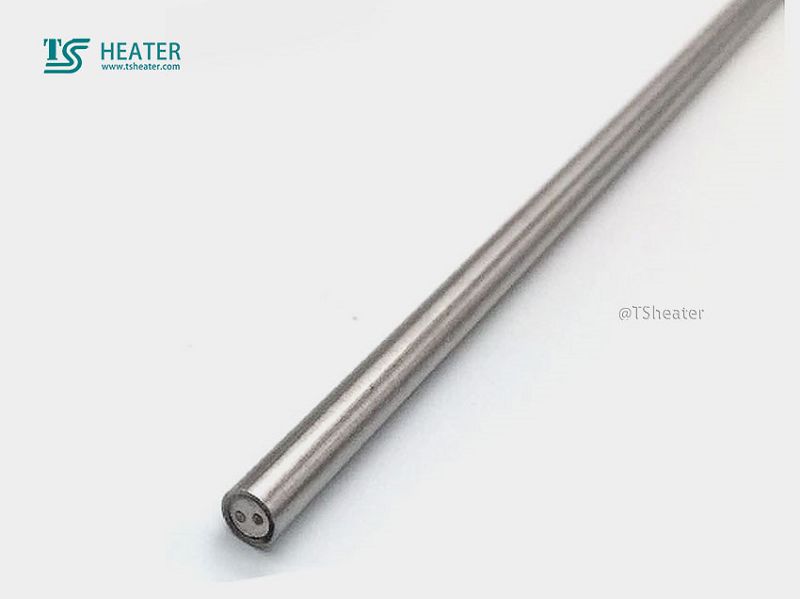

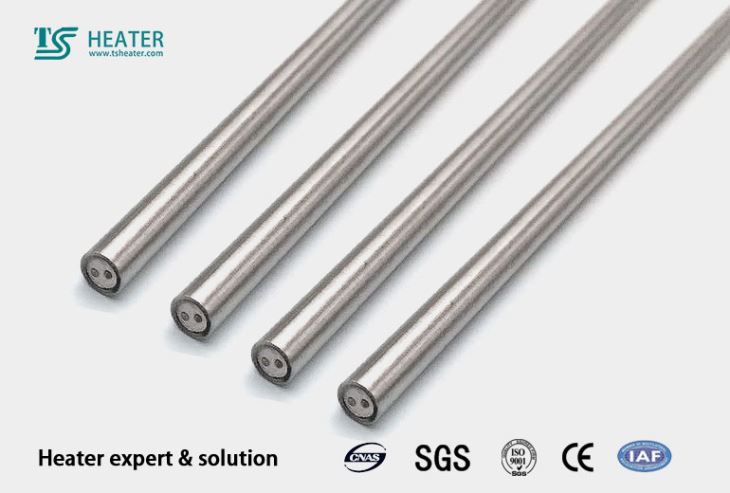

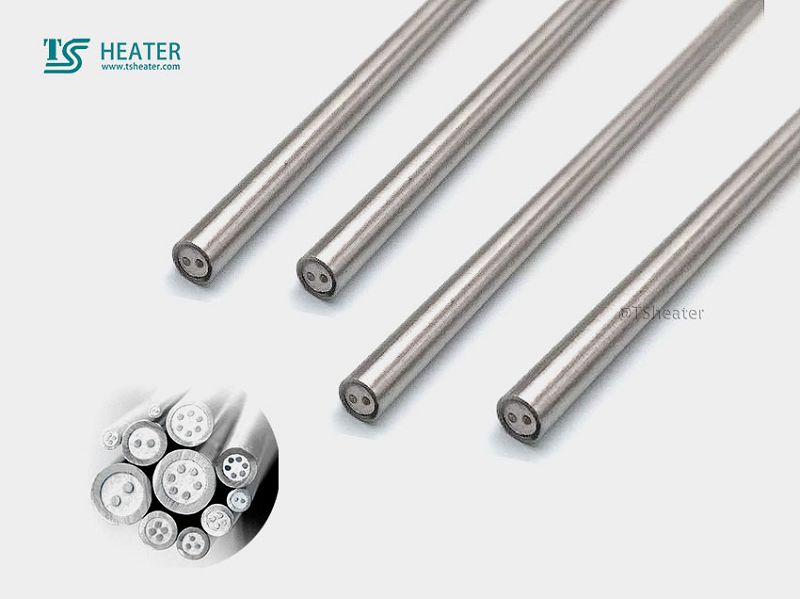

Mineral insulated thermocouple cable
Temperature range: 200-1300
MI cable: outer diameter 3.0, 3.2, 4.0, 4.8, 5.0, 6.0, 6.4, 8.0mm
Sheath material :Inconel 600, SS316, SS304, SS321.
Available in copper or nicel conductors.
Accuracy: Class 1, 2

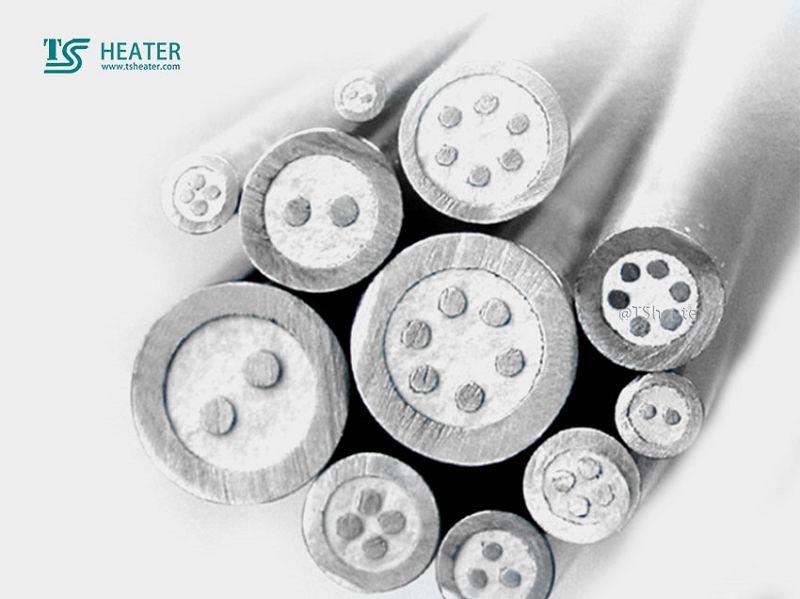

Wire: 2,3, 4 or 6 cores

Electrical characteristics:

MI Thermocouple Cable

Resistance value allowance :±10%
Dielectric properties: heating cable voltage resistance :1200V AC/1min
Insulation resistance: the final product testing: 100 m Ω / 500 v dc
Sheath continuity: insulation resistance shall be tested at least 50M/500VDC after all heating cables are immersed in water for 12 hours.
99.6% high purity MgO insulation

Thermocouple Cable - MI Cable

China MI thermocouple cable

Type K J T E N Mineral Insulated Thermocouple

China Type J Mi Thermocouple Cable

Type T Mineral Insulated Thermocouple Cable

China J Type Thermocouple Compensation Wire


Delivery & Enquiries:

Most items are available for delivery in 3 to 7 working days. However, Ts heater do offer additional emergency services for customers who are in a breakdown situation. This includes a 48hr services on Mica products, Cartridge Heaters and Ceramic Knuckle Heaters. For all enquires please contact a member of our sales team who will be happy to assist.

shipments

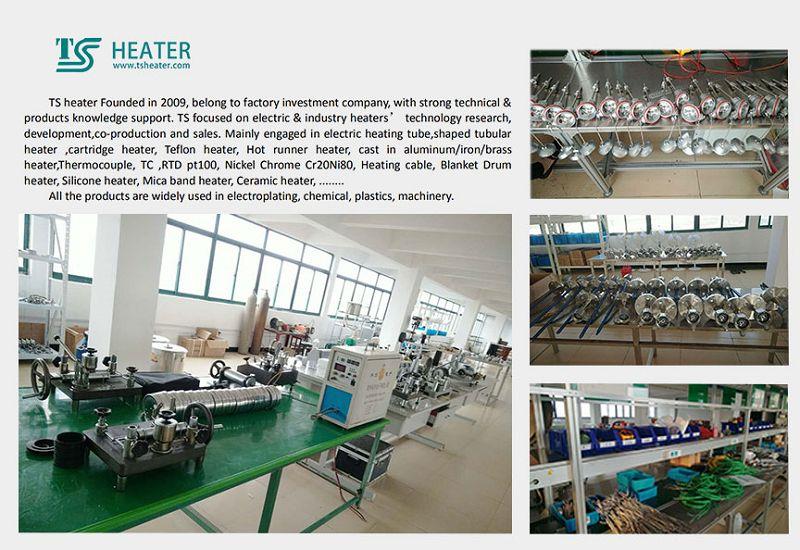

TS heater

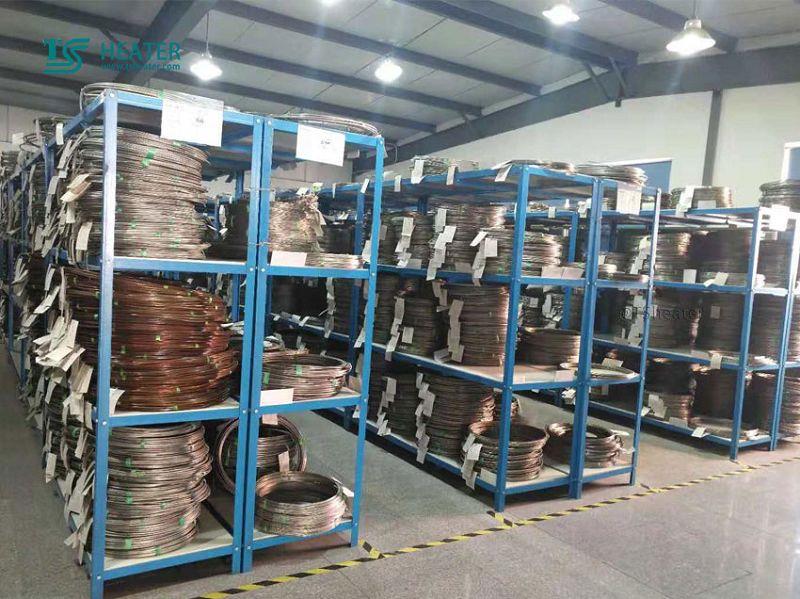

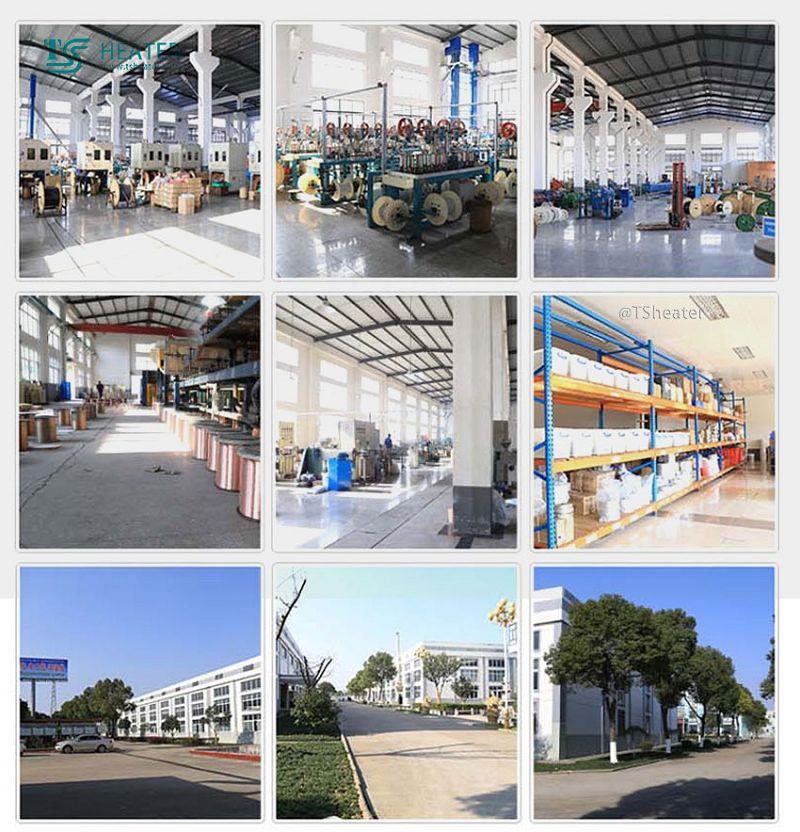

ts heater factory
