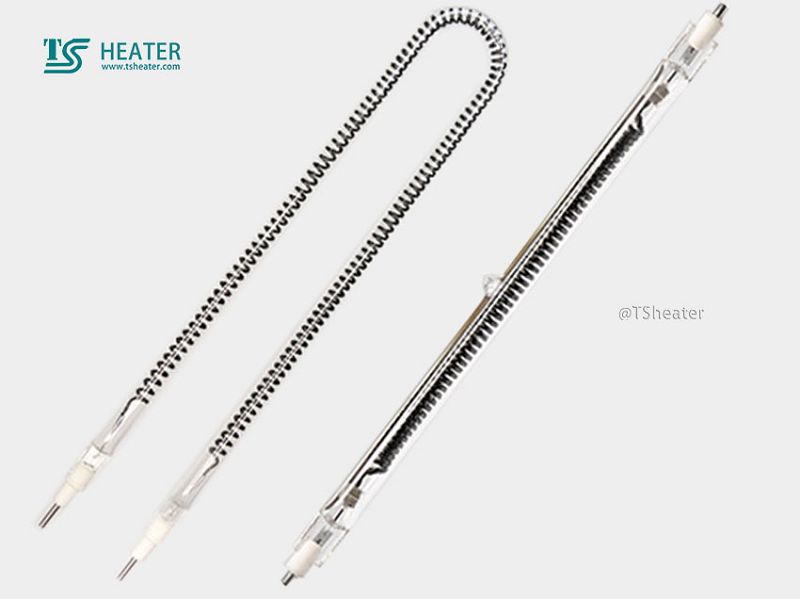

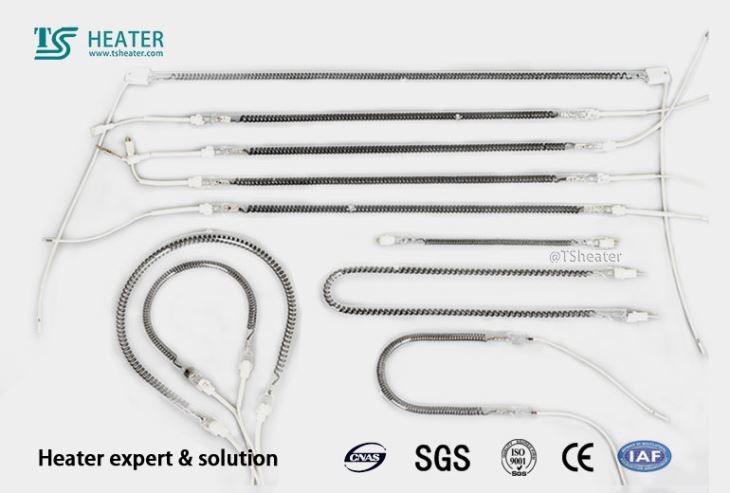

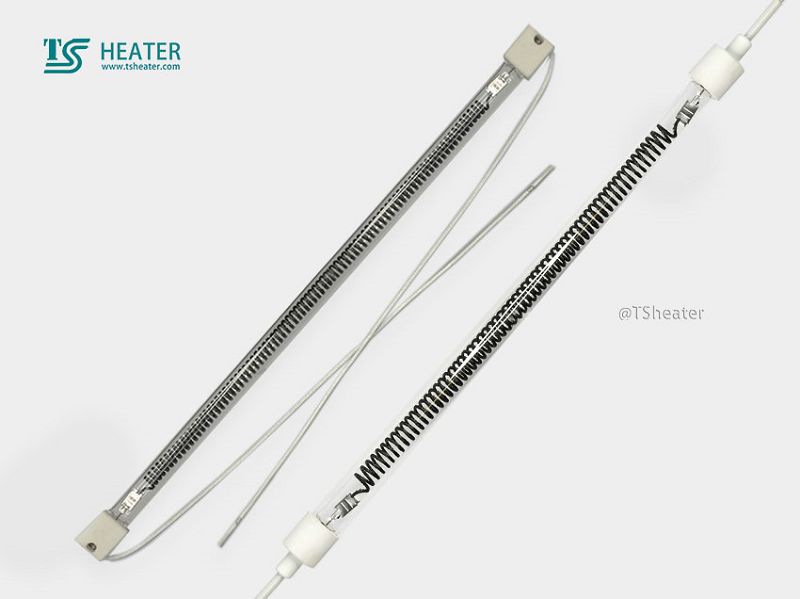

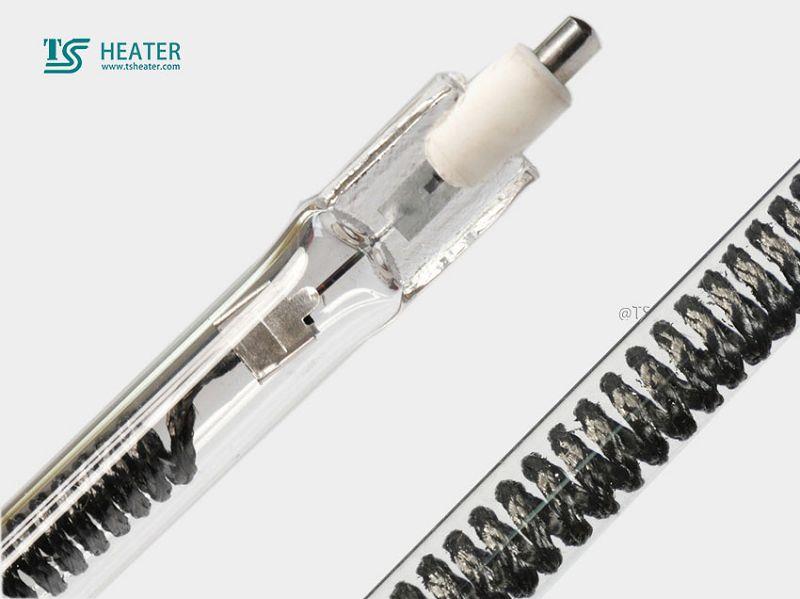

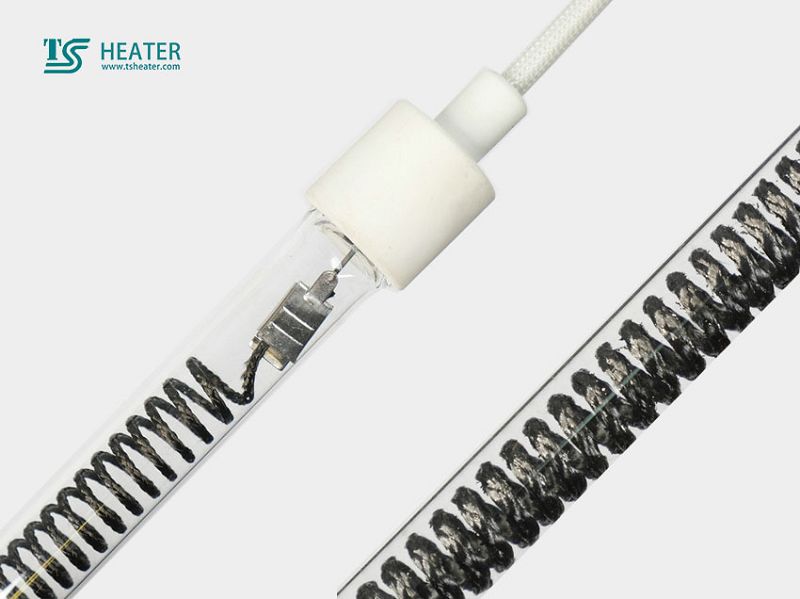

Quartz Glass Heater

Quartz glass heater utilize a low-mass tungsten filament that is incased in a special blend of inert gasses. This provides a very high energy source capable of responding instantly to voltage changes, allowing for precise temperature control for a variety of applications.

· Glass Tube:99.9% Pure Fused Silica Quartz Sealed

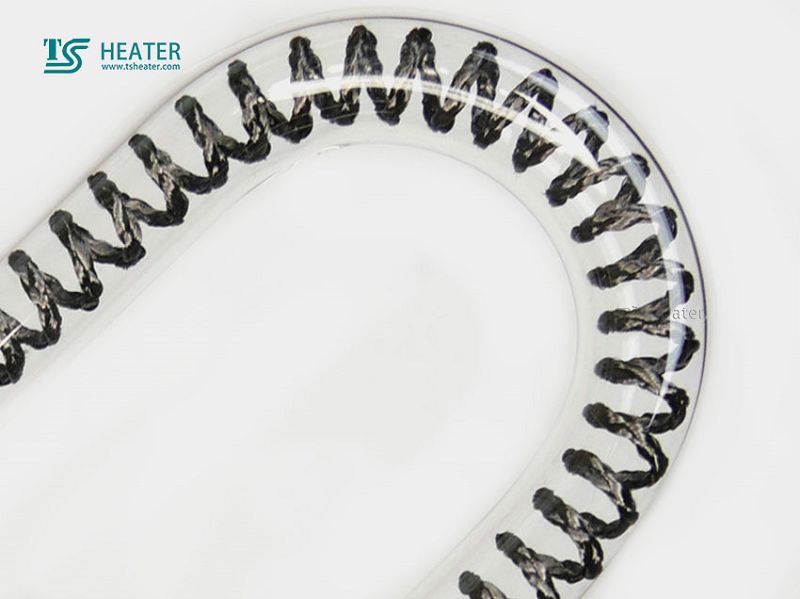

· Filament Material:Tungsten
· Filament Temperature:1800 - 2400C℃(3300 - 4400F)
· Peak Wavelength:1.0 - 1.4 Um

Technical parameters: Quartz Glass Heater
We customize the lamps for you, normally 7 days for making.
Length :100mm-3000mm.
Power :200w- 6000w
Voltage: 120v- 480v
Diameter :10mm-20mm / 11x23mm /15x33mm
Reflector: Gold reflection / white ceramic reflector.
HZ: 50-60 HZ
Electricity saving ratio: 30%
Infrared normal direction radiant ratio: Over 94%
Electric heat transformation ratio: Over 98%
Highest heat temperature endured: 1100C
Surface temperature: 500-900C
Continuous servicing hour: Over 5, 000H Quartz Glass Heater

After-sales Services

Warranty: 6-month limited product warranty.
We will customize new heaters if there is any break during shipment or working time. Normally the work life is 5000 hours.

Advantages
Quartz glass infrared emitter frequently prove superior to conventional heating sources such as warm air,steam,ceramic,gas or metal emitters,because they transfer large amounts of energy very quickly and can be precisely matched to the product and the manufacturing step -the ideal heating process.
-Infrared radiation requires neither contact nor intermediate transfer medium
-Quartz glass infrared emitters are precisely matched to the materials to be heated
-Fast response times allow controllable heat
-Heat is applied precisely where and only for so long as it is required
Compared for example to warm air heating ,this often means less energy consumption,higher line speed,a smaller footprint and better result .
