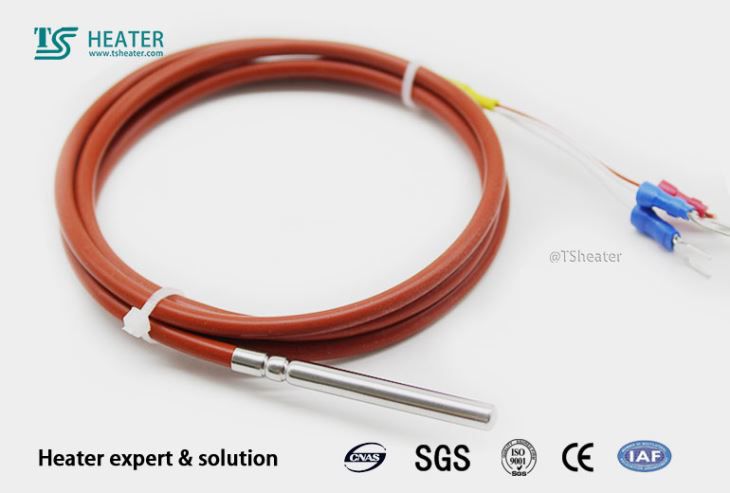

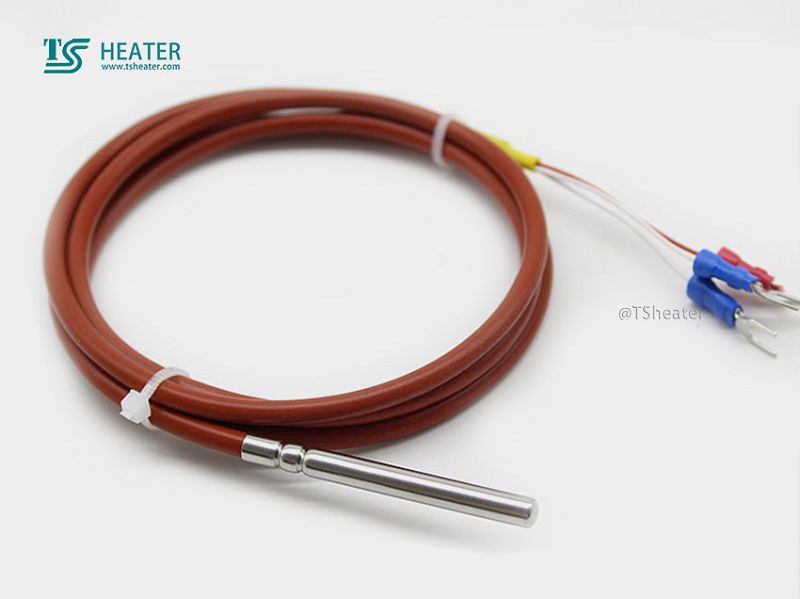

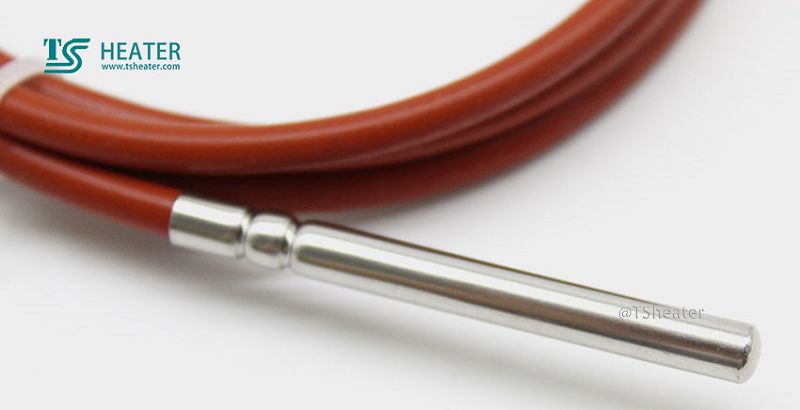

RTD PT100 is suitable for the measurement of liquids and gases across a wide temperature range of -50 to +300°C and the 3 wire Class sensor gives excellent accuracy across the full measuring range.The lead wire is usually copper conductor or silver conductor RTD PT100
RTD PT100 is suitable for the measurement of liquids and gases across a wide temperature range of -50 to +300°C and the 3 wire Class sensor gives excellent accuracy across the full measuring range.The lead wire is usually copper conductor or silver conductor, and the insulation material is usually magnesium oxide.
Resistance temperature detector is a kind of temperature sensor, which contains a resistance that changes with the change of temperature.They have been used for many years in temperature measurements in laboratory and industrial processes and are known for their accuracy, repeatability and stability.
Specifications:
RTD PT100
Accuracy：Class A. +/-0.15 ºC at 0.0 ºC
Alpha： 0.00385
Probe dimensions：customized
Probe material：304 Stainless steel

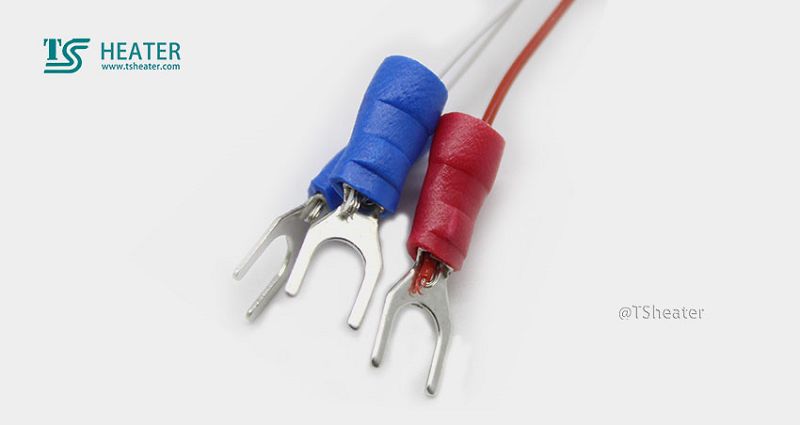

Cable:Three wires.
Maximum working temperature：< 300 ºC (600 ºF)
Special functions:
RTD PT100
Spring loaded design, in contact with thermowells.
Can be used for a variety of connections and sheath diameter, non - bending sheath.
Terminals: aluminium head with threaded cover and chain, different types of terminals.
The end of the element is a nickel-plated brass terminal mounted on a high purity ceramic terminal block.
Single/double cable inlet and cable gland.
