Stainless Steel Immersion Tubular Heater

basic product info:

Product Name: Stainless Steel Immersion Tubular Heater

Material: SUS201/SUS304/Copper

Custom processing: Yes

Sealing material: silica gel

Power: 12KW (1-12KW spot, other power can be customized)

Main use: liquid heating

Product certification: ISO9001

Pipe diameter: 16mm

Features of Stainless Steel Immersion Tubular Heater:

1: The connection port and line of the pipe are sealed with silicone, which can be directly put into the water, with high safety and no leakage.

2: The overall dimensions of the heating tube: the diameter of the heating tube is 12 mm, and the wire length is 1.2 meters. If you need to extend it, please contact customer service.

3: Silicone sealing head of Stainless Steel Immersion Tubular Heater: The plastic silicone sealing head is formed by compression molding.

4: Material of Stainless Steel Immersion Tubular Heater: The heating tube is made of stainless steel or copper.

Application of Stainless Steel Immersion Tubular Heater:

1. Liquid heating, water tank heating

2. Heating by boiling water furnace, direct heating for disinfection and drinking water,

3. Boil hot water for bathing in winter,

4. Aquaculture

5. Self-professed boiler

6. Industrial liquid heating

Common specifications

1: 1000W/220V, 380V, tube length 250mm, weight 0.35kg

2: 2000W/220V, 380V, tube length 290mm, weight 0.45kg

3: 3000W/220V, 380V, tube length 340mm, weight 0.65kg

4: 4000W/220V, 380V, tube length 390mm, weight 0.75kg

note:

1. The voltage can be customized,

2. Do not dehydrate and dry,

3. If the tube body has blackened, swelled, burned, etc., it is a dry burning phenomenon

4. If the water quality is not good and the scale is serious, the pipe body needs to be cleaned frequently

5: Remember to use the heating receptor after power off

6: The equipment needs a grounding wire and a leakage protector is installed

7: After using the submersible heating tube, it is best to wipe it dry.

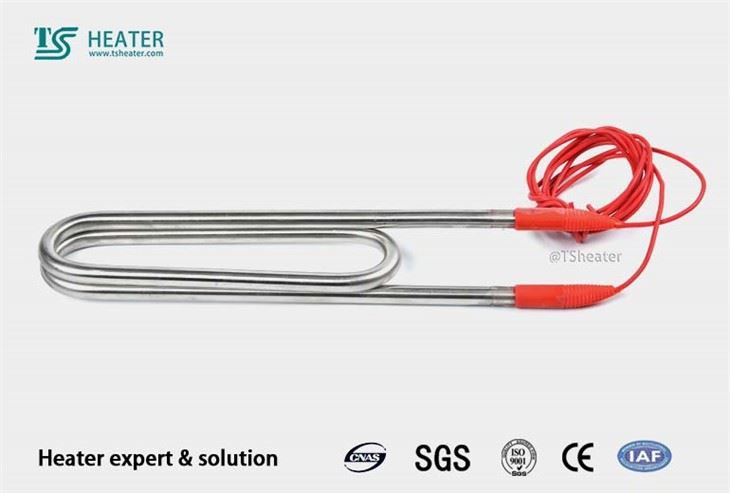

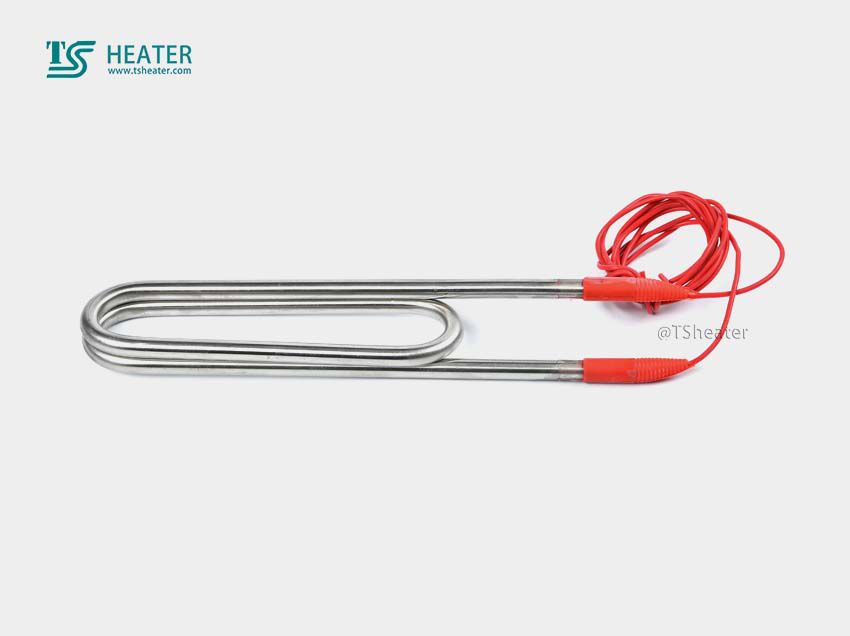

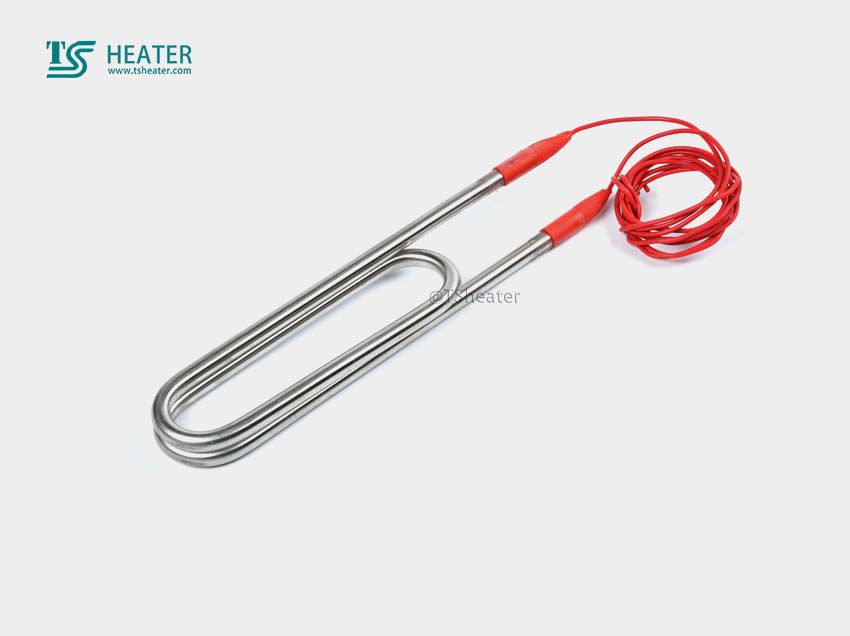

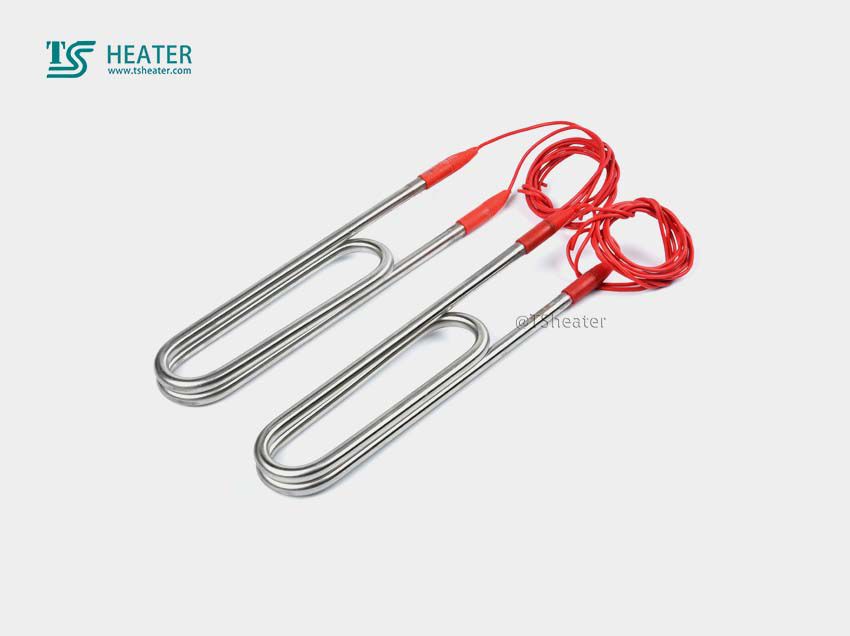

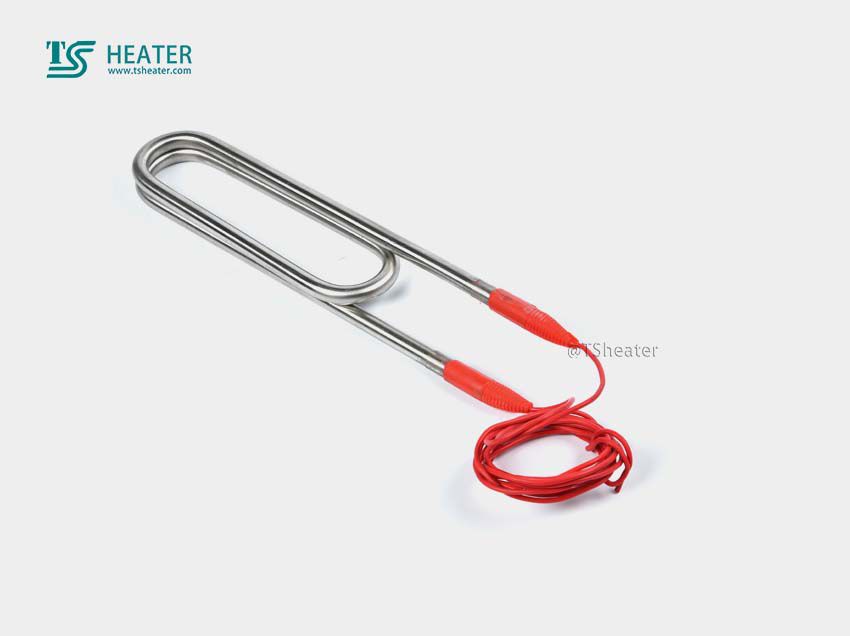

Product display:
