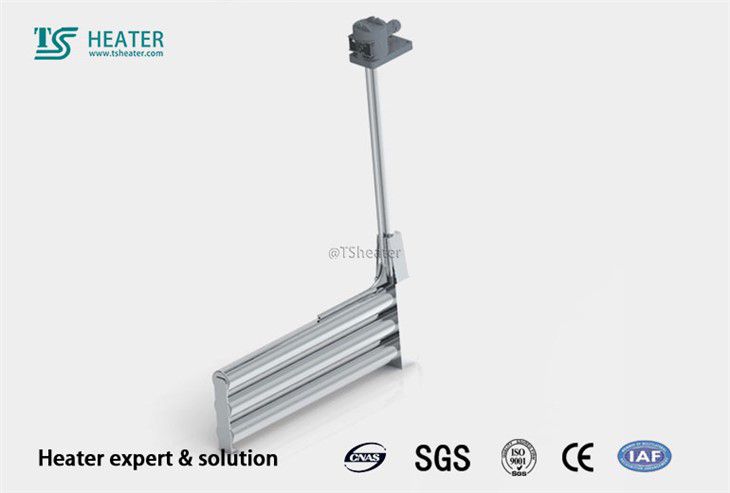

Submersible Oil Heater,The surface power of the heating tube is 5.6w/cm2, which is suitable for liquid heating with good fluidity, less solid deposition and no crystallization of the liquid on the surface of the electric heater after cooling.
1. Titanium, zirconium, SUS304, SUS316 stainless steel tubes are used.
2. Design the surface power of the heating tube and determine the pipe diameter according to the installation location, chemical liquid properties and solid substance deposition characteristics in the liquid. Common specifications for pipe diameter are Ø 11 mm, 17 mm, 25 mm, Ø Ø Ø 30 mm, Ø 32 mm and 45 mm, Ø Ø 50 mm.
3. Submersible Oil Heater, liquid heating, heating tube surface power 5.6 W/cm2, suitable for liquid and solid deposit less, not in the heater surface cooled liquid crystalline liquid heating.
4. 45 mm diameter Ø series of products with low power design surface, good durability, especially for horizontal heating circuit board.
5. The voltage is 120V single-phase, 220V, 380V, 220V three-phase, 380V three-phase, power from 0.5kW to 140KW.
6. All heaters can be equipped with overtemperature protection switch or temperature sensing probe.
7. All heaters adopt international inspection standards to ensure safe electrical performance
Applicable environment: all kinds of electroplating corrosion liquid, due to the difference in steel selection.
Specification design: you can refer to the list of common specifications, or according to customer requirements to design various shapes, specifications, processes, etc.
For details, please consult our engineers and technicians
