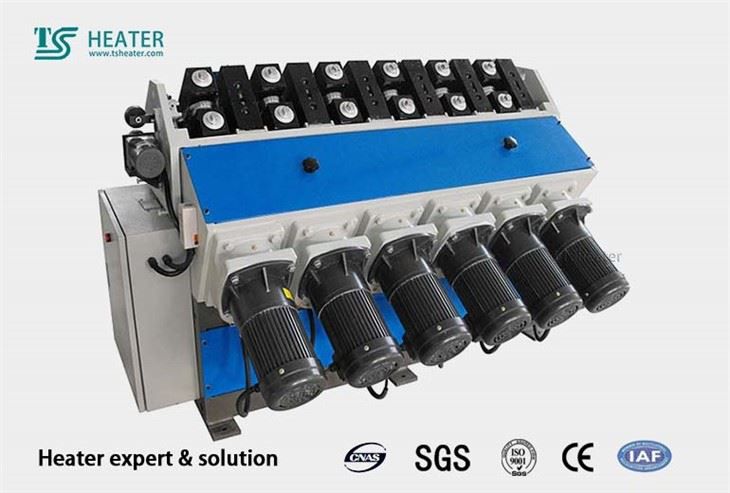

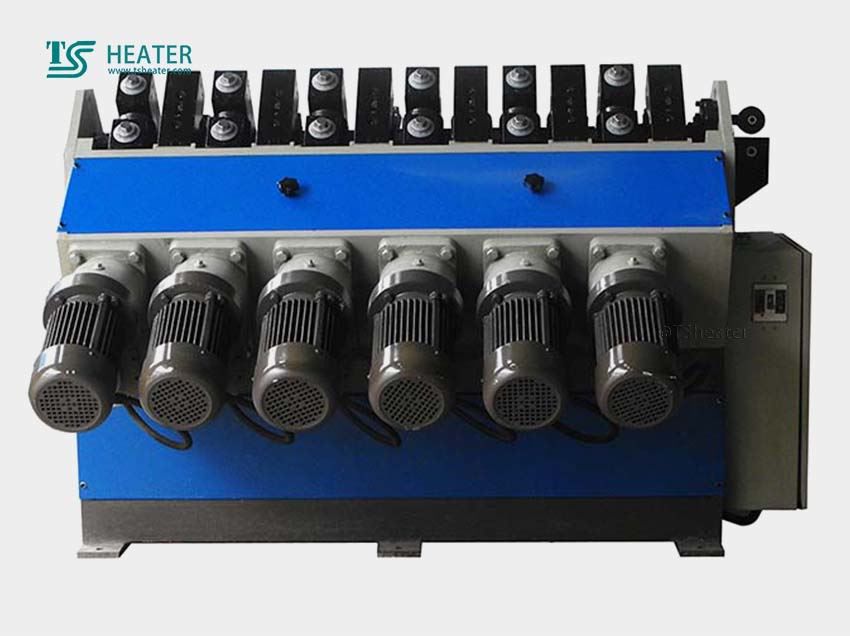

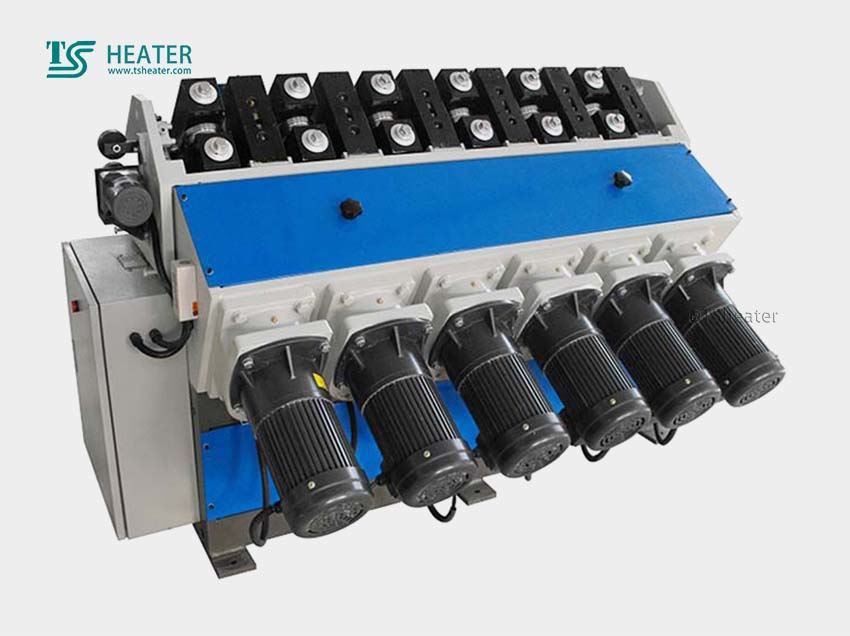

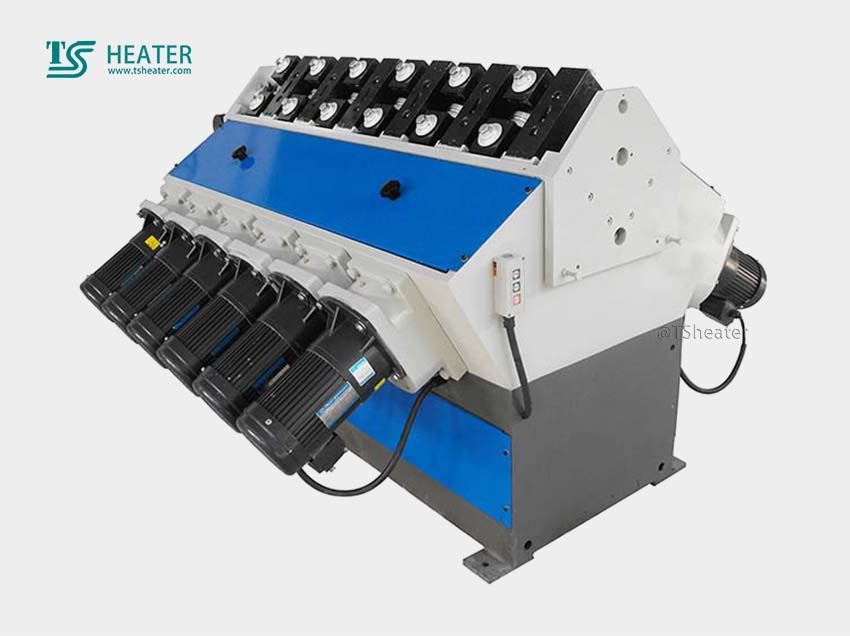

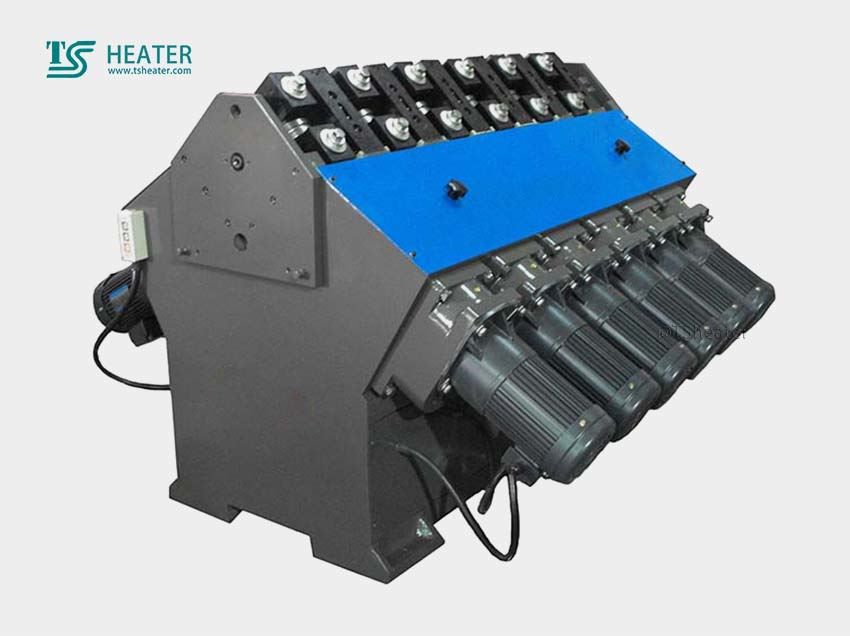

Tube Reducing Machine

The tube reducing machine is a very high-quality product produced by our company. His error rate is very low. High efficiency, the processing time is reduced a lot.

Product model: SGB-I-12 section rolling type tube shrinking machine

Product size: 2000(L)x 1800(W)x 1200(H)mm, 2500-3500kg

The purpose of the tube reducing machine: The shrinking tube of the circular electric heating tube reduces the diameter and increases the density of magnesium oxide powder in the electric heating tube after powder filling.

The scope of application of tube reducing machine: double-end electric heating tube, single-end electric heating tube, etc.

Equipment performance of tube reducing machine:

a) Single motor power: 1.1KW

b) Pipe material: copper, aluminum, iron, SUS, etc.

c) Tube shape: round tube, square tube, oval tube

d) Speed of shrinking tube: uniform or variable speed

e) With the straightening device, the surface is smooth, the roundness is good, and the heating wire is evenly stretched inside the element

f) The shrinking tube has high efficiency and the processing time is greatly reduced, which is suitable for mass production of electric heating tube shrinking tubes

g) Can be matched with tungsten carbide cemented carbide/high-speed steel/steel molds

h) It can be used with the automatic feeder produced by our company to improve production efficiency

i) It can also be used in conjunction with the rolling mechanism of the tube shrinking machine produced by our company

j) The machine body is a cast iron frame and cannot be disassembled. Our company also has a steel body for customers to choose from according to actual needs.

Technical parameters of tube reducing machine
