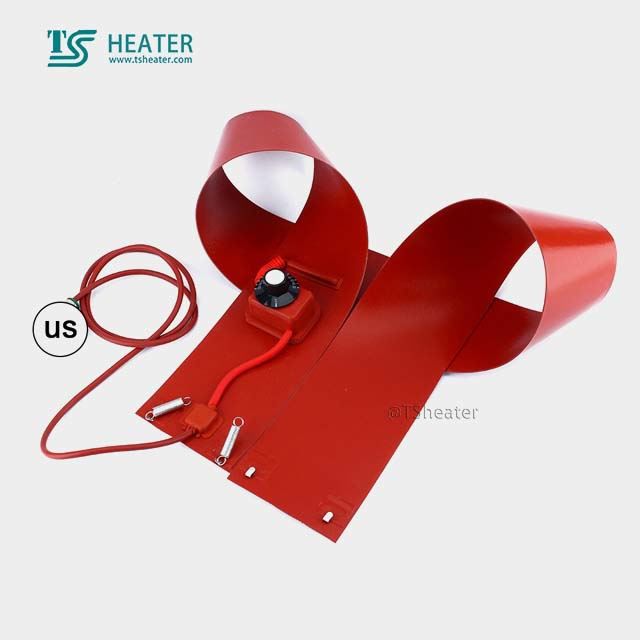

A brisk heat heating blanket is not easy to age and has a safe life span of up to ten years. Our factory can produce any shape.
Technical Parameters
Maximum temperature resistance of insulating material: 250℃
Maximum operating temperature: 200℃
Insulation resistance: ≥100MΩ
Compressive strength: 1500v/5s
Power deviation: ±5%
Withstand voltage/1min: 2500V
Power density range: 0.05-1.2W/cm square
Operating temperature range: -40°—150°
Temperature deviation: plus or minus 3-5 degrees
Applicable environment
1. Heating, mixing, and heat preservation of pipes, tanks, towers, and tanks of industrial equipment in dry and non-explosive gas occasions. A brisk heat heating blanket can be directly wound on the surface of the heated part;
2. Freezing protection and auxiliary heating of air-conditioning compressors, motors, submersible pumps, and other equipment;
3. Medical equipment such as blood analyzers, test tube heaters, medical and health care shapers, body shaping and slimming belts to compensate for heat, etc.
Order guide
1: All brisk heat heating blankets are customized products, not in stock, but can be produced quickly;
2: The new product has a smell, it is normal, just leave it for a few days!
Specification explanation:
1: Our factory can produce any shape, and can also process various shapes according to drawings; the finished product cannot be cut!
2: Size requirements: length * width (mm), the default thickness is 1.5mm, the special thickness can be customized!
3: Operating voltage: 36-380V, etc.
4: Large size uses high voltage, small size uses low voltage, which can be customized according to customer needs;
5: The power of a brisk heat heating blanket: customized according to requirements, 0.05-1W/cm square;
Precautions:
1. Do not pull the power cord forcibly;
2. If equipped with a thermostat, do not install it in a place with water, and do not use the thermostat and the heating element separately;
3.a brisk heat heating blanket has no forced shutdown function, please cut off the power if you don't use it;
4. Do not use it in a liquid, please use it in a dry indoor environment, although there is static electricity, the function will not be affected;
5. Do not use in an environment prone to fire or explosion.
