The silicone heating blanket is a particularly soft heating belt composed of high-quality nickel-chromium alloy wire and insulating silicone rubber. Our factory can manufacture any specifications of silicone heating blanket.
The silicone heating blanket is a particularly soft heating belt composed of high-quality nickel-chromium alloy wire and insulating silicone rubber.
Our factory can manufacture any specifications of silicone heating blanket.
Size thickness:
Thickness: conventional 1.6-1.8mm, can be thicker
Minimum size: no limit
Maximum size: no limit
Shape: any shape
Temperature characteristics:
Continuous use temperature: ≤200℃
Instantaneous maximum temperature resistance: 300℃
Maximum temperature resistance of insulating material: 300℃
Ambient temperature: ﹣60-300℃
Temperature control: The temperature can be directly constant, or a variety of temperature control devices can be selected for temperature adjustment
Instructions for use:
1. When using a silicone heating blanket, it must be noted that its continuous use and working temperature cannot exceed 300°C
2. The silicone heating blanket can work and under pressure, that is, the auxiliary pressure plate is used to make it close to the heated surface. At this time, the heat conduction is good, and the power density can reach 3W/cm2 when the temperature of the working area does not exceed 240℃.
3. In the case of pasted installation, the allowable working temperature is less than 150°C.
4. In the case of dry burning in the air, the power density should be less than 1 W/cm2 due to the temperature resistance of the material; in non-continuous working conditions, the power density can reach 1.4 W/cm2.
5. The working voltage is based on the principle of high power-high voltage and low power-low voltage. Special needs can be listed.
application:
1: The silicone heating blanket is used in outdoor communication equipment to provide thermal environment, outdoor insulation, and antifreeze, chemical equipment heating, pipeline antifreeze, outdoor equipment backup battery insulation, medical, and other industries.
2: The silicone heating blanket is soft and can be bent, so it is often used to cover the surface of some curved objects to achieve heating, such as oil drums, pipes, experimental equipment, etc.

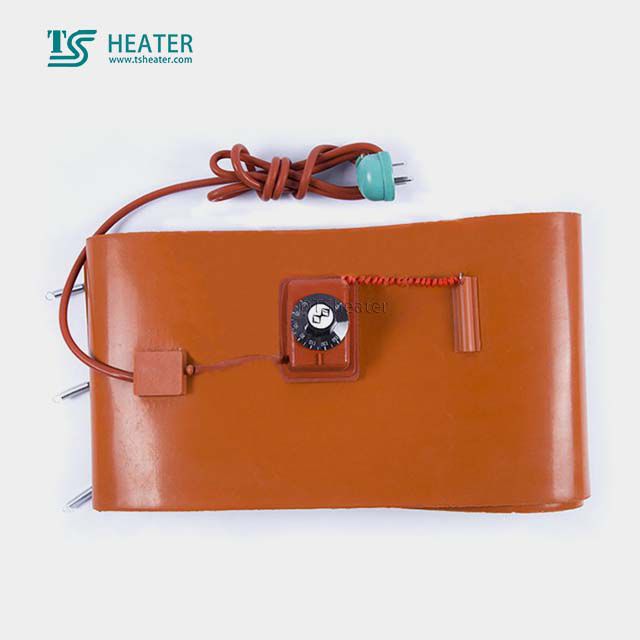

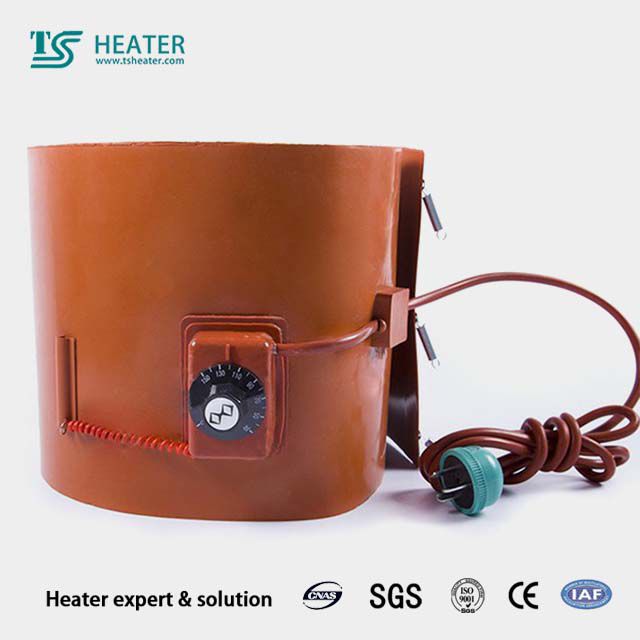

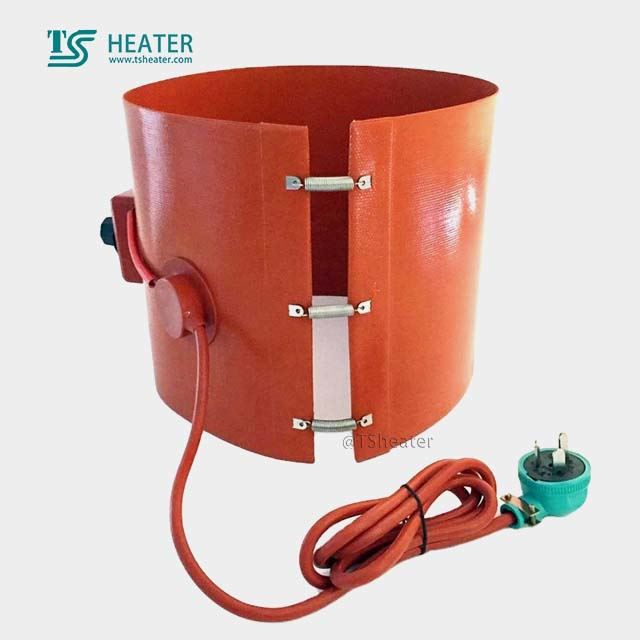

Product display:
