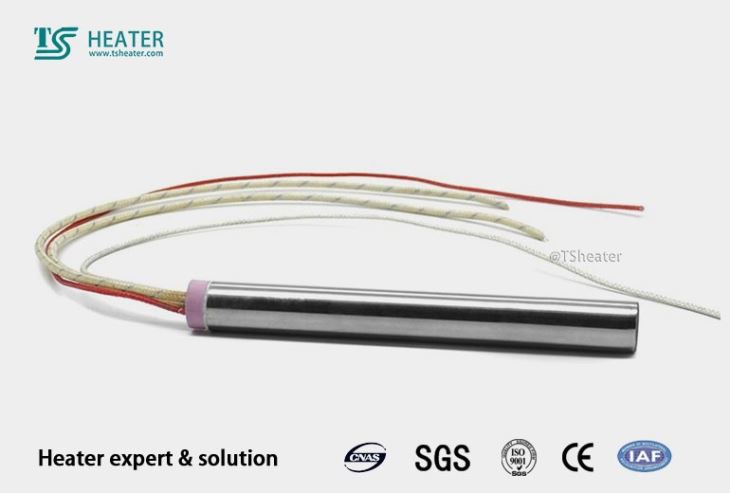

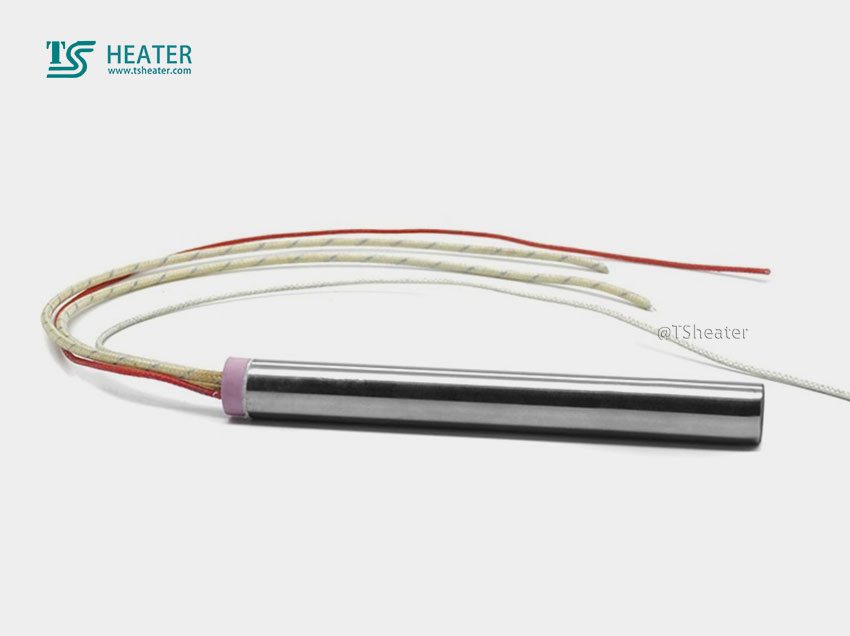

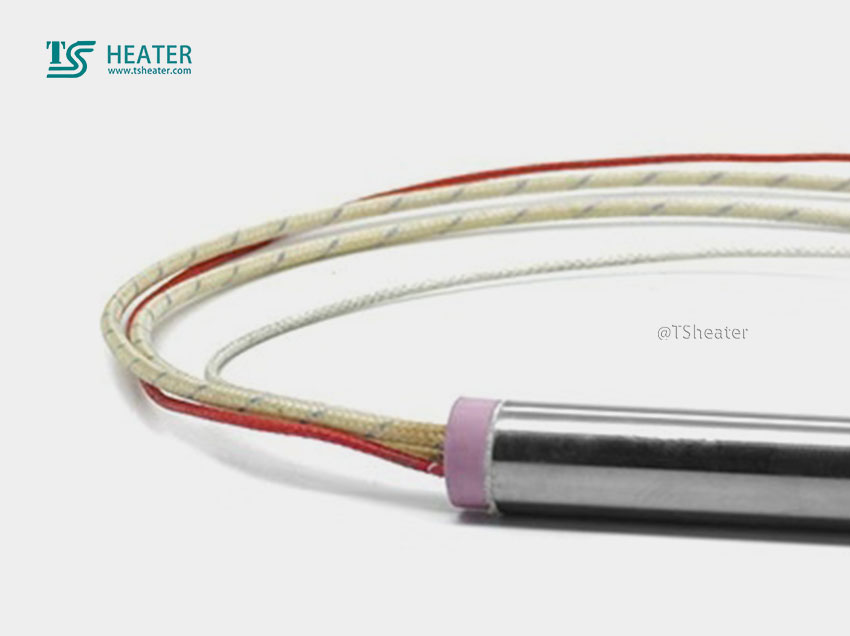

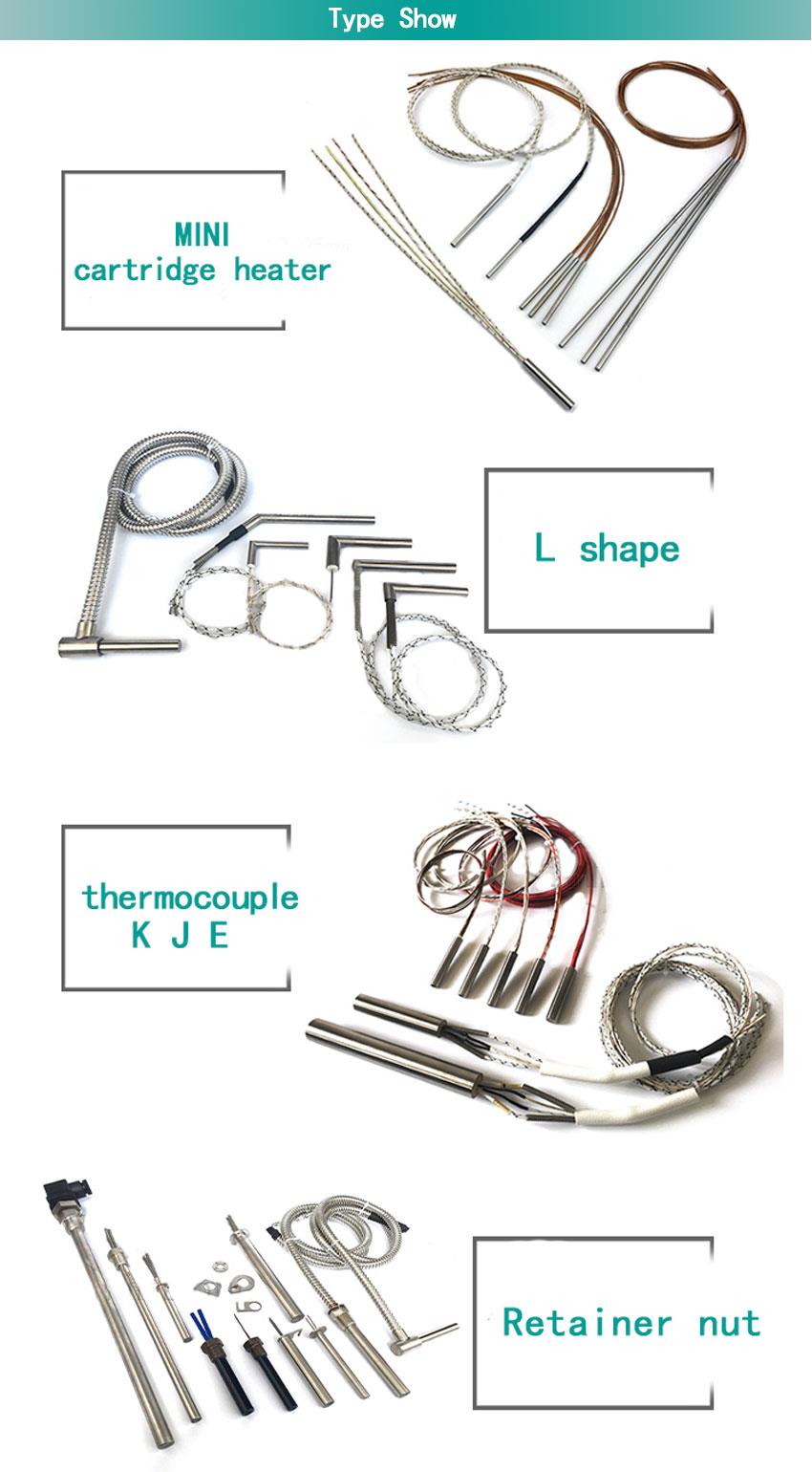

The construction of cartridge heater （cartridge heater with built in thermocouple ）positions a nickel-chrome resistance wire precision wound around a magnesium oxide core. It is inserted into a stainless or Incoloy tube locating the resistance wire close to the sheath. The core is centrally positioned within the tube and filled with magnesium oxide powder. Nickel pins pass through the centre of the core making contact with the resistance wire at both ends. The whole is assembly is highly compacted by a swaging operation and thus ensuring excellent heat transfer to the external sheath. This allows for operating temperatures to 1600ºF and high watt densities. One end of the heater is closed with a welded metal end-disc and wire leads exit at the opposite end which is typically closed with a lava seal. A variety of wire leads and lead protection options are available. Cartridge heater can be supplied with internal thermocouples, mounting fittings and many other options.

Product Application：Cartridge Heater With Built In Thermocouple

Water Heating：We recommend 10 watts per square centimetre when cartridges are to be immersed in water because the water removes the energy from the element very effectively. Commonly used as a chemical solutions heater.

Oil Heating：Commonly used as engine sump heaters. When heating some oils, only 2 watts per square centimetre can be used otherwise the high cartridge heater surface temperature causes the oil to oxidise and carbon to be built-up on the surface of the heater. When this occurs, the carbon can thermally insulate the cartridge heater, causing the unit to heat up internally, often resulting in electrical failure.

Air Heating：Elements of approximately 1 watt per square centimetre are suitable for convection air heating, eg. Anti-condensation heaters.Cartridge Heater With Built In Thermocouple

Die Heating：Manifolds, hot runners and torpedoes.PackagingHot melt glue applicators.Cartridge Heater With Built In Thermocouple
