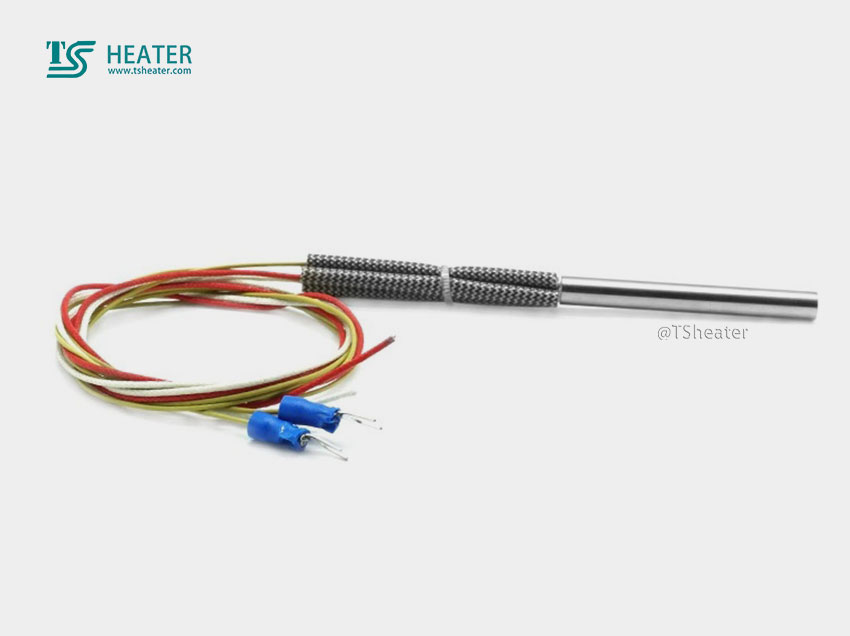

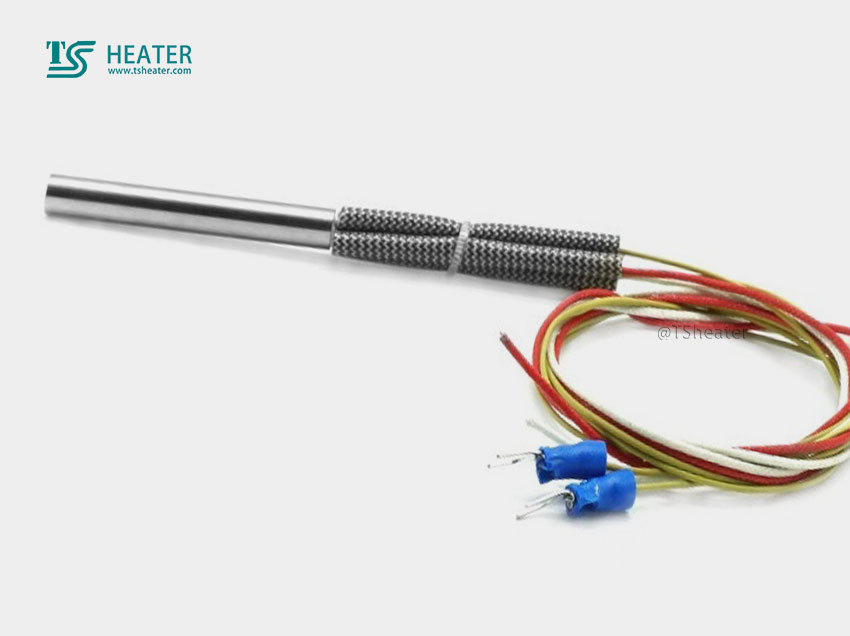

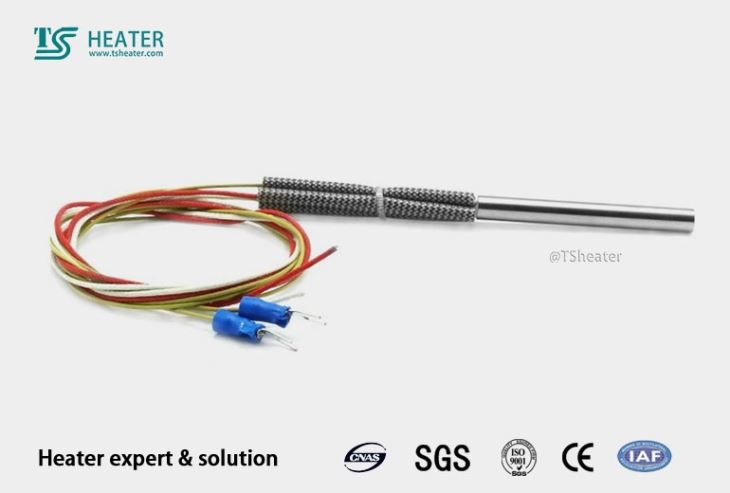

Cartridge Heater With Internal Thermocouple

Mould, tooling, pressing plate, packaging machinery, heat sealing equipment, plastic processing machinery, food processing machinery, catering, printing, hot foil printing, shoemaking machinery, laboratory/test equipment, vacuum pump, etc.

Detai production box heater to meet the full range of box heater applications.

We provide a standard range of drum heaters, we specialize in the design and manufacture of drum heaters to meet customer needs.

It is important to choose the right structure heater to suit your application.

cartridge heater with internal thermocouple：Cartridge Heater With Internal Thermocouple

The recommended temperature is up to 750°C

All box heaters have built-in J or K thermocouples

Sheath material：SUS 304/316/ in wart 840

Spiral：Ni - cr

Insulation：Magnesia powder

Voltage supply：12V to 480V Max

The highest temperature：750 °c.

Resistance tolerance：+ 5% - 10%

The power of tolerance：+ 5%-10% (closer tolerance can be provided according to special requirements)

Order specification：Cartridge Heater With Internal Thermocouple

Please note that detai manufacturing meets customer requirements.

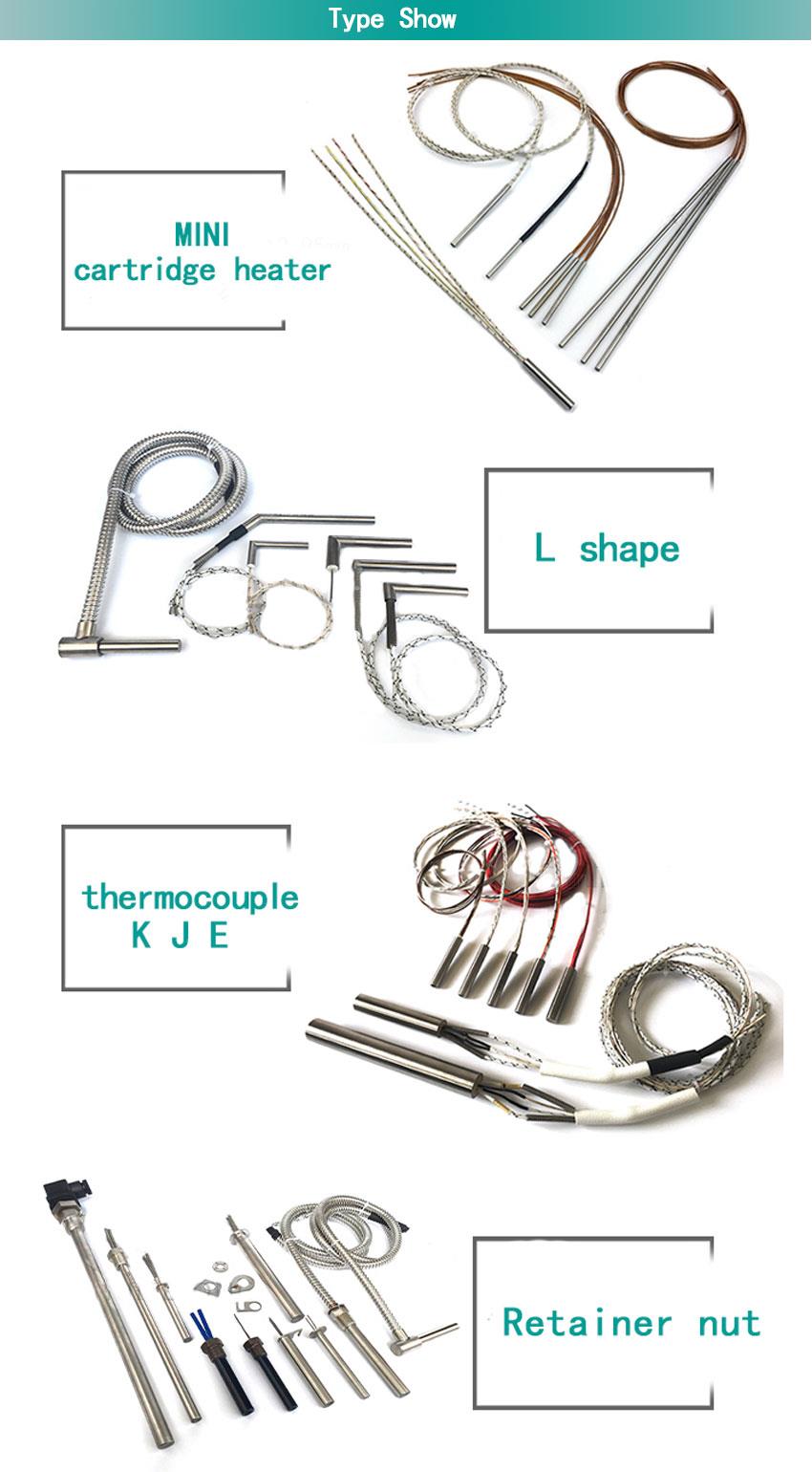

There are many lead options, including fiberglass leads, silicone leads, teflon leads, ceramic beaded leads, woven leads, and conduits.

Please advise our preferred lead type.

If you need some help or advice about proper lead use, don't hesitate to ask.

When ordering a cartridge heater, specify the following information :-

1.Type of drum heater (see termination options).

2.Ø cylindrical heater.

3.Total length of straight drum heater.

4.Power and voltage

5.Lead type (fiberglass/ptfe) and lead length.

elements：Cartridge Heater With Internal Thermocouple

1.High-grade ni-cr resistance wire,

2.Respectively with the core,

3.Stainless steel pipe

4. Built-in cable, or swaged in

• special sizes, wattage and materials are available upon request;

• customized design according to your specifications.

•Pin leads are available
