Cast in Heaters is an electric heater with a tubular electric heating element as a heating element, which is bent into a mold and is formed by die-casting or centrifugal casting with a good carbon steel material as the shell.
Introduction:
1: Cast in Heaters is an electric heater with a tubular electric heating element as a heating element, which is bent into a mold, and is formed by die-casting or centrifugal casting with a good carbon steel material as the shell.
2: Cast iron electric heating plates are divided into round, flat, right-angle, and other special shapes.
3: After precise calculation and processing, Cast in Heaters can fit closely with the heated body. Better heat conduction to the receptor.
4: Cast in Heaters can add insulation cotton and stainless steel shell as required.
Features
1: Good thermal conductivity,
2: Long life,
3: Good heat preservation performance
application:
Cast in Heaters are widely used in plastic machinery, molds, cable machinery, alloy die casting machines, pipelines, chemicals, rubber, petroleum, and other equipment.
Precautions for use of Cast in Heater:
1. Cast in Heaters should be placed in a dry place. If the insulation resistance is low due to long-term storage, the voltage can be reduced for electric heating until the insulation resistance is restored.
2. Cast in Heaters should be positioned and fixed, and the effective heating area must be closely attached to the heated body, and empty burning is strictly prohibited. When dust or contaminants are found on the surface, it should be cleaned up in time to avoid heat dissipation and shorten the service life.
3. The magnesium oxide powder at the outlet end of Cast in Heaters avoids the infiltration of pollutants and moisture in place of use to prevent leakage accidents.
4. The wiring part of Cast in Heaters is placed outside the heating layer and insulation layer, and the shell should be effectively grounded; avoid contact with corrosive, explosive media, and moisture; the lead wire should be able to withstand the temperature and heating load of the wiring part for a long time, and the wiring screws should be tight. Avoid excessive force when curing.
Custom tips:
1: Any material can be selected according to the needs of customers.
2: Specification, size, voltage, and power can be customized.

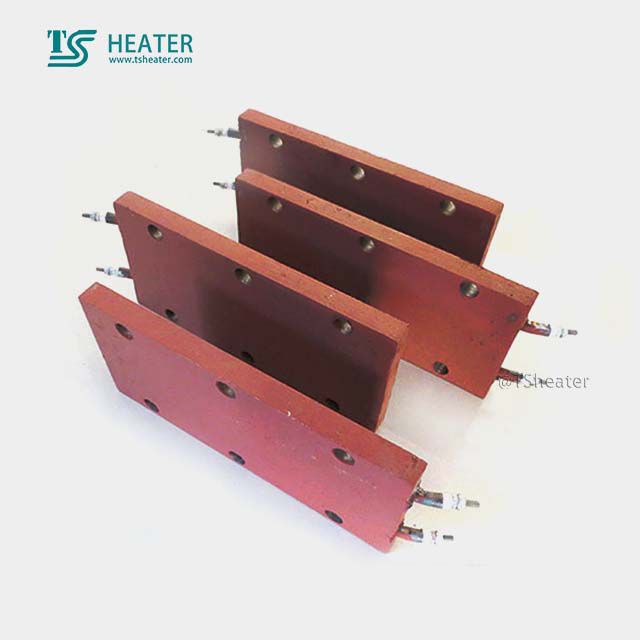

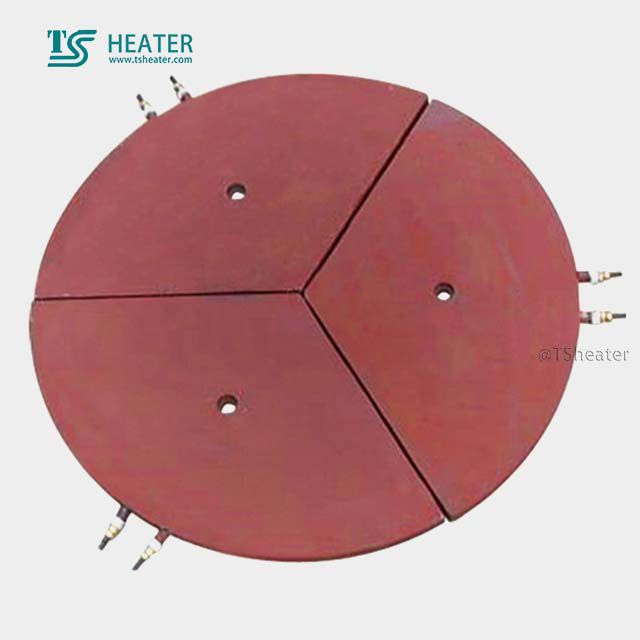

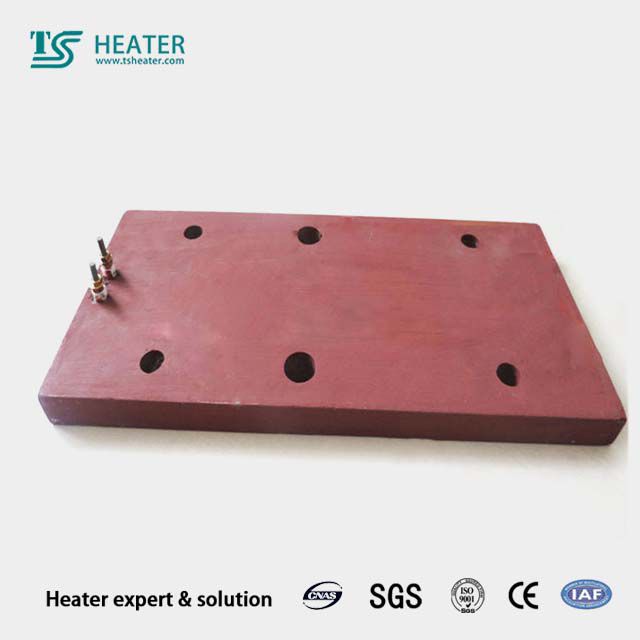

Product display:
