Cast Iron Band Heater

Cast Iron Band Heater

The surface load of the Cast Iron Band Heater can reach 4.5-6.0w/c㎡, and the working temperature range is generally between 0-750℃.

Description

product description:

1: Cast Iron Band Heater uses a tubular electric heating element as the heating element. After bending and forming, the mold is designed and opened according to the customer's requirements. The bent heating tube is placed in the mold and the metal alloy material is used as the outer shell. The centrifugal-type Cast into the shape required by the customer. For example, there are round, right-angled, and other shapes.

2: After precision processing in our factory, the Cast Iron Band Heater will fit closely with the heated body.

3: The surface load of the Cast Iron Band Heater can reach 4.5-6.0w/c㎡, and the working temperature range is generally between 0-750℃.

4: Cast Iron Band Heater is a uniformly divided heater.

5: Cast Iron Band Heater is a device to increase heat preservation of the machine on the outer heat dissipation surface, and the inner heat dissipation surface is sintered with infrared rays to save electricity.


advantage:

1: Good heat preservation performance.

2: Strong mechanical properties.

3: Corrosion resistance.

4: Anti-magnetic field, etc.


application

Cast Iron Band Heater is widely used in plastic machinery, molds, cable machinery, alloy die casting machines, pipelines, chemicals, rubber, petroleum, and other industries.


 Note for use:

1. The working voltage must not exceed 10% of the rated value; the relative humidity of the air is not more than 95%, and there is no explosive and corrosive gas.

2. The wiring part is placed outside the heating layer and insulation layer, and the shell should be effectively grounded; avoid contact with corrosive, explosive media, and moisture. The lead wire should be able to withstand the temperature and heating load of the wiring part for a long time. Avoid using excessive force to cause wiring.

3. The Cast Iron Band Heater should be placed in a dry place. If the insulation resistance is lower than 1MΩ due to long-term storage, it can be baked in an oven at about 200 degrees Celsius for 5-6 hours, and normal use can be restored. It is also possible to reduce the voltage and apply electric heating until the insulation resistance is restored.

4. Cast Iron Band Heater should be well positioned and fixed, and the effective heating area must be closely attached to the heated body. Empty burning is strictly prohibited. When dust or pollutants are found on the surface, it should be cleaned up in time before use, so as not to affect the heat dissipation and shorten the service life of the electric heater of the casting.

5. The magnesium oxide powder at the outlet end of the Cast Iron Band Heater should avoid the infiltration of pollutants and moisture in the place of use to prevent leakage accidents.


Purchase tips:

1: Provide drawings or samples of the product,

2: Need to know the model, specification, voltage, power, etc.


Product display:

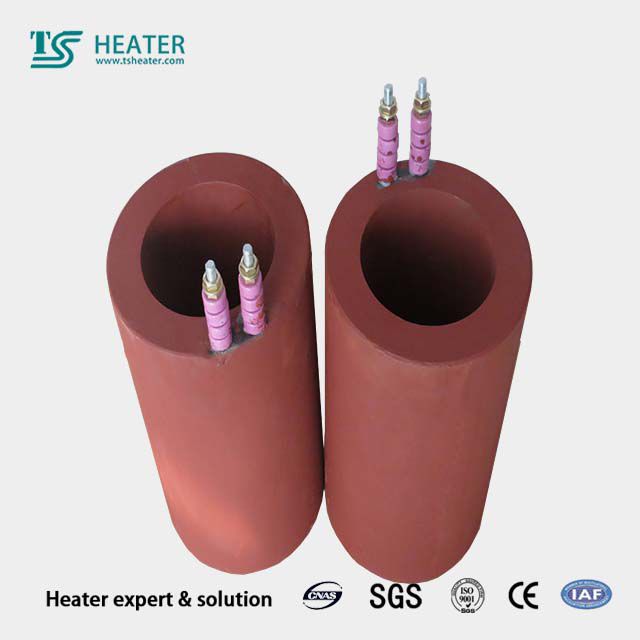

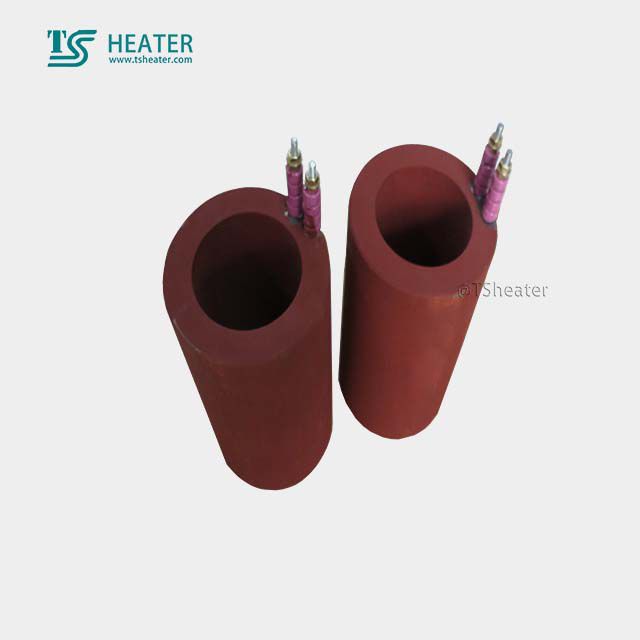

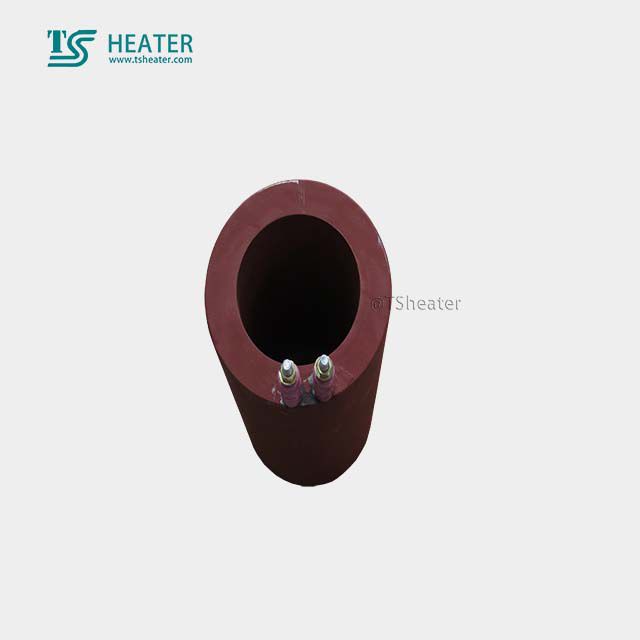

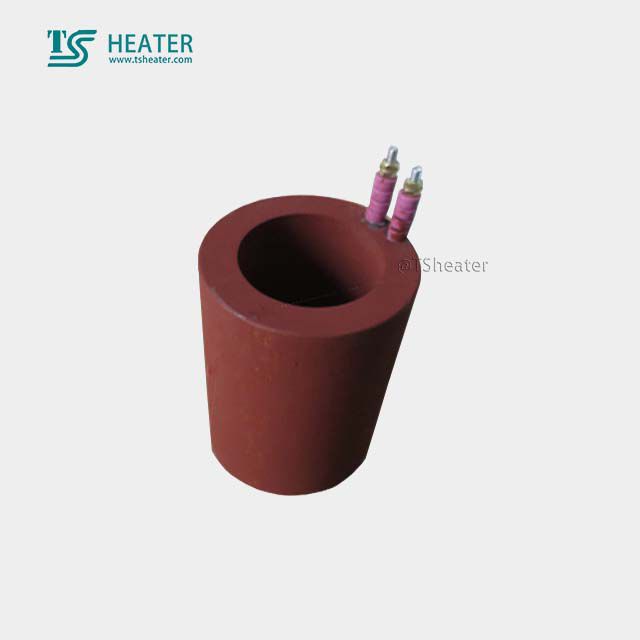

Cast Iron Band HeaterCast Iron Band Heater1Cast Iron Band Heater2
