These precision tolerance ceramic components or components are widely used in semiconductors, electronics, electrical, machinery, our experienced design, engineering, manufacturing, export experts are ready to help you with your next project.Ceramic Bobbin Tube
Ceramic Bobbin Tube
These precision tolerance ceramic components or components are widely used in semiconductors, electronics, electrical, machinery, our experienced design, engineering, manufacturing, export experts are ready to help you with your next project.
Our industrial ceramic parts including tubes, rods, plates, sheets, wafer, ring, bearing, valve, pump plunger, beams and roller, shaft, screw, washer, sleeve, hunger, gasket, stents, insulator, clamp, chuck, chuck, nozzle, guide rail, frame, bushing, grinding, grinding ball or beads, and high temperature electric drum type insulator bluestone pottery.

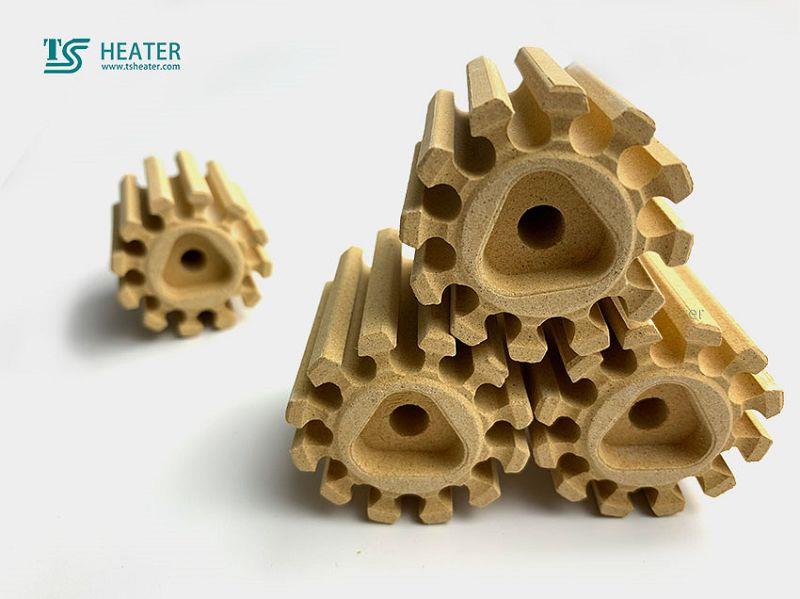

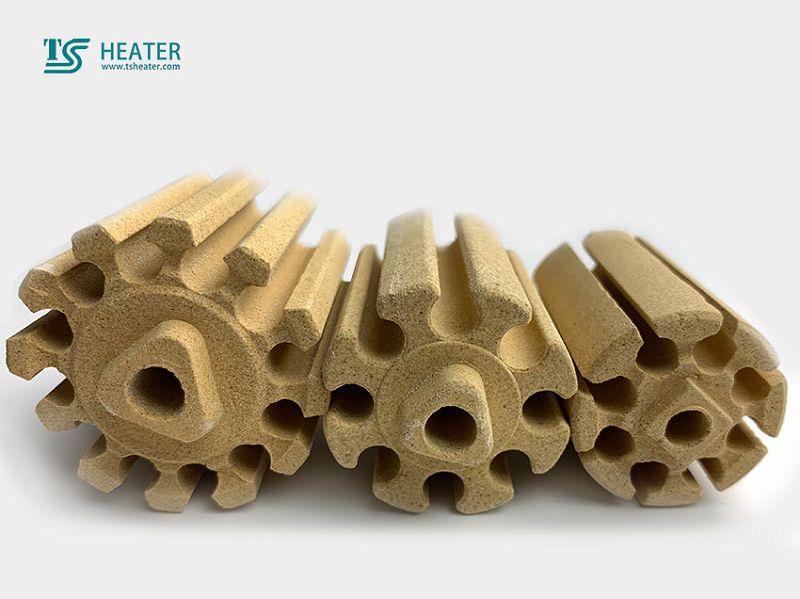

Ceramic Bobbin Tube
Type:Ceramic Parts
Application:Refractory
Material:Alumina Ceramic
Model Number:Customer's Requirements
Brand Name:BEST
Product name:High Temperature Electrical Bobbin Insulator Cordierite Ceramic
Color:Yellow
Certificate:ISO9001:2008
Max Working temperature:1200-1450
Bending strength:95MPa
Advantage:58 Years Structural Ceramics Experience
Raw material:cordierite ceramic
Density:2.1g/cm3
Heat conductivity:2.6W/M.K
Shape:Cylindd
Diameter:
OD:22、25、30、35、45、57mm

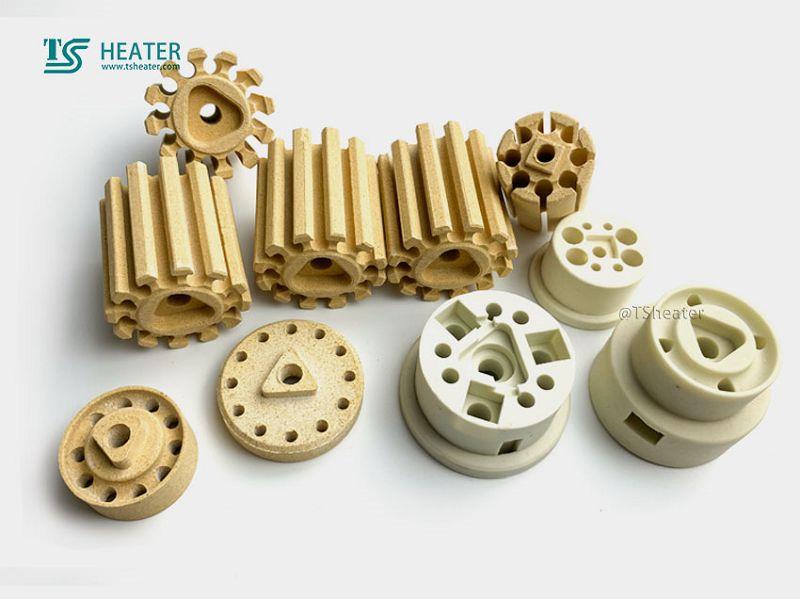

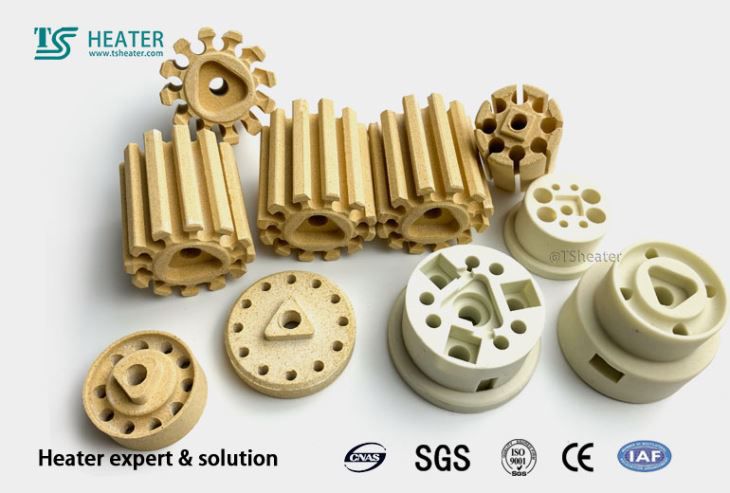

Ceramic Bobbin Tube
Performance For Alumina Ceramic | ||||
Item | Unit | 95 Al2O3 | 99 Al2O3 | |
Physical Characteristics | Bulk density | g/cm3 | 3.6 | 3.8 |
Water absorption | % | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 340 | 400 |
Hardness Vickers | Gpa | 13.5 | 15.6 | |
Elastic modulus | Gpa | 320 | 370 | |
Poisson’s ratio | 0.23 | 0.23 | ||
Thermal Characteristics | Linear expansion coefficient | (200C-5000C) 10-6/0C | 6.2-8.5 | 6.8-8 |
Thermal conductivity | w/(m.k) | 24 | 32 | |
Specific Heat | *10-3J/(kg*K) | 0.78 | 0.9 | |
Electrical Characteristics | Dielectric constant (1MHZ) | 9.4 | 9.9 | |
Dielectric loss angle | *10-4 | 5 | 1 | |
Dielectric strength | *106V/m | 15 | 15 | |
Delivery & Enquiries:
Most items are available for delivery in 3 to 7 working days. However, Ts heater do offer additional emergency services for customers who are in a breakdown situation. This includes a 48hr services on Mica products, Cartridge Heaters and Ceramic Knuckle Heaters. For all enquires please contact a member of our sales team who will be happy to assist.
