1) There are many specifications to choose from.
2) Meet various technical requirements
3) Reduce medium loss
4) Good insulation and high temperature resistance
Ceramic Insulators for Heaters
Ceramic Insulators for Heaters

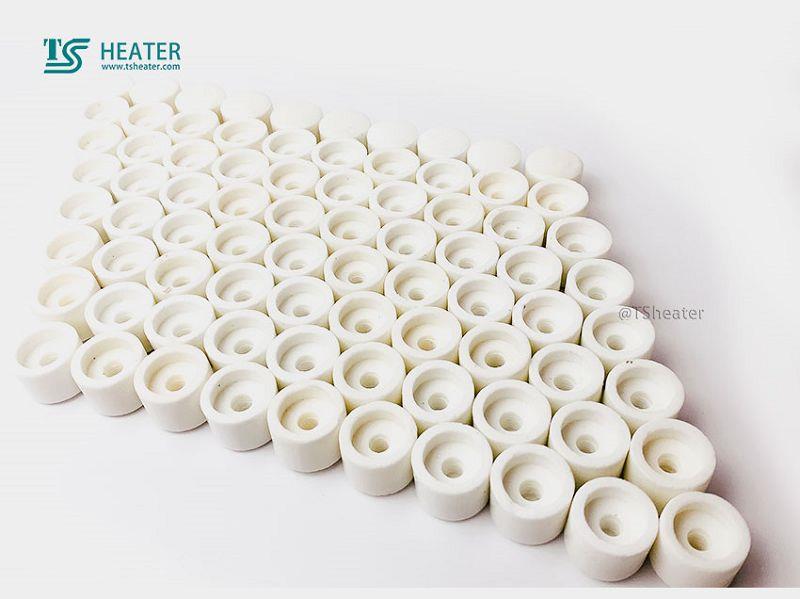

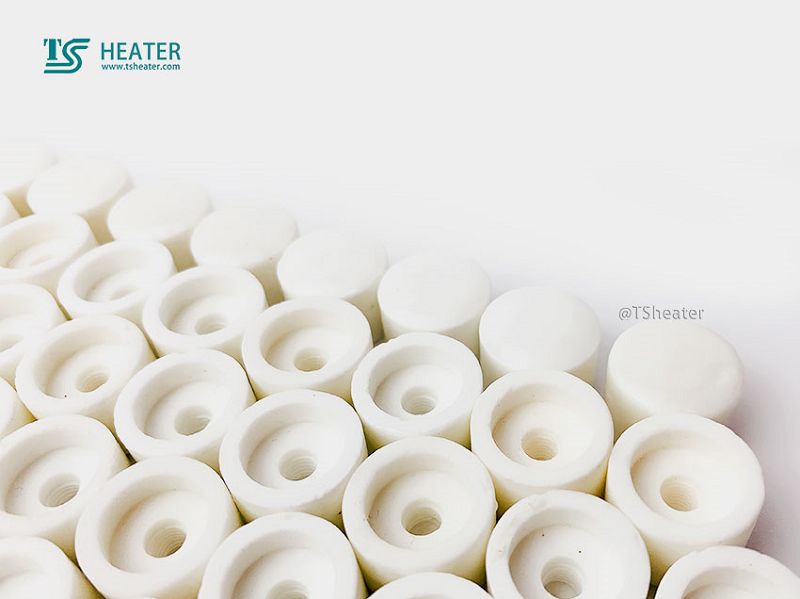

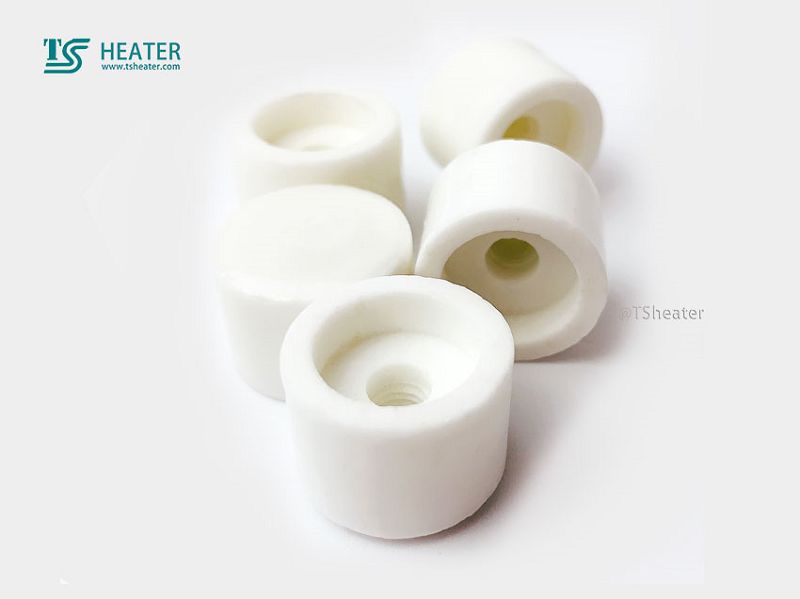

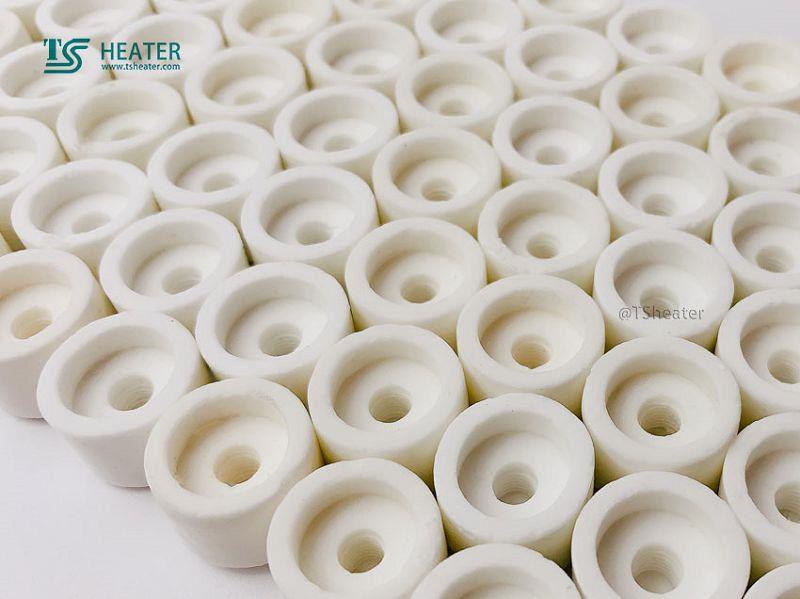

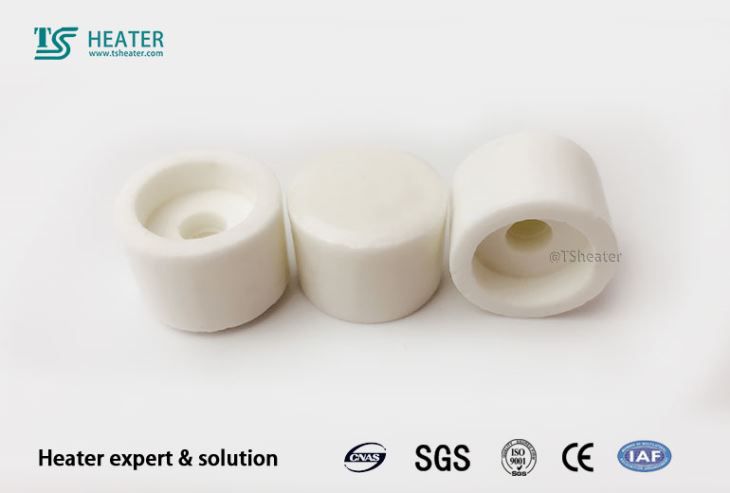

Ceramic Cap with M5 or M6 Thread
High hardness excellent insulating steatite ceramic M5 or M6 ceramic screw cap.
Ceramic Insulators for Heaters
Alumina ceramics is a kind of aluminum oxide (AL2O3) as the main material for thick film integrated circuits.
Alumina ceramics have good conductivity, mechanical strength and high temperature resistance.
Alumina ceramics are widely used ceramics.
Because of its superior performance, it has been more and more widely used in modern society to meet the needs of daily use and special performance.
Alumina ceramics have low dielectric constant, low dielectric loss, high insulating strength, high volume resistivity, good bending strength, high stability, high compressive strength and good cold and hot impact denaturation.
Widely used in all kinds of small electrical appliances thermostat, insulation parts, all kinds of thermal equipment, electric equipment, iron structure building, ship construction, etc.
Ceramic Insulators for Heaters
Alumina ceramics advantages:
1. The hardness
2. Excellent wear resistance
(3) corrosion resistance
4. High temperature resistance
5. Good self-lubrication
6. Not easy to scale
Ceramic Insulators for Heaters
Performance For Alumina Ceramic | ||||
Item | Unit | 95 Al2O3 | 99 Al2O3 | |
Physical Characteristics | Bulk density | g/cm3 | 3.6 | 3.8 |
Water absorption | % | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 340 | 400 |
Hardness Vickers | Gpa | 13.5 | 15.6 | |
Elastic modulus | Gpa | 320 | 370 | |
Poisson’s ratio | 0.23 | 0.23 | ||
Thermal Characteristics | Linear expansion coefficient | (200C-5000C) 10-6/0C | 6.2-8.5 | 6.8-8 |
Thermal conductivity | w/(m.k) | 24 | 32 | |
Specific Heat | *10-3J/(kg*K) | 0.78 | 0.9 | |
Electrical Characteristics | Dielectric constant (1MHZ) | 9.4 | 9.9 | |
Dielectric loss angle | *10-4 | 5 | 1 | |
Dielectric strength | *106V/m | 15 | 15 | |
Delivery & Enquiries:
Most items are available for delivery in 3 to 7 working days. However, Ts heater do offer additional emergency services for customers who are in a breakdown situation. This includes a 48hr services on Mica products, Cartridge Heaters and Ceramic Knuckle Heaters. For all enquires please contact a member of our sales team who will be happy to assist.
