This Coil Heater With Thermocouple is a popular product in our factory. The coil heater is equipped with a thermocouple to control the temperature more accurately.
Basic information of Coil Heater With Thermocouple
Brand: TS
Material: stainless steel, heating wire, magnesium oxide powder
Place of Origin: Guangzhou, China
Specifications: 2.2*4.2, 3*3, 4*2, 3.5*3.5, 1.6, 1.8, 2.0
Classification of Coil Heater With Thermocouple:
Spring electric heating coils (heating tubes), hot runner electric heating coils are available in round section, square section, and flat section. The outer surface has two effects of bright and sandblasting, and it can be equipped with K-type and J-type. Or E-type temperature control thermocouple.
Remarks:
2 wires: two heating wires
3 wires: two heating wires + 1 ground wire
4 wires: two heating wires + 2 temperature sensing wires (model: J type or K type)
5 wires: two heating wires + 2 temperature sensing wires (model: J type or K type) +1 ground wire
If you want 4 wires, the default thermocouple model is J type, if you want K type, please specify in advance.
Advantages of Coil Heater With Thermocouple:
1: Easy to install,
2: Fast heat transfer,
3: Good insulation,
4: The production is not limited by the size of the model and specifications and other advantages.
5: The contact surface is square, and the heat transfer effect is good.
6: Straight or wound heating coils are available.
7: Long life, high watt density.
8: The power distribution is reasonable and even.
9: There are two specifications with or without a thermocouple for you to choose from.

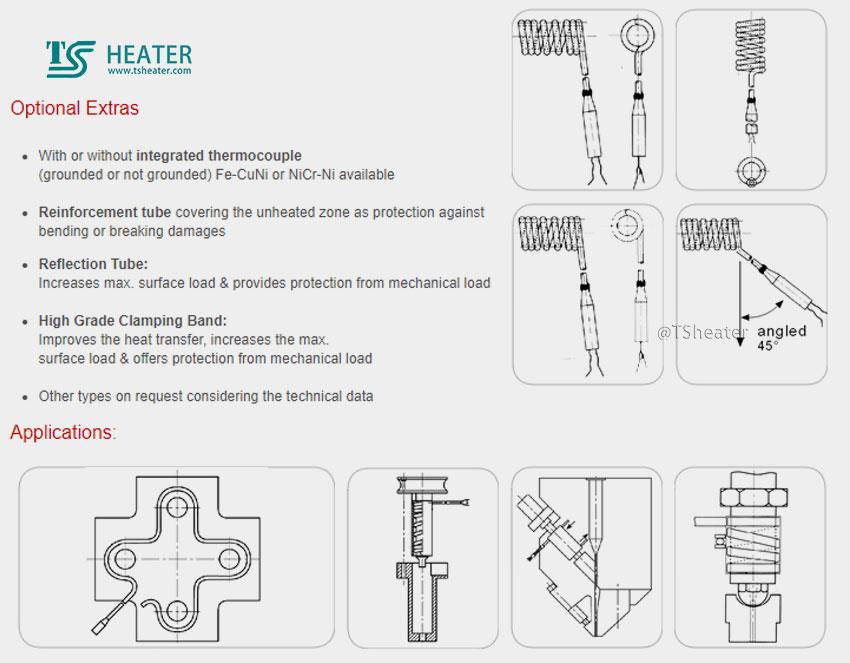

Uses of Coil Heater With Thermocouple:
1: Hot runner plastic mold
2: Blow molding machine
3: Extruder
4: Nozzle
5: Manifold
Product display:
Packaging & Shipping
------factory show------
