Professional winding all kinds of long coils, both side spindle synchronous rotation, stable and reliable.This machine adopts 32-bit controller chip design, with high speed and reliability.Display in Chinese and English, easy to operate Resistaice Winding Machine
Resistaice Winding Machine Mica sheet, heating wire, coil resistance, fishing line winding and all extension coil products
Machine features:

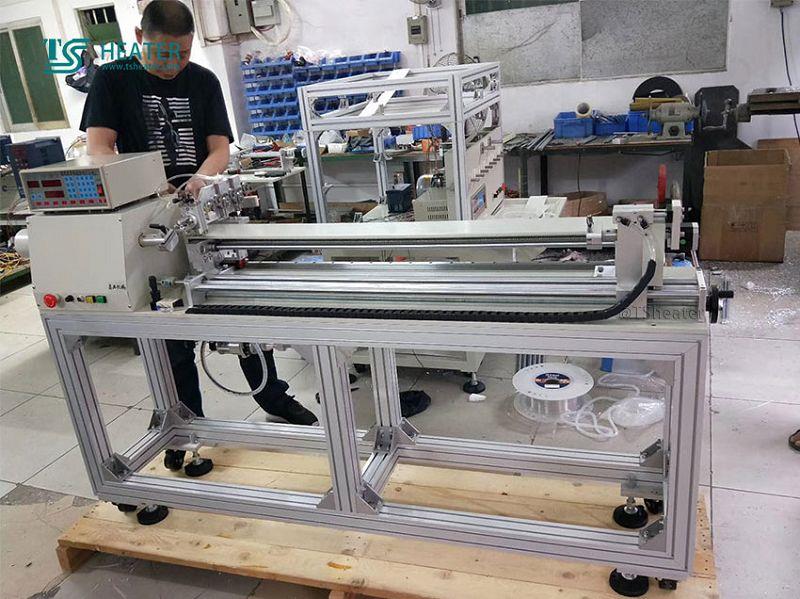

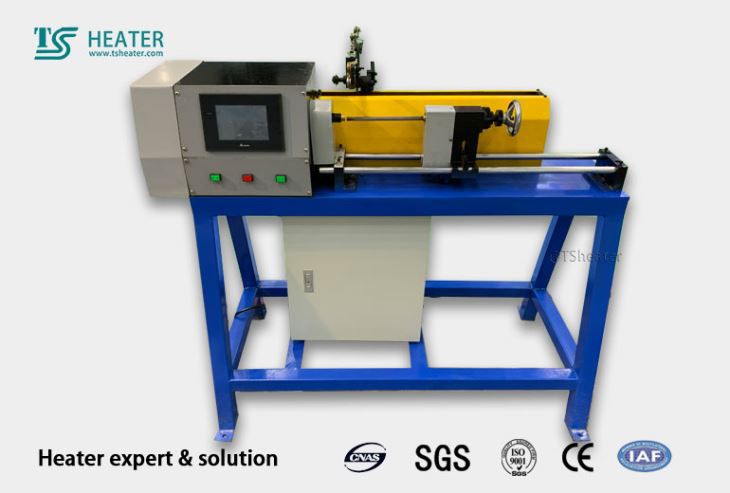

Resistaice Winding Machine
Professional winding all kinds of long coils, both side spindle synchronous rotation, stable and reliable.This machine adopts 32-bit controller chip design, with high speed and reliability.Display in Chinese and English, easy to operate, keep winding data after power failure, do not discard products.All parts of the machine are imported prats, such as: Japanese bearing (NSK, NTN), Japanese BANDO belt, Japanese ram belt, Taiwan ball screw (TBI), Taiwan transducer, etc.
Main features:
High quality bearing steel is used to strengthen the fuselage and ensure product stability.
B rod tail seat design, more convenient operation.
C adjustable wire frame to prevent loose wire.(optional)
Application:
Machine features:
Resistaice Winding Machine
Professional winding all kinds of long coils, both side spindle synchronous rotation, stable and reliable.This machine adopts 32-bit controller chip design, with high speed and reliability.Display in Chinese and English, easy to operate, keep winding data after power failure, do not discard products.All parts of the machine are imported prats, such as: Japanese bearing (NSK, NTN), Japanese BANDO belt, Japanese ram belt, Taiwan ball screw (TBI), Taiwan transducer, etc.
Main features:
Resistaice Winding Machine
High quality bearing steel is used to strengthen the fuselage and ensure product stability.
B rod tail seat design, more convenient operation.
C adjustable wire frame to prevent loose wire.(optional)
Spindle number | 1 |
Wire size range | 0.05-2mm |
Loop diameter | 140mm |
Max wire distance | 32mm |
Winder width | 400-2000mm |
Max. speed | 0-1800turn/min |
Spindle motor | Three-phase motor+Phase motor+AC Drivers+step act |
Winder motor | stepping motor |
Max. winder diameter | 120mm |
Input power | 220V 50HZ/60HZ |
Machine size | 2200--2700*500*500mm |
Package size | 2230-2900*590*635mm |
Net weight | 170kg-350kg |
Net weight | 221kg-420kg |
Delivery & Enquiries:
Most items are available for delivery in 3 to 7 working days. However, Ts heater do offer additional emergency services for customers who are in a breakdown situation. This includes a 48hr services on Mica products, Cartridge Heaters and Ceramic Knuckle Heaters. For all enquires please contact a member of our sales team who will be happy to assist.
