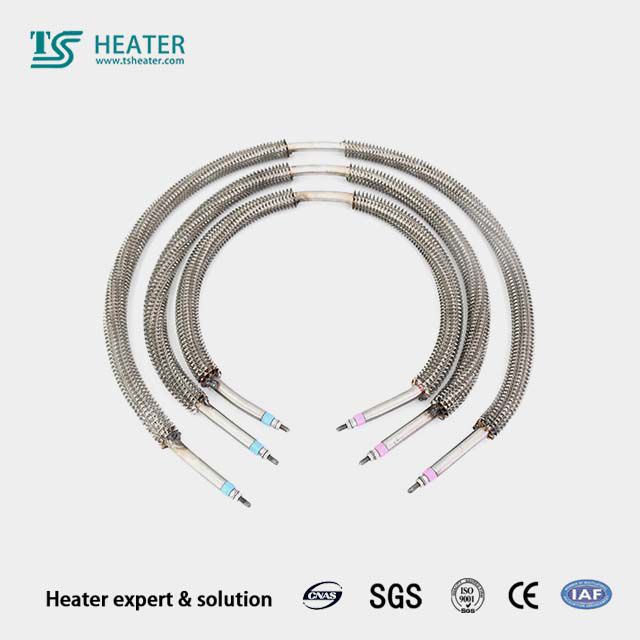

Finned Heater Element

Brand: TS

Material: SUS304

Custom processing: Yes

Power: customized

Main purpose: heating air

Product certification: ISO9001, CE

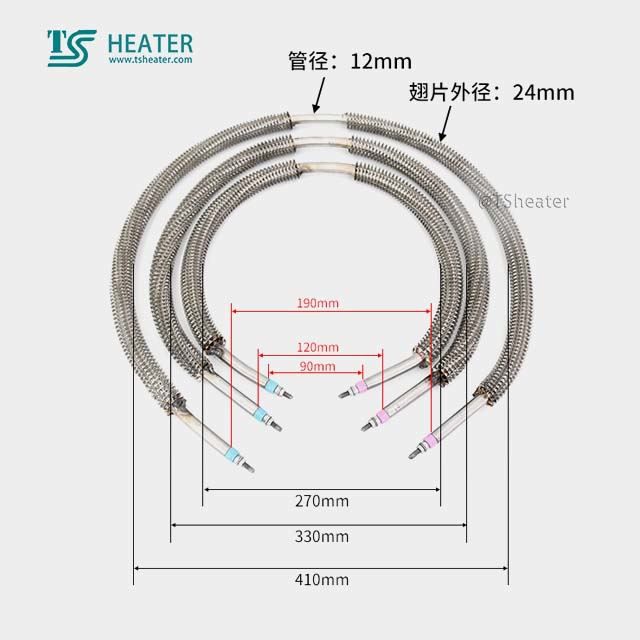

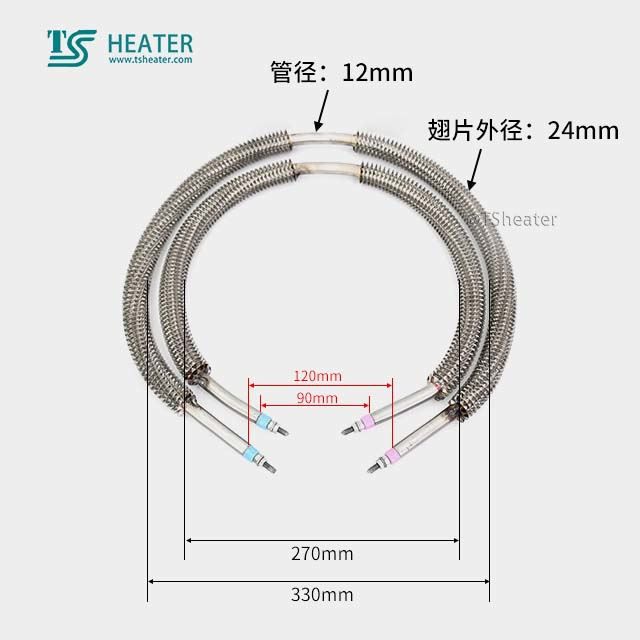

Pipe diameter: 12mm

Fin outer diameter: 24mm

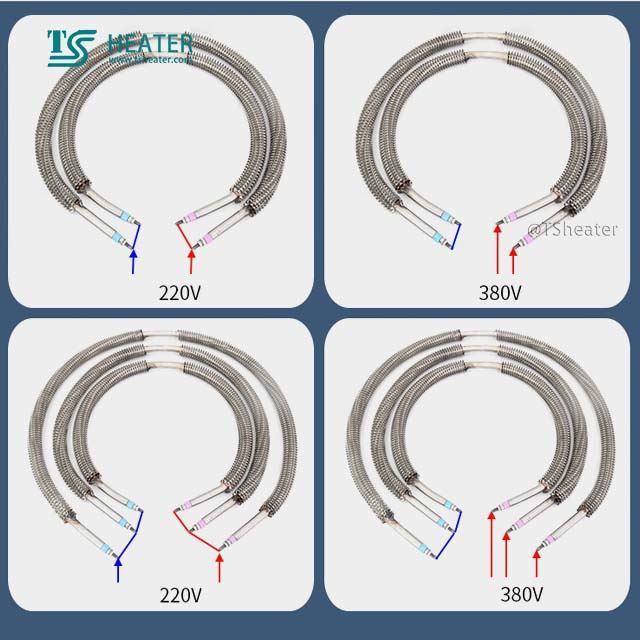

Voltage: 220V/380V.

The power is 3.5KW.

The finned heater element is a popular product in our factory. This finned heater element is very efficient, we have all specifications of the finned heater elements, the price is very cheap.

Product Composition:

The finned heater element is made of stainless steel fins wrapped around the outer surface of the heating tube to enhance the overall heat dissipation effect of the heating tube.

Fin material: stainless steel.

Insulation material: magnesium oxide.

Tube material: stainless steel seamless tube.

use:

The finned heater element is suitable for heating places with static and flowing air, and the general heating medium is air.

1. Oven.

2. Drying room.

3. Pipe heating

4. Air duct heating, etc.,

Use place:

1. Machinery manufacturing.

2. Cars.

3. Textile.

4. Food.

5. Air-conditioning and other industries.

Features:

The heat dissipation area of the finned heater element is increased by 2.5 to 4 times compared with ordinary light pipe heating, and the tube surface load is increased by 1.5 to 2 times. And it has the advantages of fast heating, high thermal efficiency, and long service life.

advantage:

As the length of the finned heater element is shortened, its own heat loss is reduced, under the same power condition.

1: The temperature rises quickly.

2: Heat evenly.

3: Good heat dissipation performance.

4: High thermal efficiency.

5: Long service life.

6: The heating device is small in size.

7: Low cost.

Ordering parameters:

1. Power supply voltage: V

2. Rated power: KW

3. Working temperature: ℃

4. Material selection

5. Pipe diameter: mm

6. Fin outer diameter: mm

7. Dimensions: mm

Product parameters:

Connection method:
