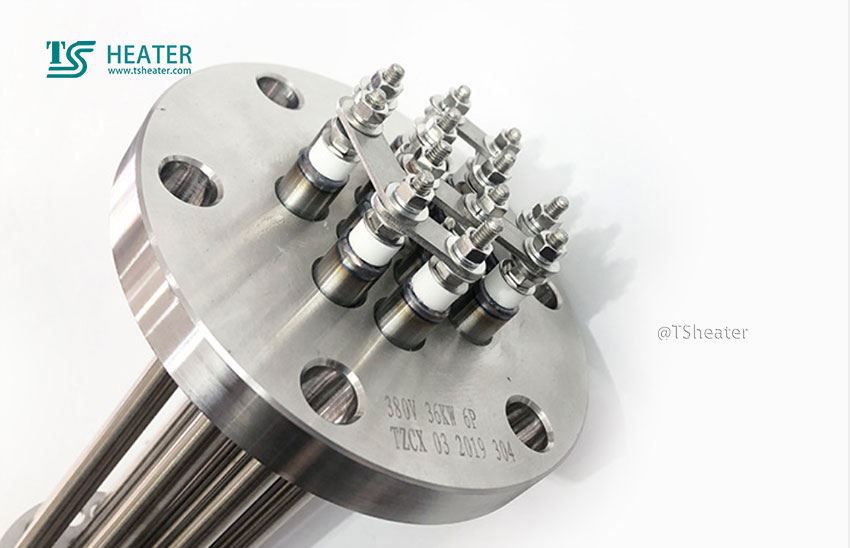

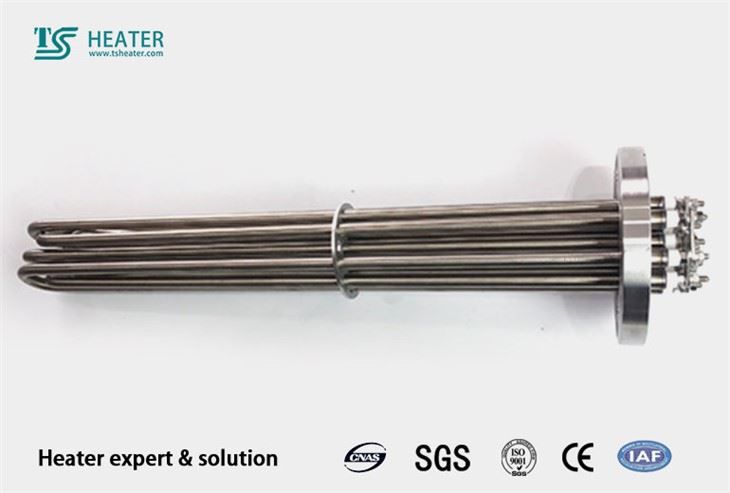

Flange heaters use argon arc welding to connect the electric heating tube to the flange, or use the form of a fastening device, that is, each electric heating tube is welded with a fastener, and then the flange cover is locked with a nut, and the tube is fastened Parts are welded by argon arc, no leakage
Features of Flange heaters
1) Flange heaters are perfectly designed. Because the whole is short and dense, it has good stability and no bracket is needed for installation.

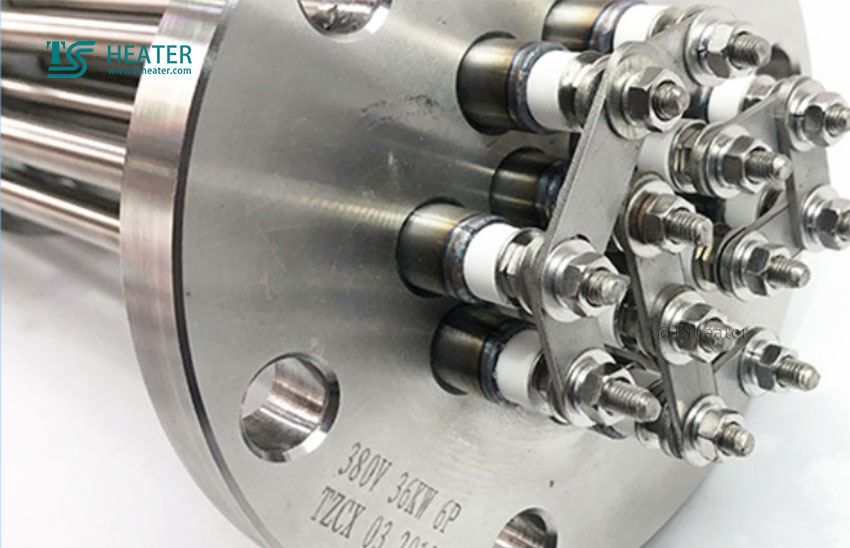

2) Flange heaters use argon arc welding to connect the electric heating tube to the flange, or use the form of a fastening device, that is, each electric heating tube is welded with a fastener, and then the flange cover is locked with a nut. Fasteners are welded by argon arc, no leakage.
3) The fastener seal adopts scientific technology, which is convenient for single replacement, which greatly saves future maintenance costs.
Need to provide when ordering:
1. Specific size requirements: length * width; diameter * height
2. Operating voltage: 380V, 220V, 110V, 36V. . . Etc., customized according to customer needs

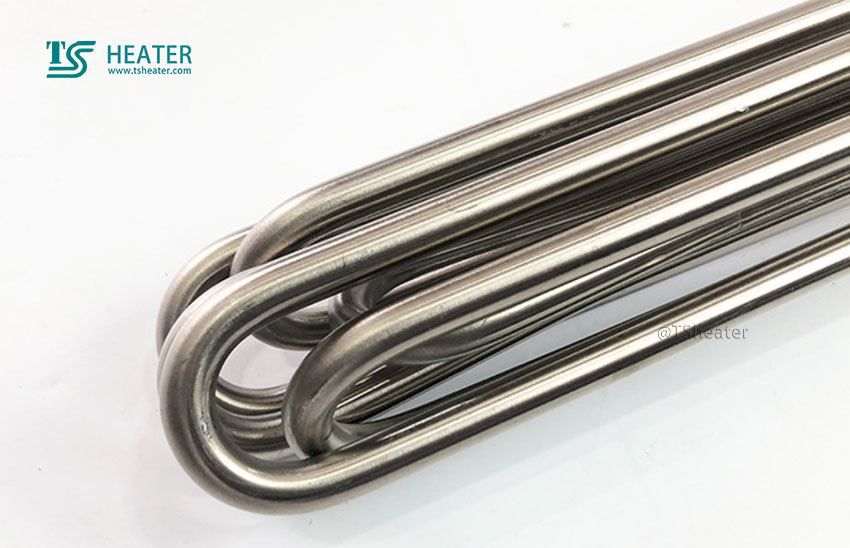

3. Power: We generally do it in accordance with 2.5-3.5W per square centimeter. Flange electric heating tube is to weld or screw multiple electric heating tubes to a flange to form a high-power, integrally disassembled heater. The temperature control probe can be welded to the flange to make the temperature controllable The overall heater. Prevents dry burning and can extend the service life. There are two connection methods, one is threaded connection, the commonly used size is G1/2--2 inches, and the other is flange connection. Also known as flat flange connection Common specifications and sizes are DN50mm-DN300mm. Commonly used materials for flanges of flanged electric heating pipes are brass, stainless steel, 10# steel, tube materials are commonly used 10# steel, stainless steel, and copper. Common specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc. It is mostly used in electric water heaters, electric boilers, solar systems, solar water tanks, chemical pools, bathing pools, swimming pools and other places that need to be heated.
1) Reference voltage: 220V/380V
2) Heating pipe diameter: Φ8.5—Φ22
3) Heating pipe material: SS304 stainless steel, SL316 stainless steel 2520 stainless steel 2580 stainless steel, titanium material stainless steel, 10 steel, copper
4) Main power: 3KW—500KW
5) Working pressure: 1.0MPa—3.0MPa
6) Material of flange and thread head: stainless steel, carbon steel, copper.
(This product can be customized according to customer requirements, provide drawings, voltage, power, size)
