Heater Expert Solution

Heater Expert Solution

The heating rod of the hot runner heater is made of special production technology and high-quality materials, which is durable and ensures efficient operation in a tight space, even when the heating jacket temperature reaches 700 degrees Celsius. Manufactured in accordance with metric and international standards, all models are based on the VDE0721 quality inspection requirements, which can meet the needs of most machines, factories, etc. using heating elements

Description

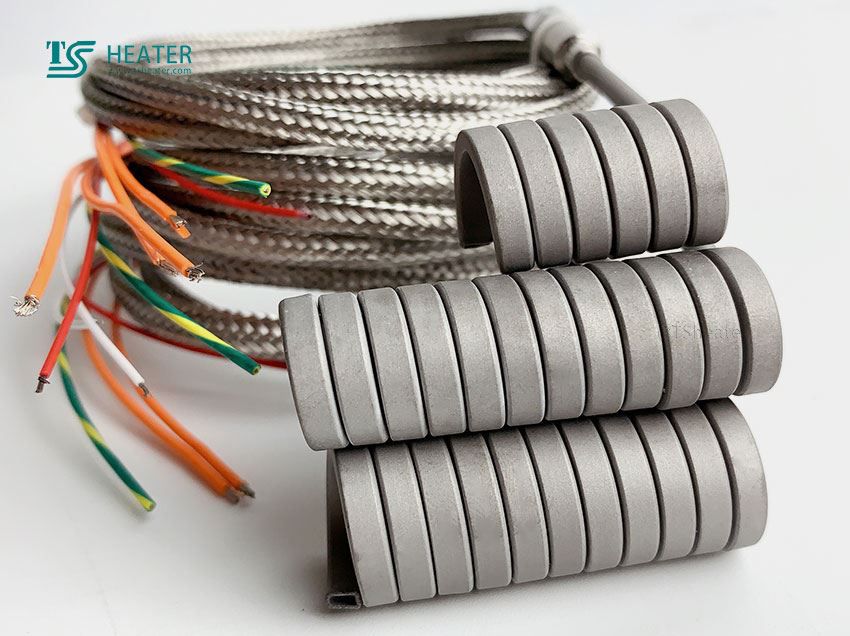

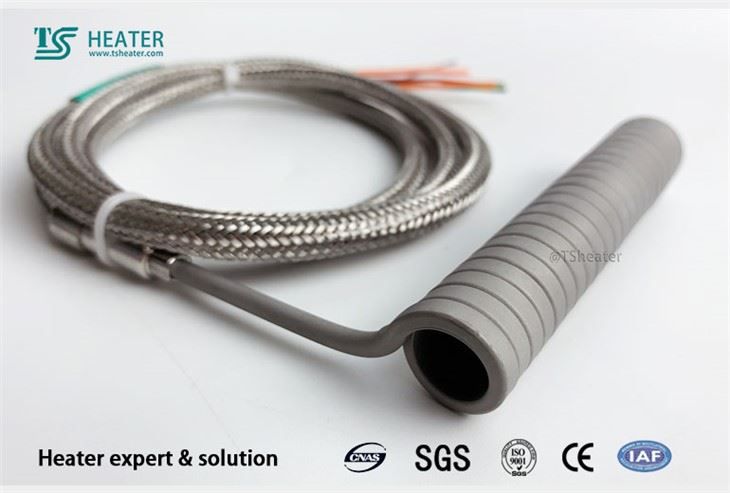

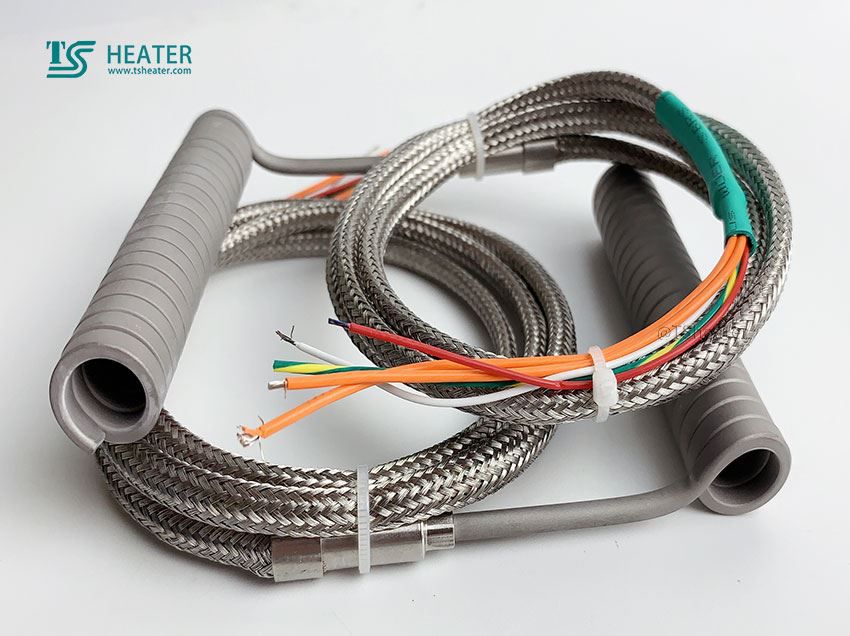

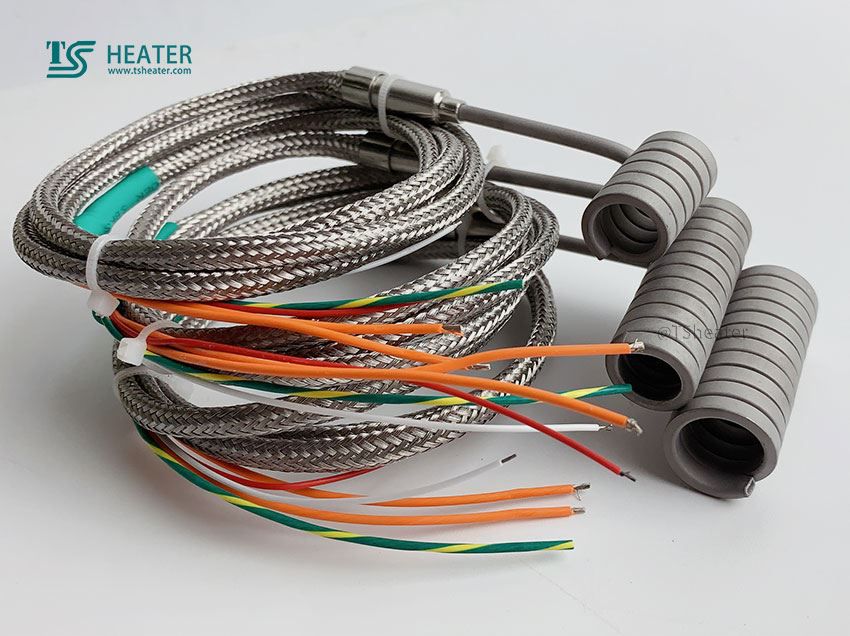

Professional hot runner heater, the original imported good reputation manufacturer wholesale price hot runner heating ring can be produced in the length of 20-3000mm. Mainly used for molds or hot runners, and other precision heating systems, the outside of the spring heating ring is made of high-quality nickel-chromium alloy The inside of the tube is made of high-purity magnesium oxide and high-temperature resistance wire with mature technology. The heating wire is annealed and can be bent into an arc or circle for heating. It has high working temperature, fast heating, uniform heating, long service life, can automatically control the area, and has high heat conduction. At the same time, the internal heating material is damaged, and the outside can still be reused.


Product details features:

1. Spring heating coil specification: heating strip section: 2.2X4.2 3X3 3.4X3.4 3.5X3.5 4X4

2. The inner diameter of the heating ring is 10mm~38mm, the height of the heating ring: 40mm~200mm

3. Voltage: 220V~380V Power: 200W~3000W

4. Built-in thermocouple: J couple K couple, wire length: 500mm 1000mm 1200mm 1500mm 2000mm

5. Continuous operating temperature: 1200 degrees Fahrenheit; gap operating temperature: 1500 degrees Fahrenheit

6. Advantages of spring heating coil: high working temperature, fast heating, long life, easy installation

mini coil  heater workshop heatermini coil  heater heating element wire suppliersmini coil  heater electric heater manufacturers
