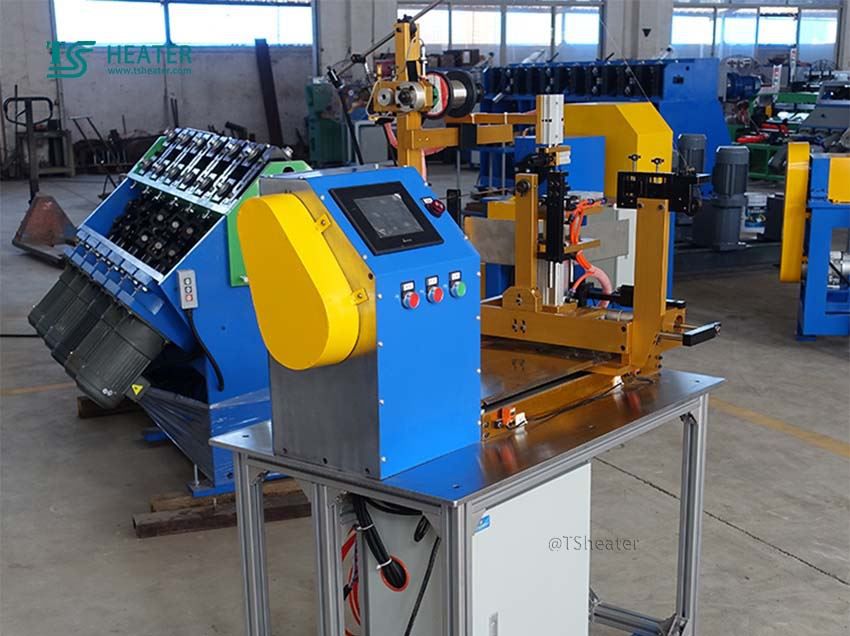

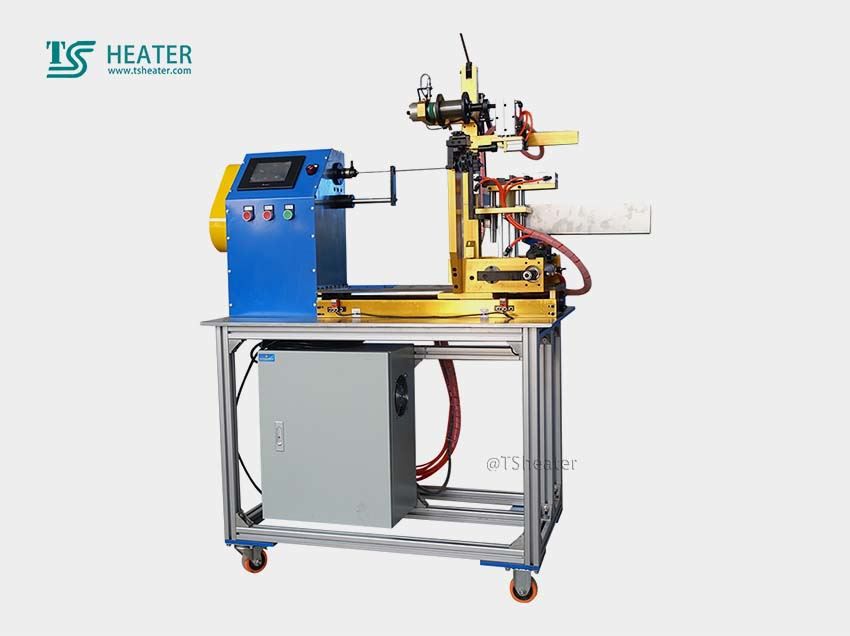

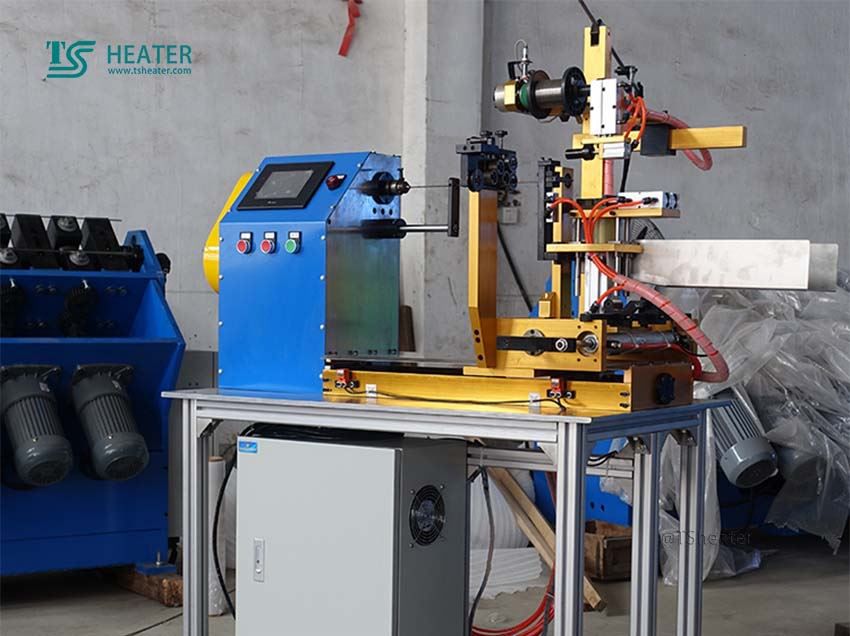

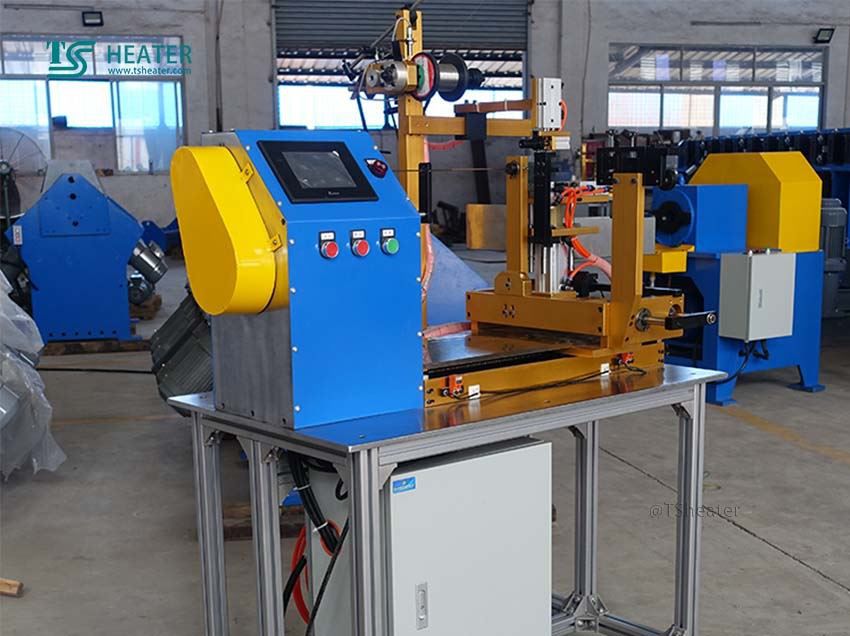

Heating Tube Winder

Heating Tube Winder

The heating tube winder can automatically hold the end of the resistance wire when winding, and there is no need to pull the end of the resistance separately when winding on the frame. Reduce one step to improve overall production capacity.

Description

Product: Heating tube winder

Number: Heating tube winder-25



Technical parameter:

Mandrel: 2-3.5mm

Wire diameter: 0.15-0.6mm

Stroke: 0-450mm

Terminal resistance: 15-100mm

Scroll speed: 0-5000rnp

Capacity: 230-270 pcs/hour

Pressure: ≥4.0kg/ cm

 Voltage: 220V

Volume: 120x70x150cm

  Weight: 160kg

(The above data can be customized)


Heating tube winder:

The heating tube winder is a new type of resistance winding machine developed by our factory.


The heating tube winder can automatically hold the end of the resistance wire when winding, and there is no need to pull the end of the resistance separately when winding on the frame. Reduce one step to improve overall production capacity.

The performance of this machine is very stable, the operation is simple, and it is controlled by PLC, touch screen, and servo motor. The configuration of commonly used operating tools makes the overall operation simpler and smoother.

The heating tube winder can automatically load the resistance wire-start-wind-stop-cut and take out the resistance wire. Furthermore, the machine can keep the resistance wire at the end, so there is no need for manual care.

Heating tube winder is widely used in various heating tubes and heaters.

advantage:

(1) Large adjustment density

(2) When the pressure is insufficient, the material is insufficient, and the wire is broken, the wire material will automatically stop (3) Process detection and fault diagnosis

(4) The diameter of the mandrel can be adjusted arbitrarily

(5) Keep the end, the size is adjustable

(6) Automatic winding and manual separation

(7) Eight winding methods including forwarding rotation, reverse rotation, fast winding, slow winding, single line, multi-line, long-line, and short-line.

ps1ps2ps3ps4
