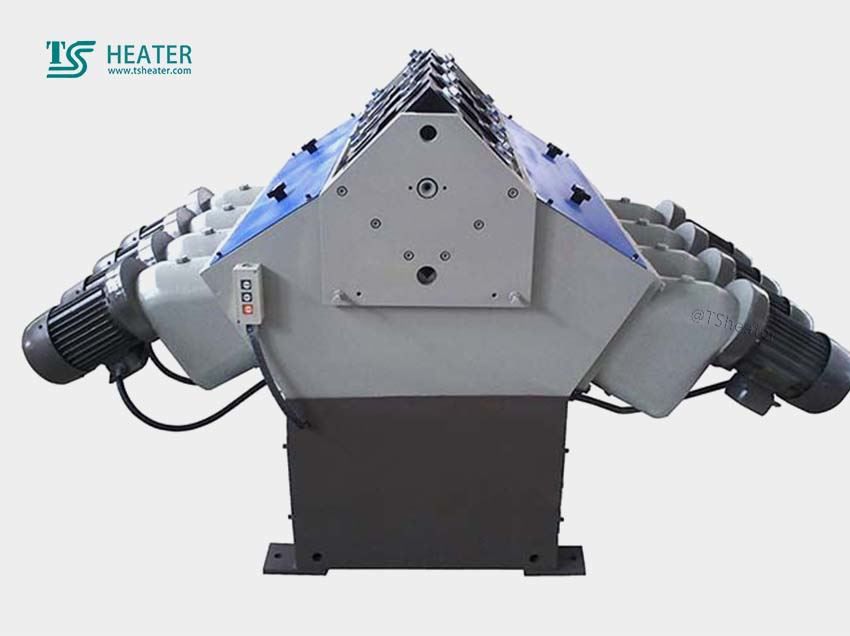

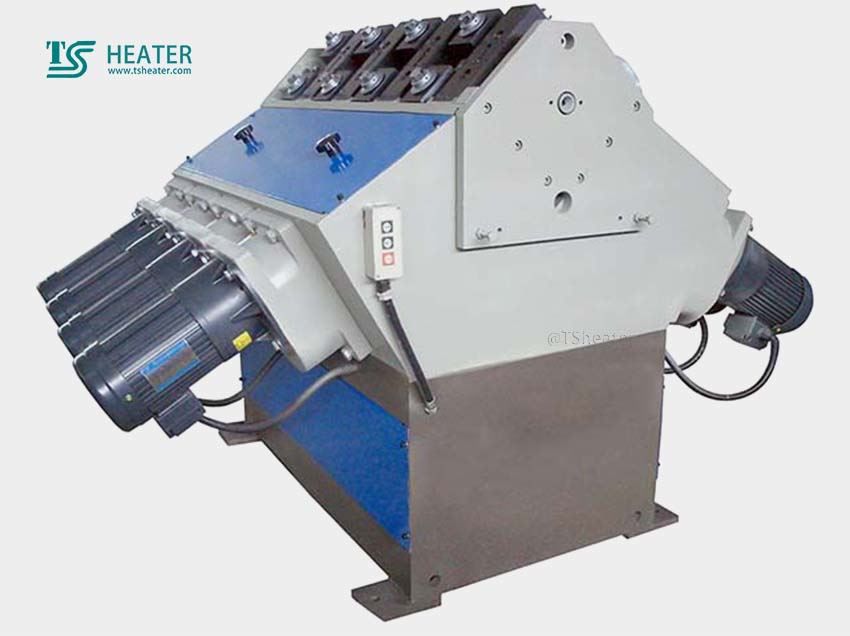

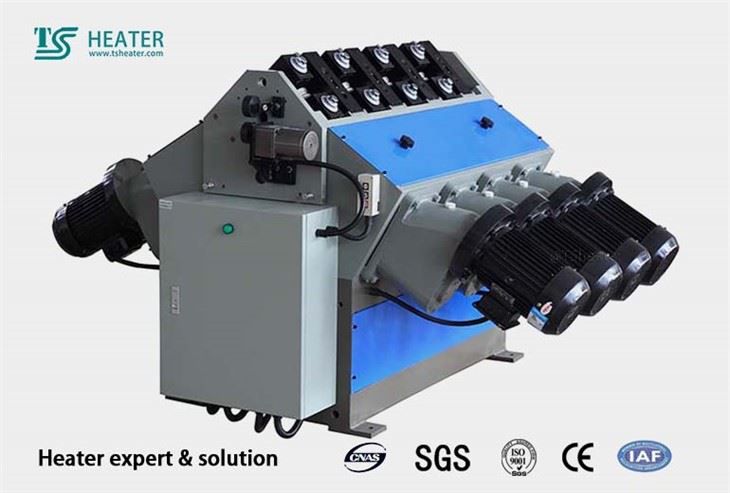

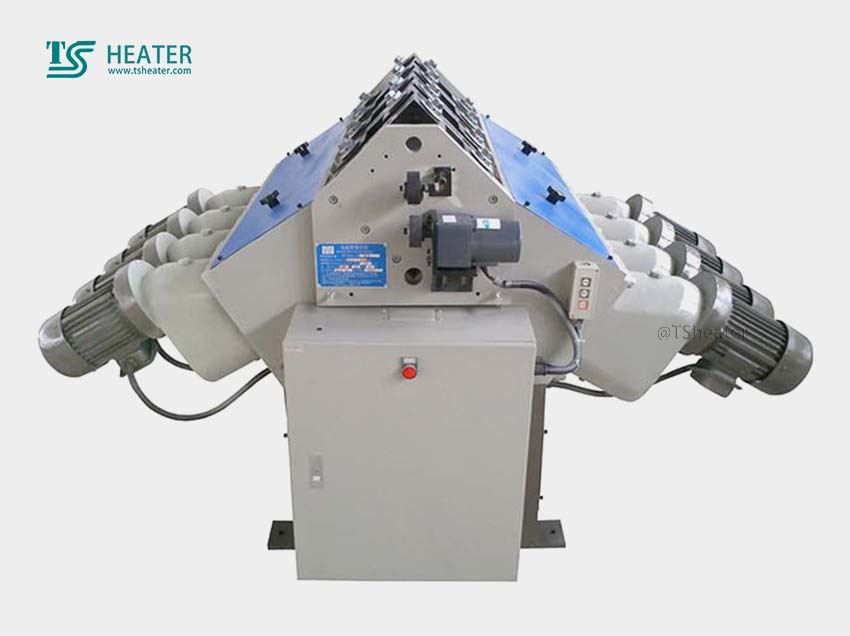

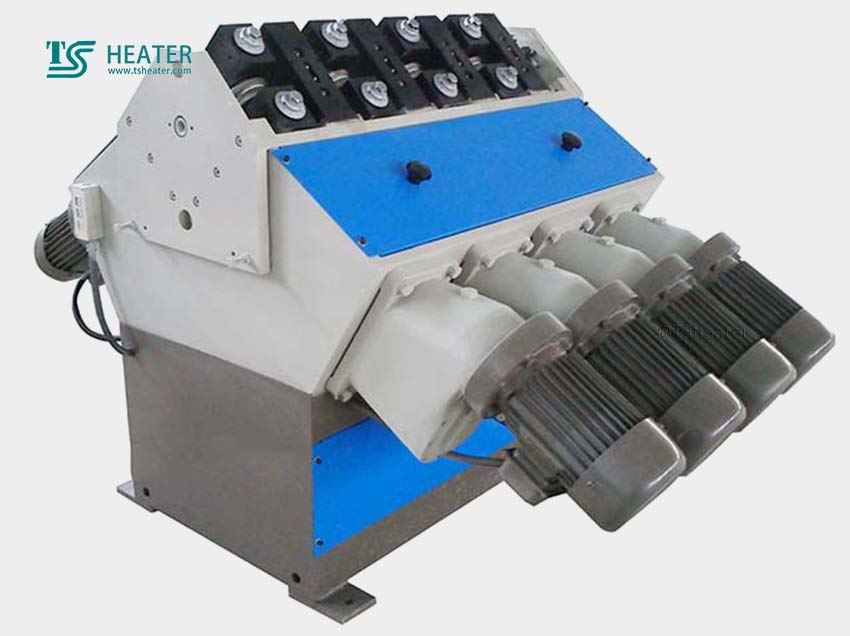

Roll-Reducing Machine is a machine for manufacturing heating tubes produced by our company. Other names: Tubular roll reducing mill machine for cartridge heating element.Roll-Reducing Machine in order to increase the torque output of the gear motor to meet the demand for reducing large diameter parts. Roll-Reducing Machine adopts a specially designed cylindrical double output gearbox. The motor is directly connected with the reducer, the reducer increases the unit power to 1.1KW, the total power increases to 9KW, the output speed reaches 70rmp, and the deceleration reaches 20m/min.
Roll-Reducing Machine is a machine for manufacturing heating tubes produced by our company. Other names: Tubular roll reducing mill machine for cartridge heating element.
Roll-Reducing Machine size: 1900x1200x1200 mm (manual measurement, for reference only)
Function: Compress the diameter of the heating tube and increase the density of the heating tube;
feature:
1) The power can be customized according to customer requirements. Conventional size: 1.1kw, 1.5kw, 2.2kw;
2) With large power, it is more suitable for high-density pipes, large-size pipes and long-size pipes;
3) The best reference range (mm): Φ6-Φ16mm
a: R<Φ8mm, the length is within 3 meters,
b: R:Φ8-12mm, the length is within 2 meters,
c: R>Φ12mm, the length is within 2 meters
(The above reference range data can make the service life of the equipment longer).
4) Pipe material: iron, aluminum, copper, stainless steel, etc.;
5) The shape of the tube village: round tube
6) Roll-Reducing Machine speed: uniform speed, non-uniform speed (according to customer requirements).
7) The roller parts have different sizes, which can compress different diameters. When different diameters need to be reduced, the relevant roller parts need to be replaced.
Application of Roll-Reducing Machine:
Compressed diameter for circular heaters, such as tubular heaters, and cartridge heaters.
Information you need to know to develop a Roll-Reducing Machine:
1) Pipe diameter before and after compression: for example Φ8-6.6mm
2) Reduce the length before
3) Voltage requirements: 1 phase in 220v, 3 phases in 380v (customizable)
4) Welcome to contact our customer service online, 24 hours online service.
Roll-Reducing Machine in order to increase the torque output of the gear motor to meet the demand for reducing large diameter parts. Roll-Reducing Machine adopts a specially designed cylindrical double output gearbox. The motor is directly connected with the reducer, the reducer increases the unit power to 1.1KW, the total power increases to 9KW, the output speed reaches 70rmp, and the deceleration reaches 20m/min.
