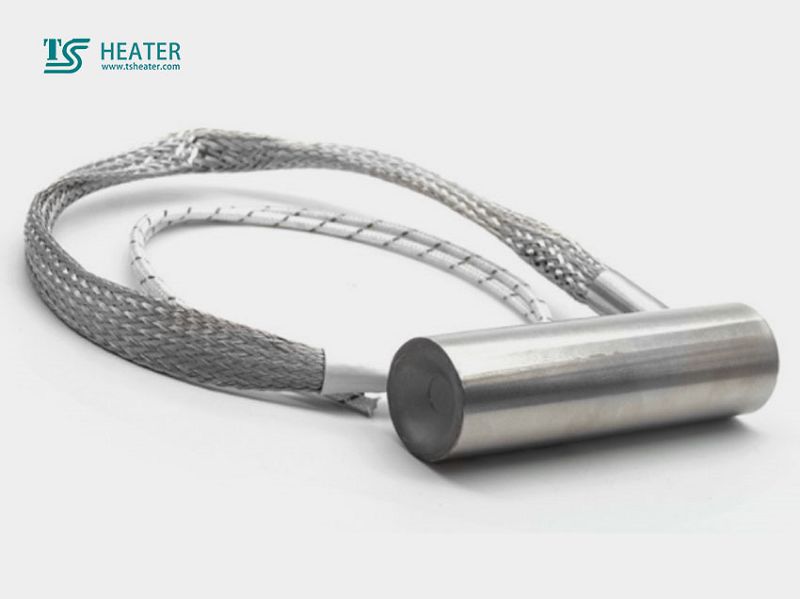

High Temperature Cartridge Heater,Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases.High Temperature Cartridge Heater
High Temperature Cartridge Heater，Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. High temperature cartridge heater can be used in a vacuum atmosphere with proper design guidelines. High Temperature Cartridge Heater
Performance capabilities :High Temperature Cartridge Heater
Part temperatures up to 1400°F ( 760° C ) on alloy 800 sheath
Watt densities up to 40W/cm2
Maximum voltage up to 480VAC, Minimum voltage up to 5VAC
Minimum diameter up to 3mm
Maximum diameter up to 35mm
Benefits Easy and economical to install
Designed with first-class materials
Maximized heat transfer
Easy to maintain
uniform temperatures
Oxidation and corrosion resistant
Durable

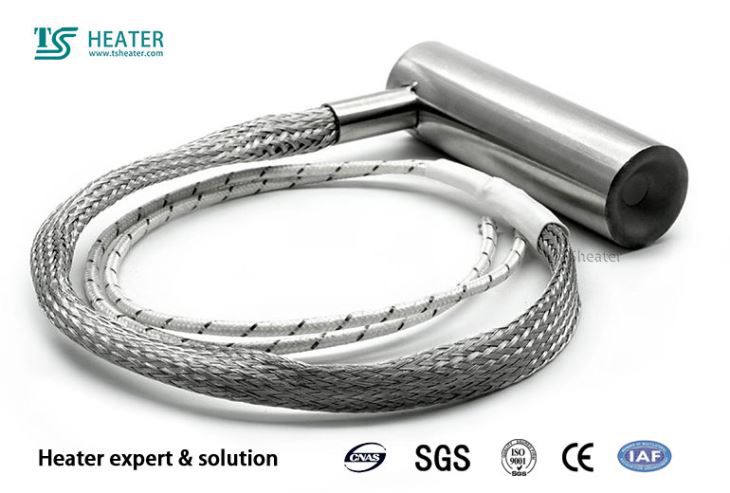

CE certificated issued by TÜV Rheinland
Technical Detail:High Temperature Cartridge Heater
1 Tube diameter: Φ3mm-Φ30mm

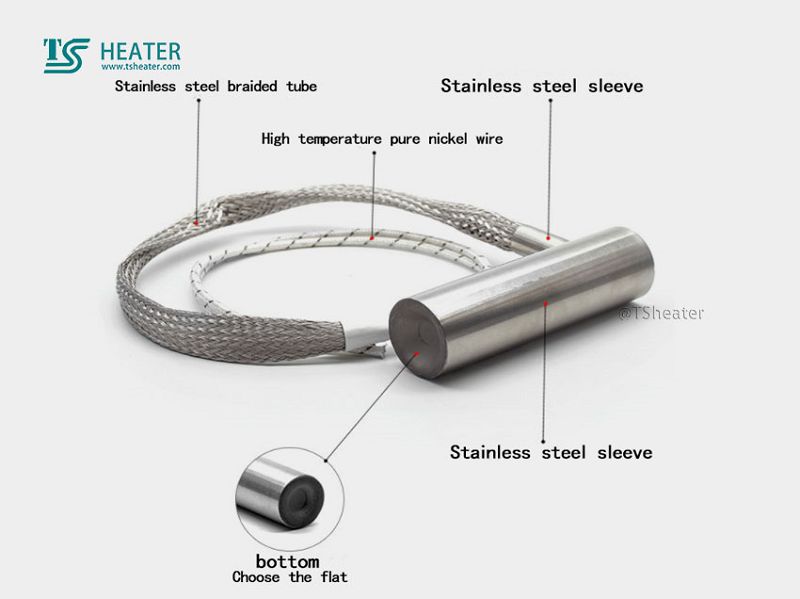

2 Tube Material:SS304;SS316,SS321,NICOLOY800 etc
3 Insulation Material:High-purity Mgo
4 Reisistance wire element:Ni-Cr or FeCr
5 Lead Connection Option: Crimped or Swaged leads

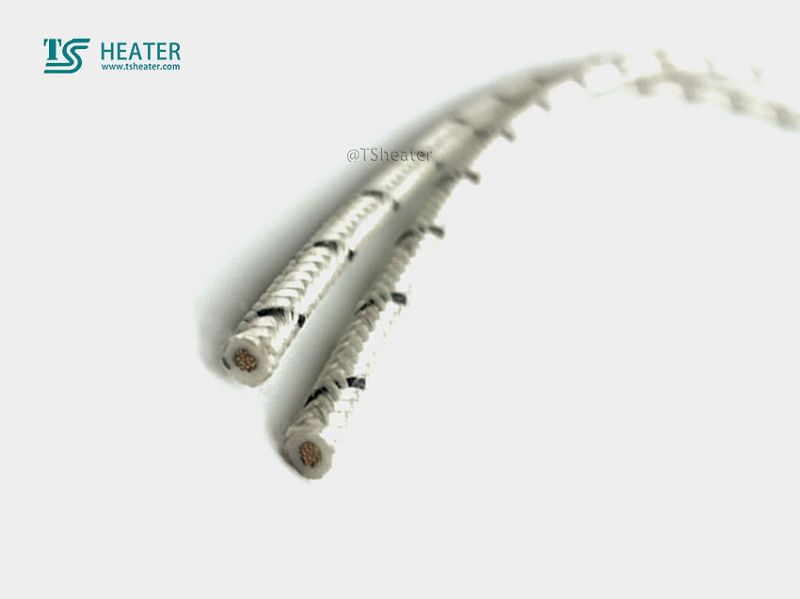

6 Lead and type of connection leads, 10" Fiberglass Standard(Wire options,silicone high temperature frberglass).

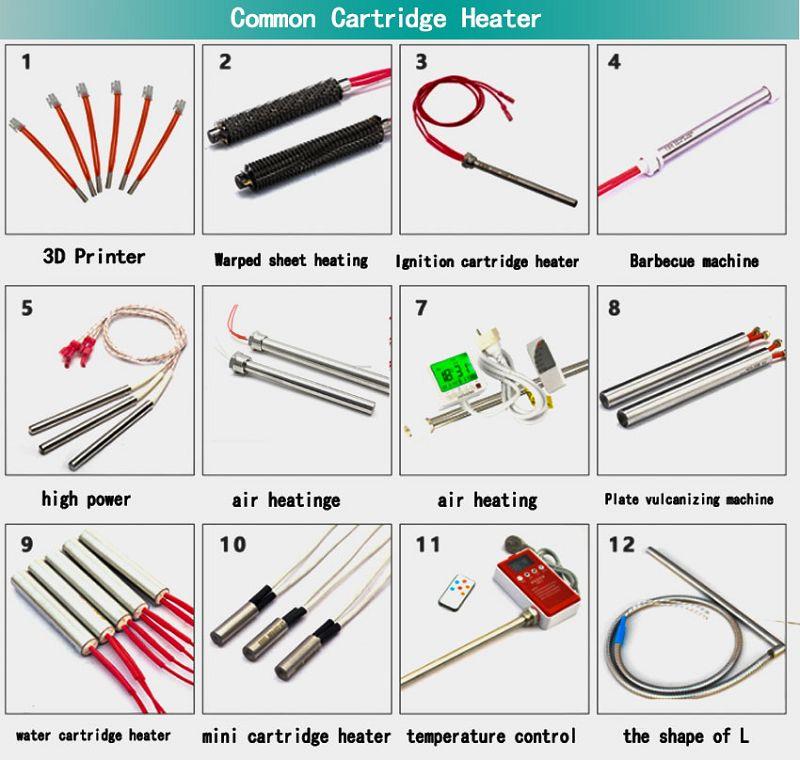

Various common Cartridge heater,Support customization
High Temperature Cartridge Heater

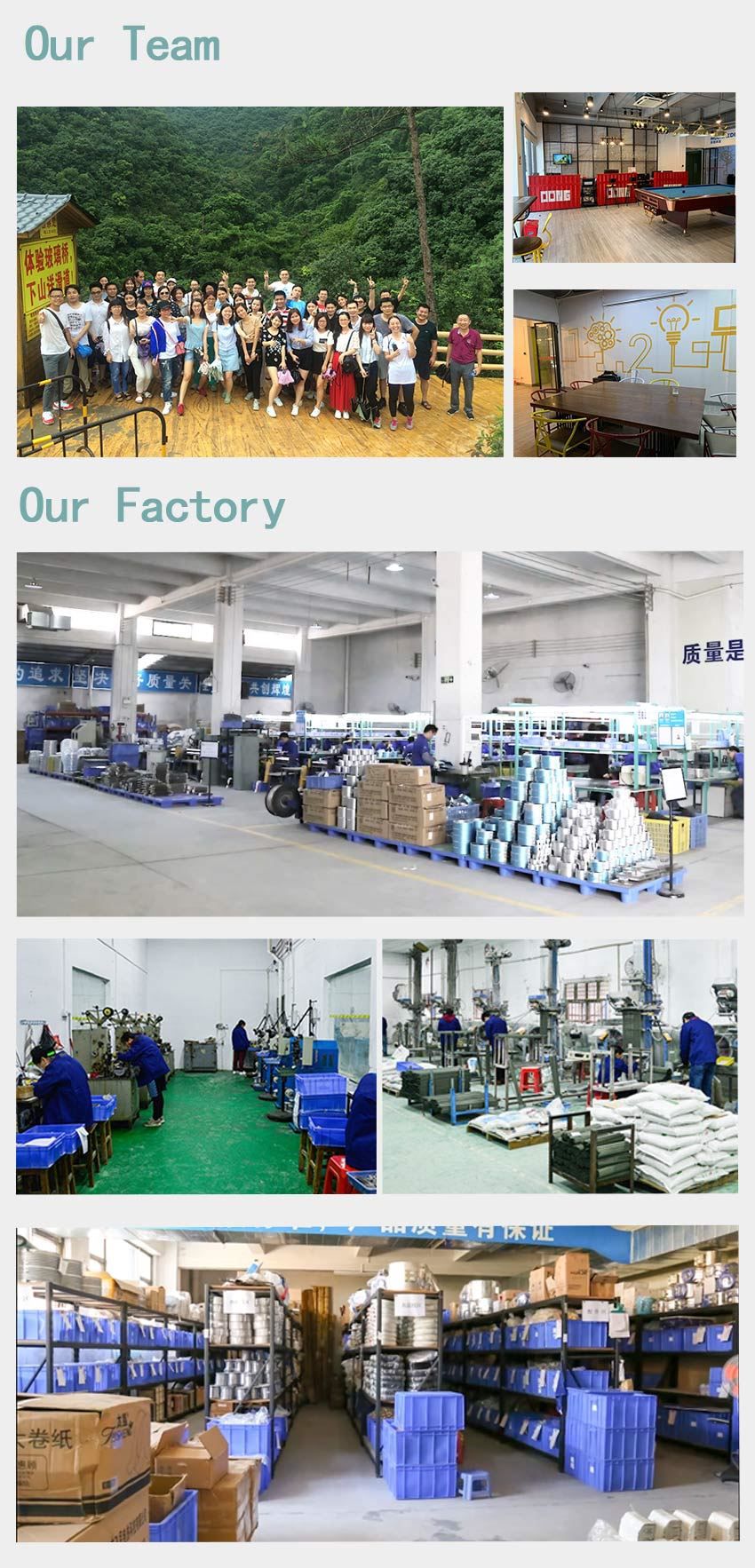

Our factory participates in the exhibition every year, and many customers have established long-term cooperation with us through the exhibition.
How to install cartridge heater?
1.Make a hole in the section that is to be heated
2.Ream a smooth hole for contact and for better heat transfer
3.Extend the hole through the section so that the unit can be driven out if you should need to r1emover it.
4.If making a through hole is impossible ,increase the size of the hole without exceeding the tolerances
5.Reduce the vibration and flexing of the lead wires to prolong service life
6.Prevent contamination from liquids by protecting the end of the heater
When ordering Cartridge Heaters, please specify the following information:
1.Type of Cartridge Heater ( please refer to Termination Options ).

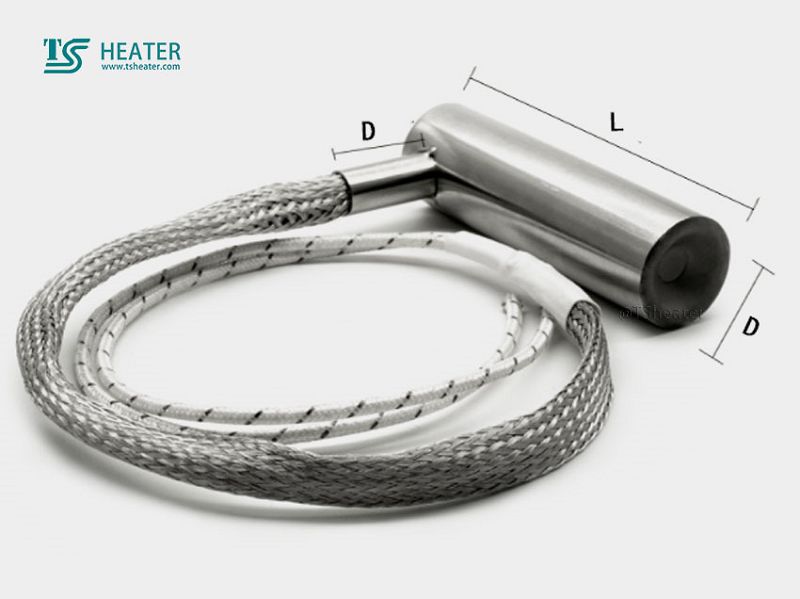

2.Diameter of Cartridge Heater.
3.Overall length for a straight Cartridge Heaters.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.
