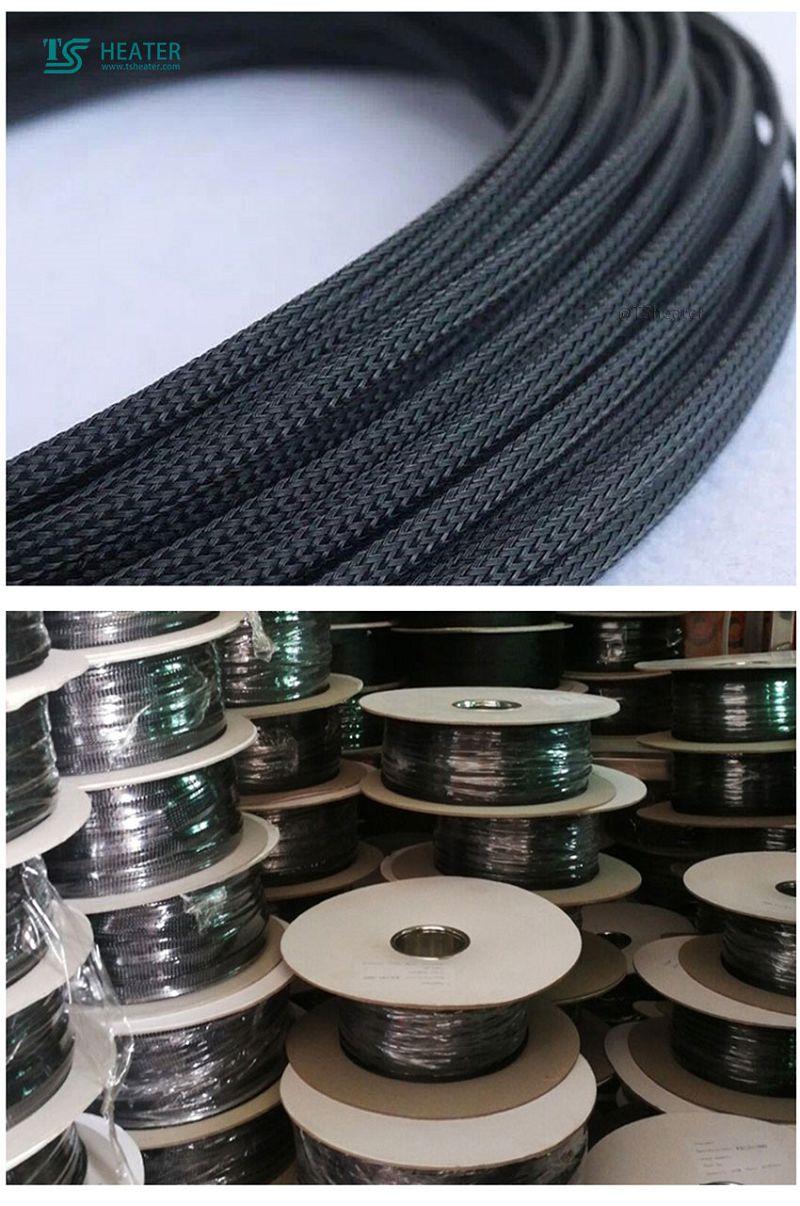

Carbon fiber sleeve is made of special carbon fiber yarn, which has amazing strength, high heat resistance and extremely light weight.Our carbon fiber sleeve will form itself to accommodate uneven or asymmetrical surfaces while providing full radial stability and torsion strength.High Temperature Sleeve
High Temperature Sleeve

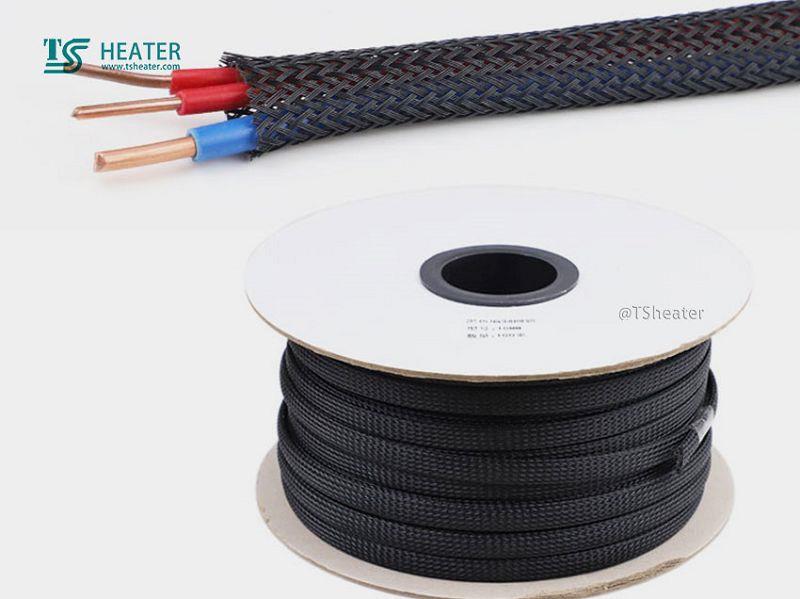

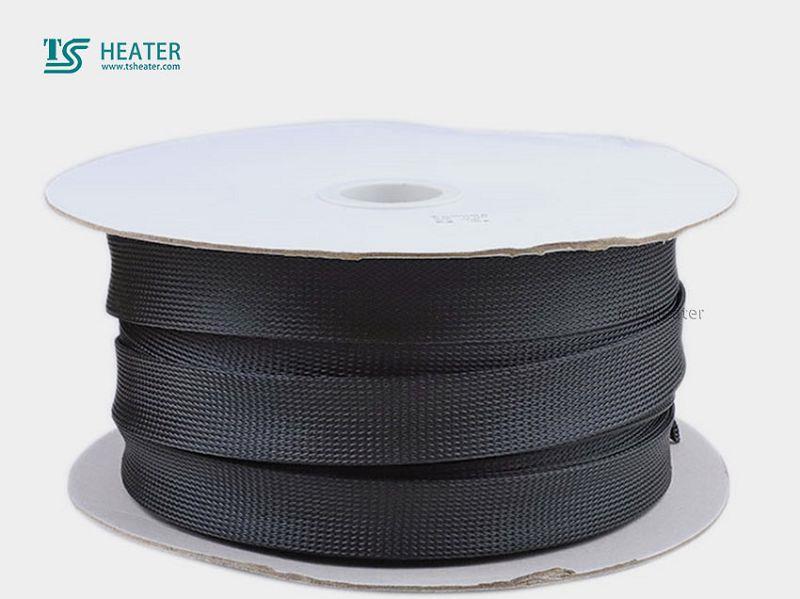

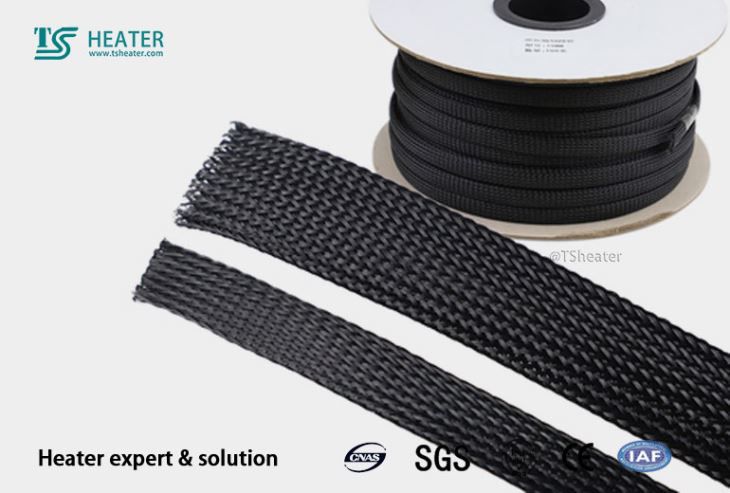

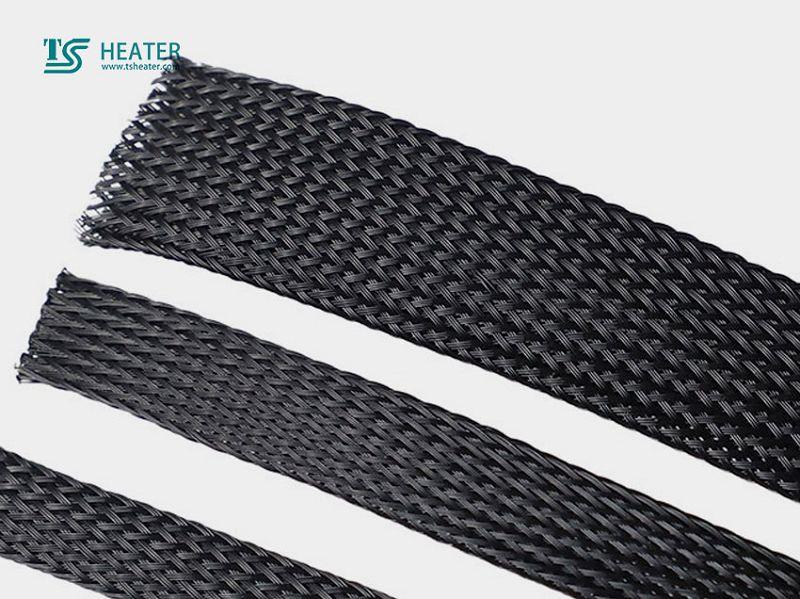

Carbon fiber sleeve is made of special carbon fiber yarn, which has amazing strength, high heat resistance and extremely light weight.Our carbon fiber sleeve will form itself to accommodate uneven or asymmetrical surfaces while providing full radial stability and torsion strength.
Application:
High Temperature Sleeve
It provides rugged protection for wires, harness and cable assemblies, pipes and hoses in aerospace, military and other high-tech applications.
Technical data:
Material: carbon fiber
Operating temperature :-269℃~ + 650℃
Combustibility: VW - 1
Standard color: black
Cutting tool: scissors
Other characteristics: electrical conductivity
Approval: RoHS
Part No. | Nominal size (W) | Expandable Range | Packing (L) | |
Min.(I) | Max.(O) | Standard spool | ||
CB-003 | 3 | 1 | 4 | 500m |
CB-006 | 6 | 5 | 8 | 300m |
CB-008 | 8 | 6 | 10 | 250m |
CB-0010 | 10 | 7 | 13 | 250m |
CB-0012 | 12 | 8 | 16 | 200m |
CB-0015 | 15 | 10 | 20 | 200m |
CB-0020 | 20 | 14 | 16 | 160m |
CB-0025 | 25 | 18 | 33 | 100m |
CB-0030 | 30 | 20 | 19 | 100m |
CB-0040 | 40 | 30 | 52 | 100m |
CB-0050 | 50 | 40 | 65 | 100m |
High Temperature Sleeve
Note:
1.Nominal dimension refers to plane width.
2. Special packing, size and color are available upon request.
3. All values are average or typical, excluding custom size.
