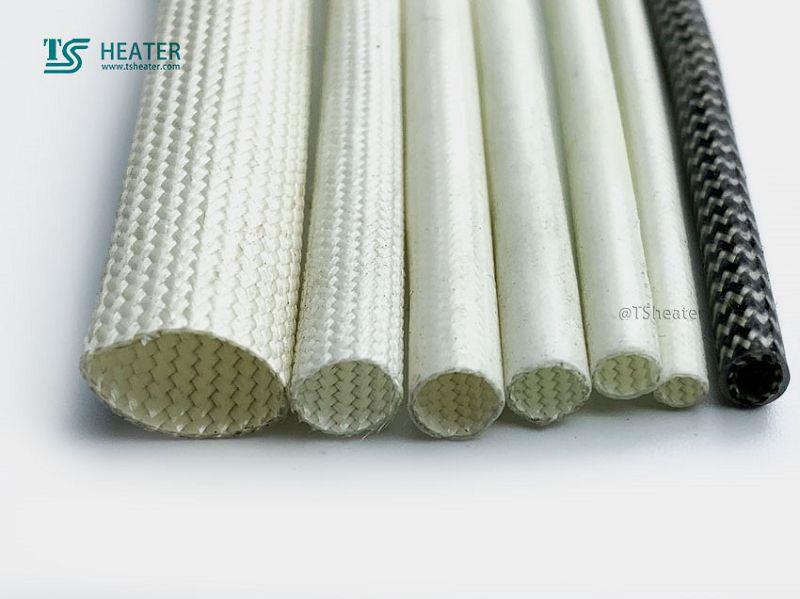

This product is made of glass fiber woven tube coated with polyurethane resin and treated at high temperature.Polyurethane resin coating and high temperature treatment make polyurethane glass fiber sleeve with good flexibility and elasticity Fiberglass Sleeve
Fiberglass Sleeve

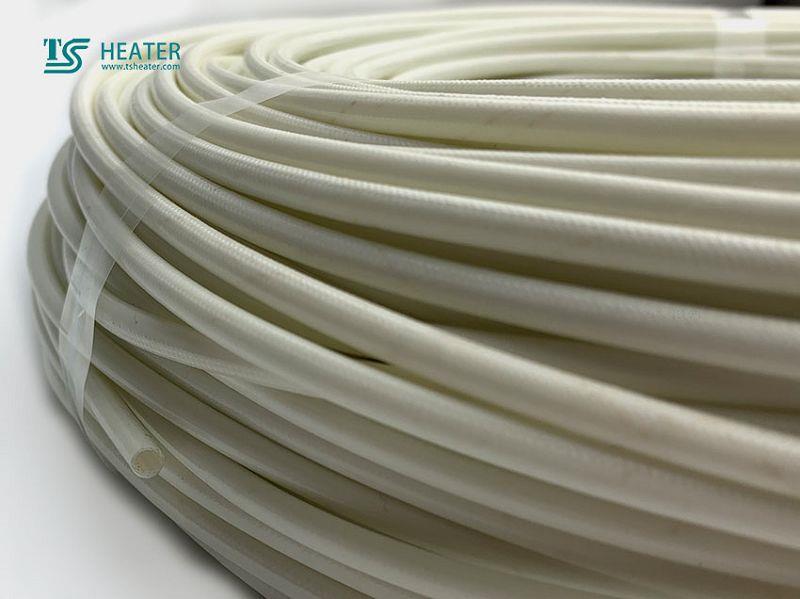

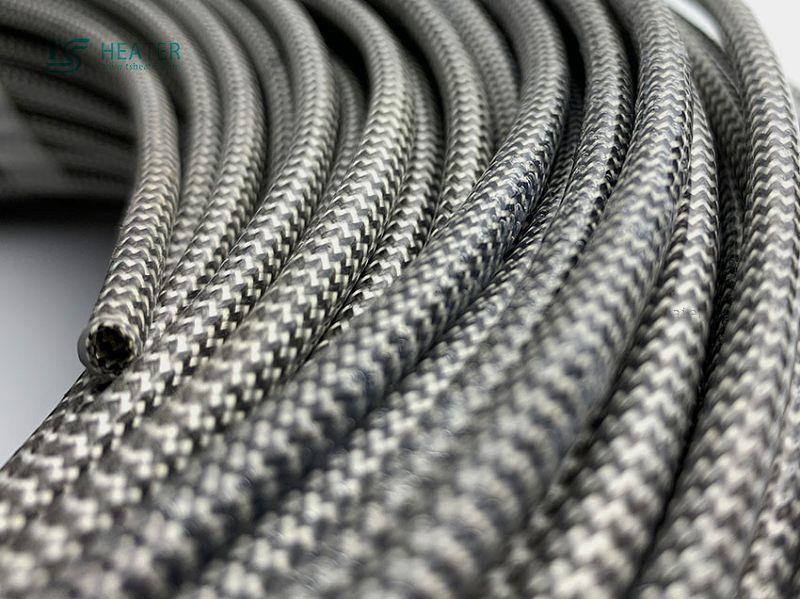

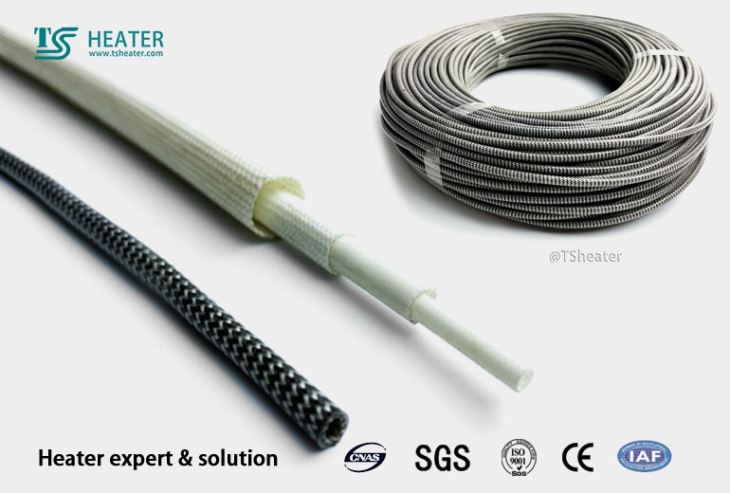

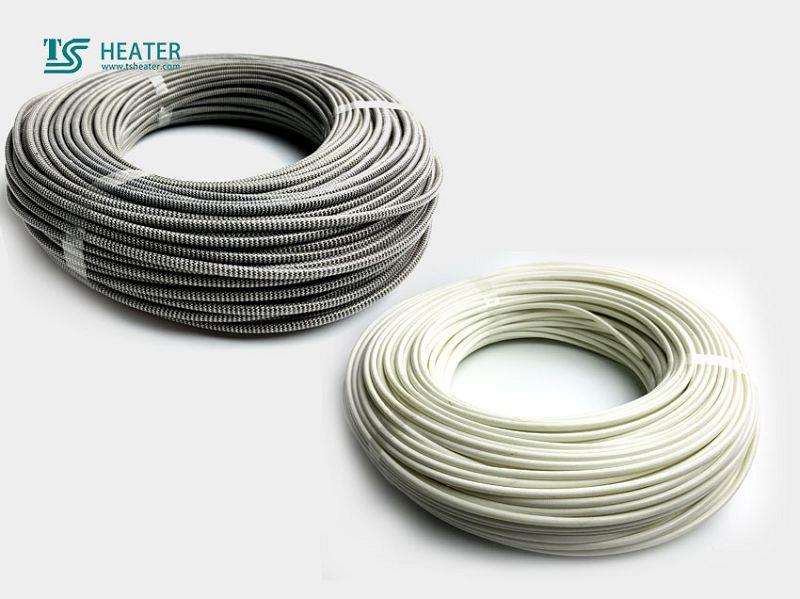

This product is made of glass fiber woven tube coated with polyurethane resin and treated at high temperature.Polyurethane resin coating and high temperature treatment make polyurethane glass fiber sleeve with good flexibility and elasticity, reliable mechanical performance, heat, water and pressure resistance.
Application:
Fiberglass Sleeve
Details
Place of Origin:GuangZhou, China
Brand Name:TS
Model Number:ts-w014
Type:Insulation Sleeving
Material:Fiberglass
Application:High Temperature
Rated Voltage:7-25KV
Tensile Strength:Excellent
Name:fire resistant insulation
Color:Red/black/blue/grey
Thickness:1.0mm-6.8mm
Inner diameter:4mm-150mm
Temperature:-75C-550C
Advantages:Fire proof/acid and alkali resistant
Certification:ISO9001/SGS
Usage:High Temperature Protection
Fiberglass Sleeve
Inside Diameter | Wall Thickness | Standard Package | |
Nominal(mm) | Tolerance (mm) | ||
φ0.5 | +0.2, -0.1 | ≥0.30 | 200 |
Φ1.0 | +0.2, -0.1 | ≥0.30 | 200 |
Φ1.5 | +0.2, -0.1 | ≥0.30 | 200 |
Φ2.0 | +0.2, -0.1 | ≥0.30 | 200 |
Φ2.5 | +0.3, -0.1 | ≥0.35 | 200 |
Φ3.0 | +0.3, -0.1 | ≥0.35 | 200 |
Φ4.0 | +0.3, -0.1 | ≥0.35 | 200 |
Φ4.5 | +0.3, -0.1 | ≥0.40 | 100 |
Φ5.0 | +0.3, -0.1 | ≥0.40 | 100 |
Φ6.0 | +0.3, -0.1 | ≥0.40 | 100 |
Φ7.0 | +0.3, -0.1 | ≥0.40 | 100 |
Φ8.0 | +0.3, -0.1 | ≥0.45 | 100 |
Φ9.0 | +0.3, -0.1 | ≥0.45 | 100 |
Φ10.0 | +0.3, -0.1 | ≥0.55 | 100 |
Φ12.0 | +1.0, -1.0 | ≥0.55 | 50 |
Φ14.0 | +1.0, -1.0 | ≥0.55 | 50 |
Φ16.0 | +1.0, -1.0 | ≥0.55 | 50 |
Φ18.0 | +1.0, -1.0 | ≥0.55 | 50 |
Φ20.0 | +1.0, -1.0 | ≥0.65 | 25 |
Φ25.0 | +1.0, -1.0 | ≥0.65 | 25 |
Φ30.0 | +1.0, -1.0 | ≥0.65 | 25 |
Fiberglass Sleeve
Delivery & Enquiries:
Most items are available for delivery in 3 to 7 working days. However, Ts heater do offer additional emergency services for customers who are in a breakdown situation. This includes a 48hr services on Mica products, Cartridge Heaters and Ceramic Knuckle Heaters. For all enquires please contact a member of our sales team who will be happy to assist.
