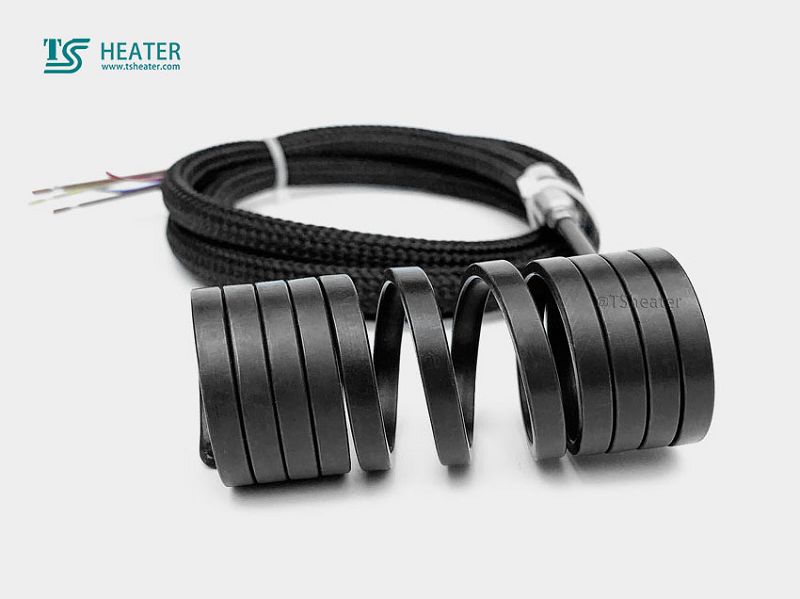

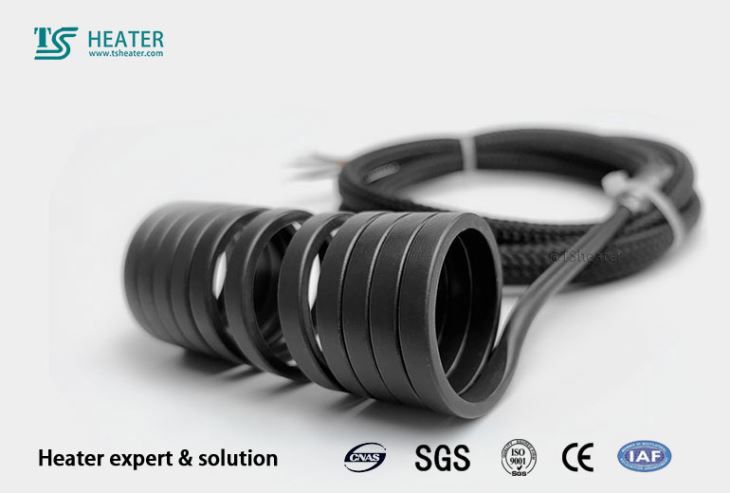

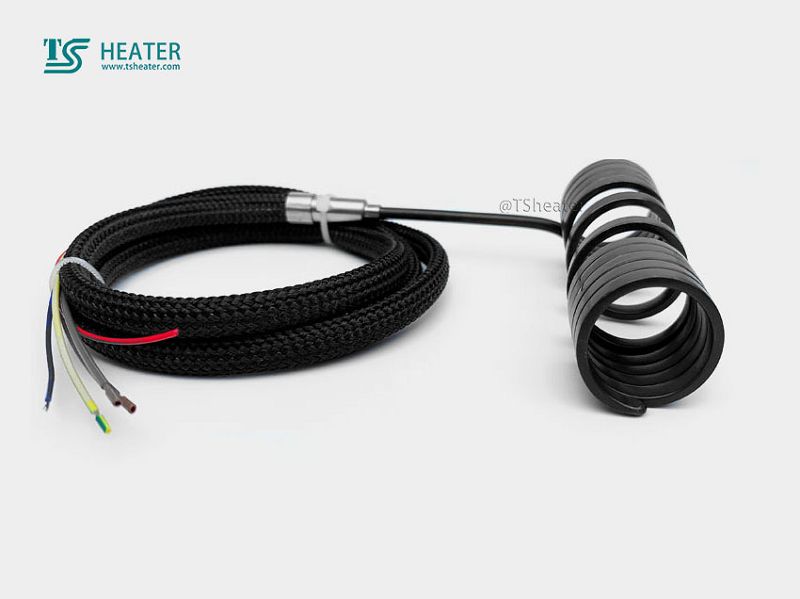

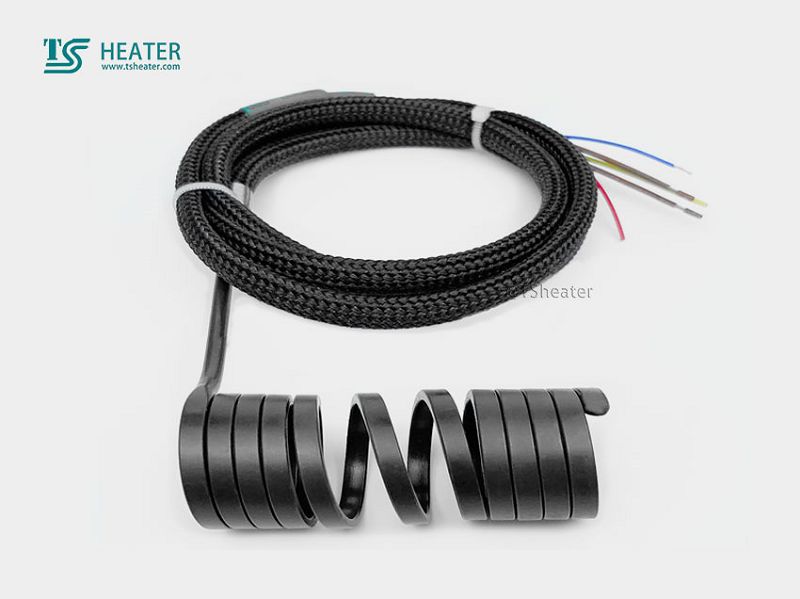

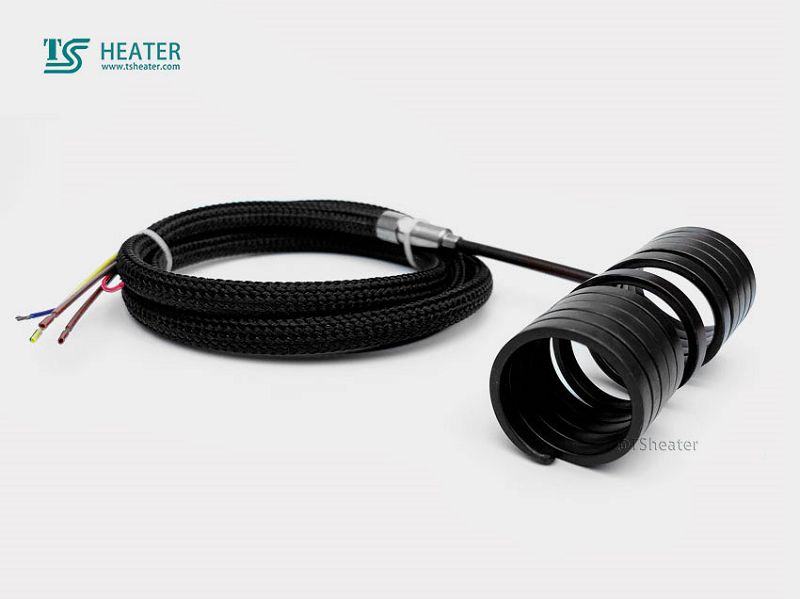

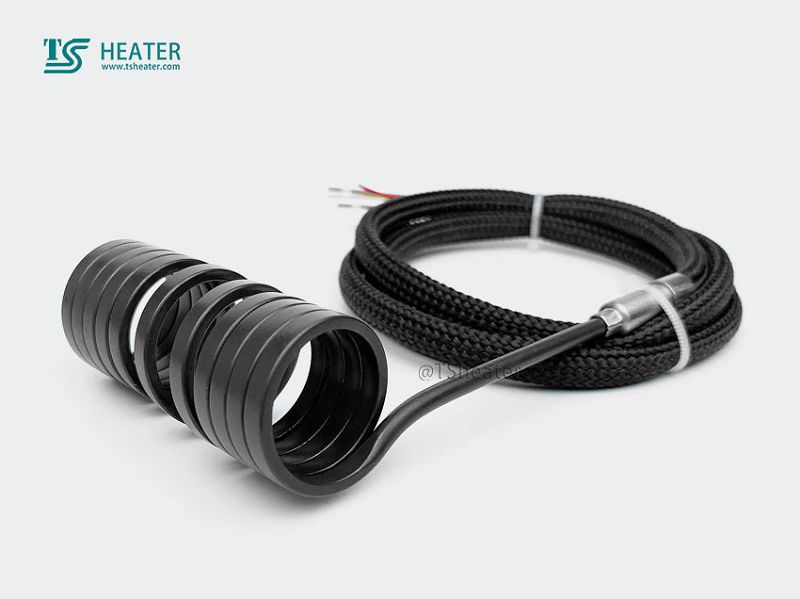

Hot Nozzle Runner Coil Heater.It can be offered with J ytpe thermocouple or K type thermocouple.Can be produced according to customer needs.Coil heaters are used in hot runner moulds, sprue bush and on nozzles.Hot Nozzle Runner Coil Heater
Hot Nozzle Runner Coil Heater.
It can be offered with J ytpe thermocouple or K type thermocouple.Can be produced according to customer needs.Coil heaters are used in hot runner moulds, sprue bush and on nozzles.
They provide a wide contact area which helps in achieving high levels of heat transfer and thermal conductivity.
Hot Nozzle Runner Coil Heater
Working temperature of 700 deg C is attainable and the optimal insulation helps in achieving long life.
1.High Efficient Spiral Cable Hot nozzle runner coil heater also know as cable heaters can be formed to a variety of shapes as required by its many application.
2.Frequenty though,Hot nozzle runner coil heater are configured as samll diameter,high performance nozzle heaters that are fully annealed.
3.Coil heates are use on injection molding machine nozzles and sprue bushings supplying bushings supplying 360 degree of heat with optional distributed wattage available.
4.Coil heaters are also used as cartridge heaters where irregular size bores are found.A straight,round cable heater can snake through a seal in packaging equipment installations. Hot Nozzle Runner Coil Heater
Heating section | 2.2x4.2mm 3x3mm 3.4x3.4mm 3.5x3.5m 4x4mm |
Heating coil ID | 8mm~40mm |
Heating ring height | 10mm~200mm |
Voltage | 15V~380V |
Wattages | 200W~3000W |
Build-in thermocouple power | With or without J/K thermocouple |
Lead wire | 500/1000/1200/1500/2000mm |
Section Area:Hot Nozzle Runner Coil Heater
3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4,4.20 x 2.20,4.20 x 2.50
Maximum Sheath Temperature: 700°C-1100°C
Die Electrical Strength: 800V A/C
Thermocouple: J type (Standard) or K type
Length Tolerance (Straight): +/-5%
MOQ: 1 PCS
Sheath Material | Cr Ni-Steel |
Insulation Material | Mgo rods |
Resistance Wire | Cr 20Ni 80 |
Maximum Sheath Temperature | 700° |
Die Electrical Strength | 800V |
Insulation | ＞5MW |
Length Tolerance (Straight) | 4% |
Thermocouple | K or J type thermocouple |
Wattage Tolerance | +10%(+5% Available Upon Request) |
Resistance Tolerance | +10%(+5% Available Upon Request) |
Unheated Length | 50mm (Standard) |
Dimensional Tolerance | Coil Length +1mm |
