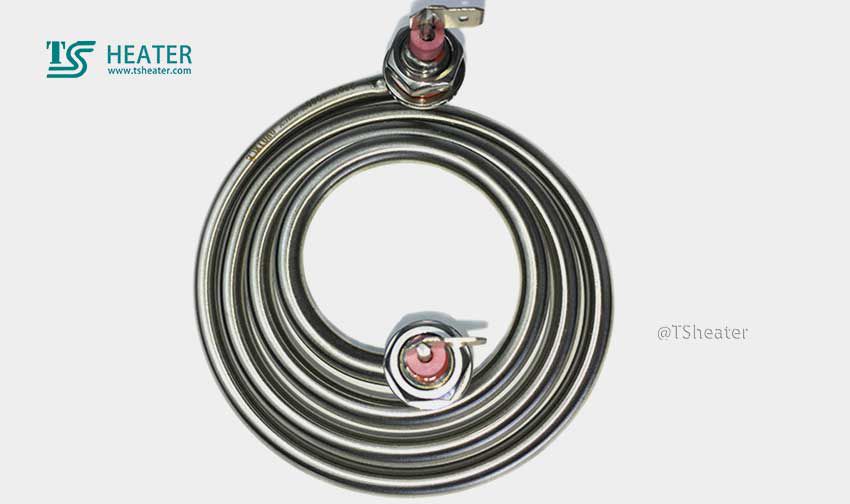

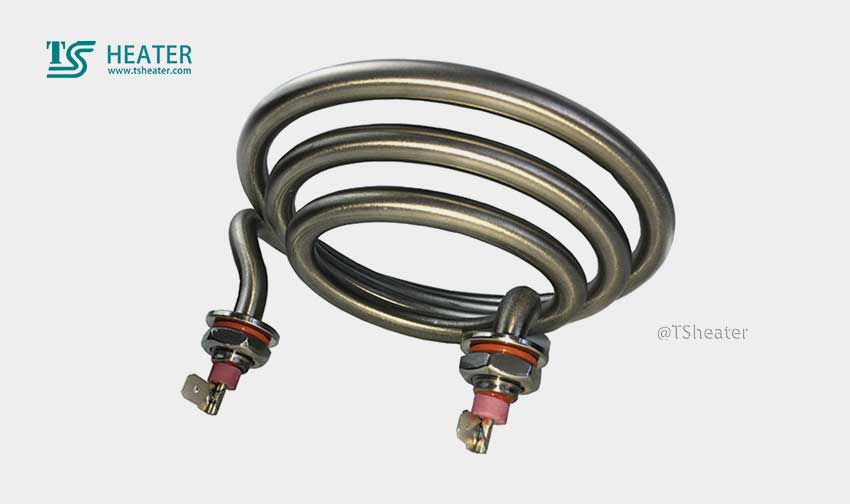

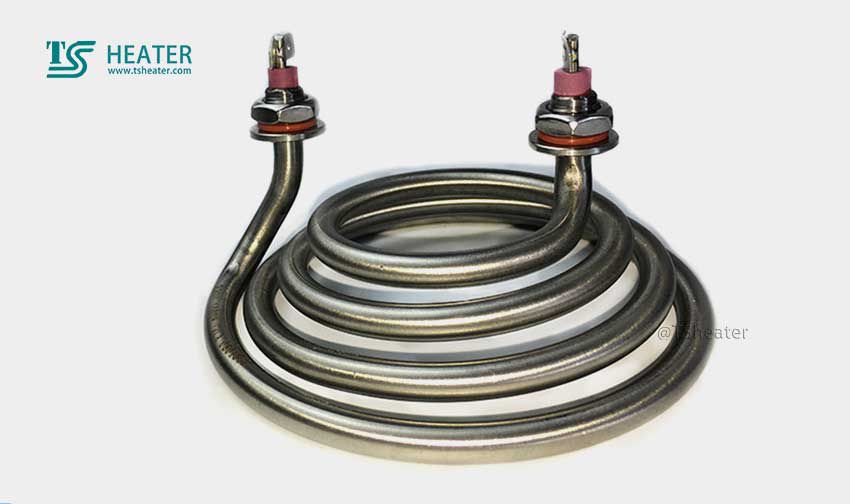

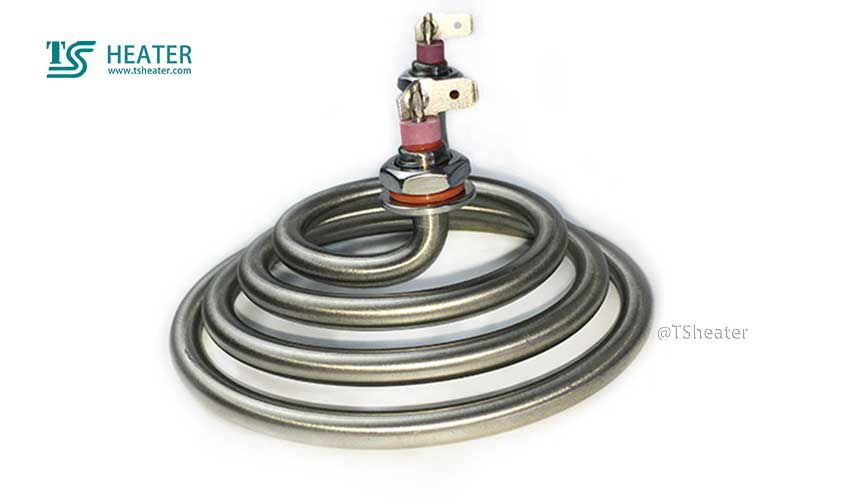

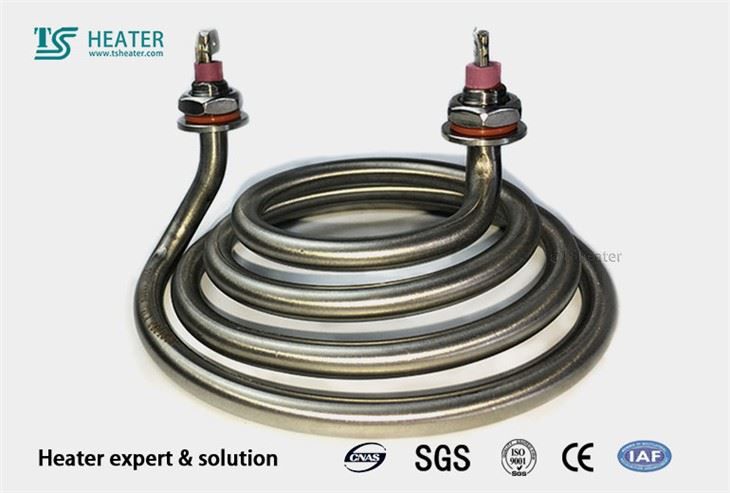

Our company specializes in developing all kinds of electric heating tubes with "strange shapes, different shapes, and difficult shapes". There is no standard and it can be customized. The immersible heating element can also be customized according to customer requirements.
Main technical parameters of immersible heating element
1. Shell material: sus304, sus321, sus10S, Ingle 800, Ingle 840, etc.
2. Heating wire material: 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2, Cr20Ni80, etc.
3. Insulation filler: low temperature, medium temperature, high temperature insulating magnesium oxide powder, etc.
4. Rated voltage: 110V, 220V, 380V, etc.
5. Power: The power is determined according to the total length of the heating zone of the immersible heating element and the use environment.
6. Pipe diameter: 8mm-30mm
7. Length: According to customer requirements
Product advantages of immersible heating element
1. Non-standard customization and flexible production to meet the heating requirements of various equipment.
2. Working temperature can be as high as 760°C
3. Flexible fasteners can be added
4. Our products have obtained CE certification and are exported to various countries.
