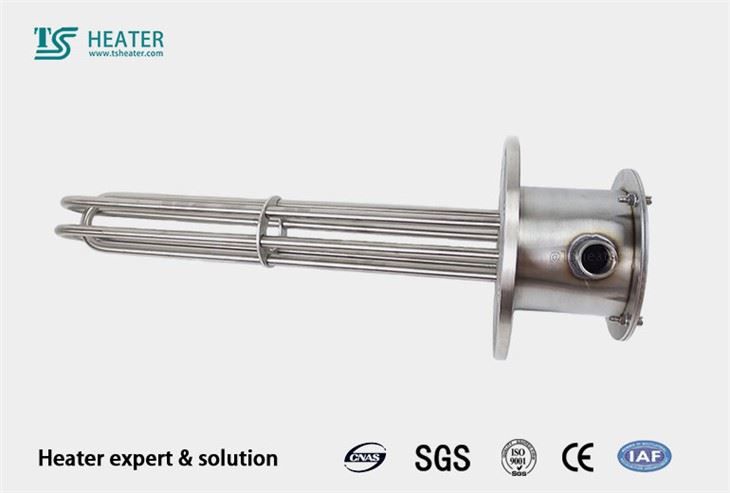

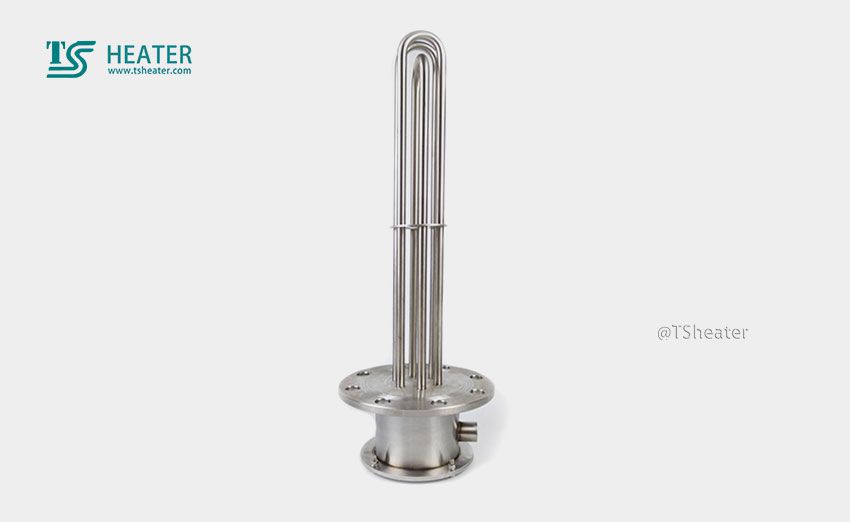

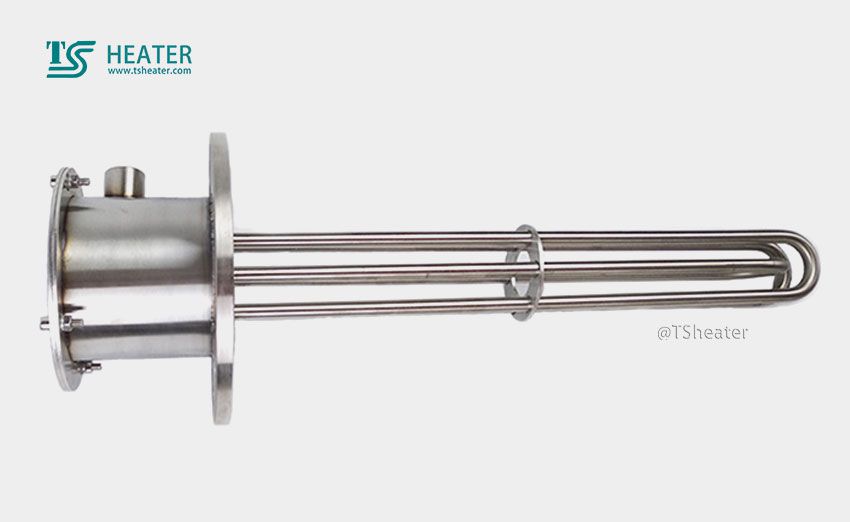

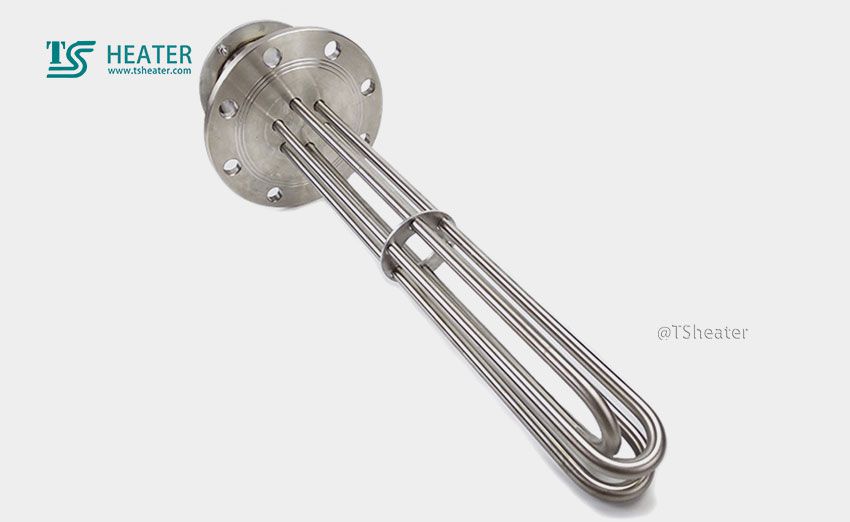

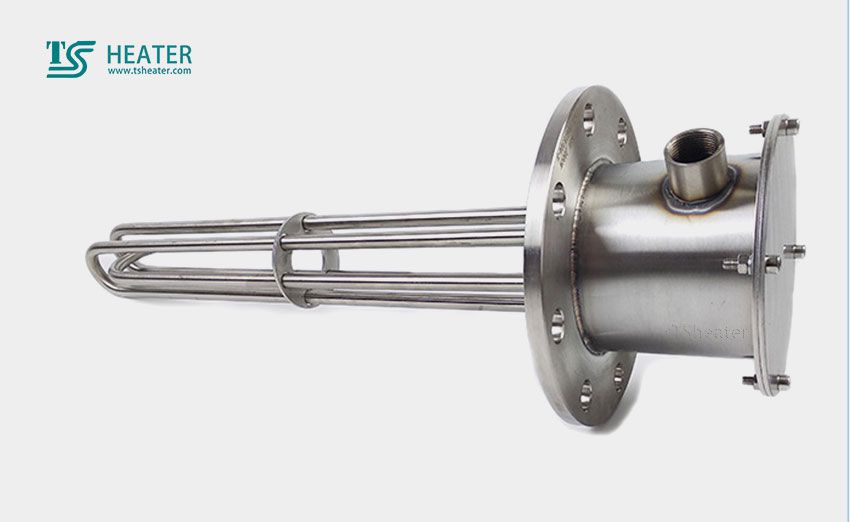

The immersion heater flange is generally designed and processed according to customer requirements. The power can be customized from 0-90000KW (explosion-proof up to 2000KW).
Description of immersion heater flange:
Design and customization of immersion heater flange:
The immersion heater flange is generally used in the working environment of heating liquids. Before customizing the design, customers need to inform the main components of the specific heated liquid, and the ideal installation method so that we can set the cold zone of the flat flange type electric heating pipe, and also need to inform us The pressure of the specific working environment is convenient for us to choose the pipe diameter, wall thickness and flange thickness of the heating pipe for you.
The material and production process of the immersion heater flange
1. The voltage and power can be customized.
2. Pipe diameter: 8mm-20mm
3. Flat flange: According to different pressure, choose different flange standard sizes. Of course, in the design and production process, in order to reduce costs, the flange thickness will be changed without affecting the life. You can consult the sales staff for details.
4. Usually 1, 2, 3-12, etc. (usually a multiple of 3) U-shaped pipes are combined by TIG argon arc welding on the flange
5. Tube shell material selection: 10# carbon steel, stainless steel, etc. according to customer requirements
6. Tube shell sheath selection: The surface of the metal tube shell can be coated with anti-corrosion or anti-scaling paint, which can effectively enhance the corrosion resistance and anti-scaling performance.
7. Pipe shell sheathing process: liquid spraying and electrostatic powder spraying are available. The electrostatic powder-coated heating tube directly solves many of the problems of the Teflon casing heating tube, and can be used as a complete replacement with better results.
8. Flange material: 10# carbon steel, stainless steel
9. Junction box: ordinary FRP cover or explosion-proof cover are available
10. Electric heating wire material selection: generally iron-chromium-aluminum wire (Beijing Shougang), nickel-chromium wire (generally 2080 resistance wire, etc.). The choice of the two depends on the customer's working environment (temperature and vibration).
