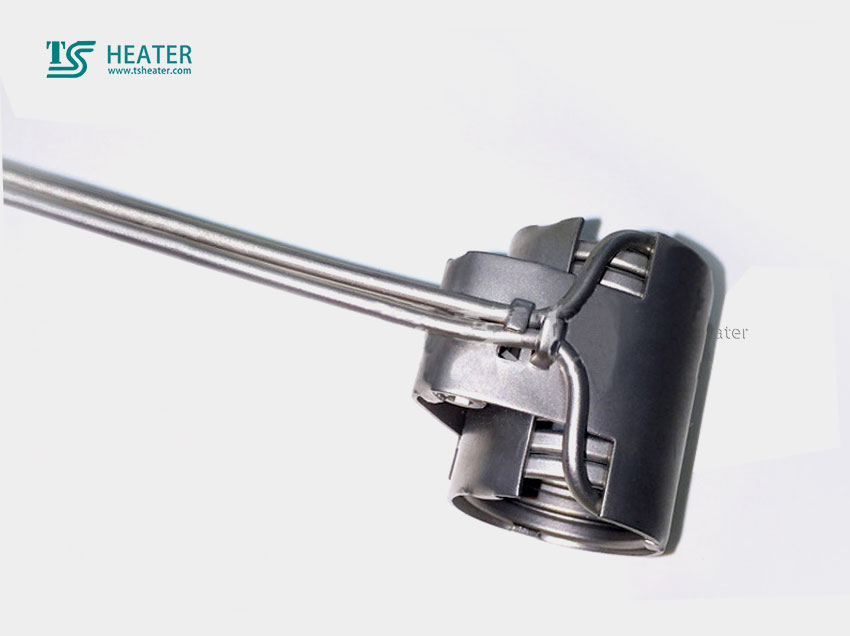

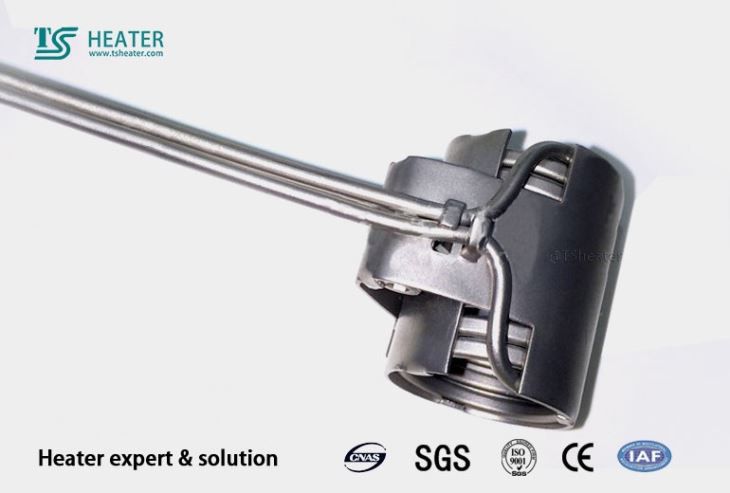

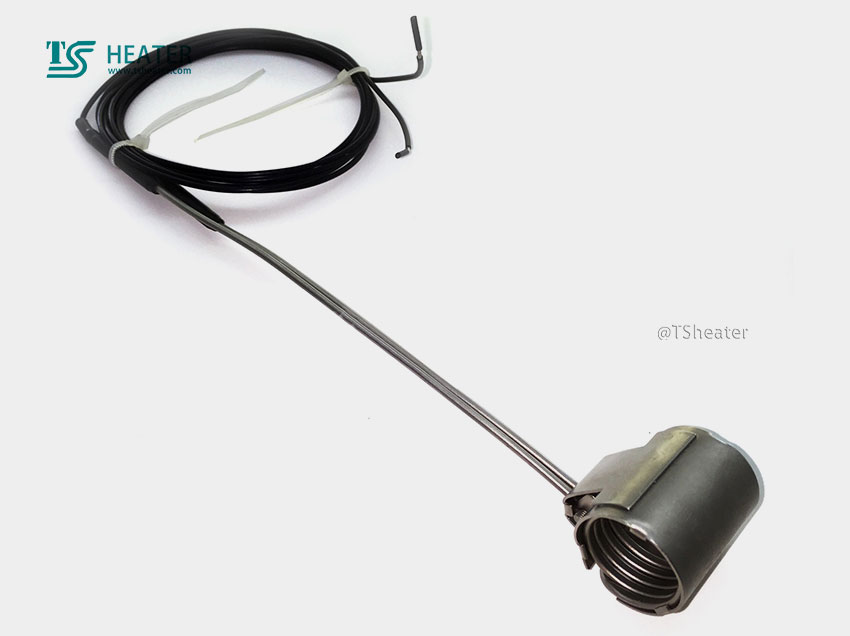

Injection Molding Runner

Specifications：Injection Molding Runner

The coil heating tube (hot runner heater) is made of ni-cr alloy heating resistance wire, which is placed in the chrome-nickel steel tube filled with MgO powder. After compaction, heat transfer is faster and more effective

Features:Injection Molding Runner

5×5 4.5×2.7 4× 2.2 4×2 3.5×3.5 3.3×3.3 3×3mm

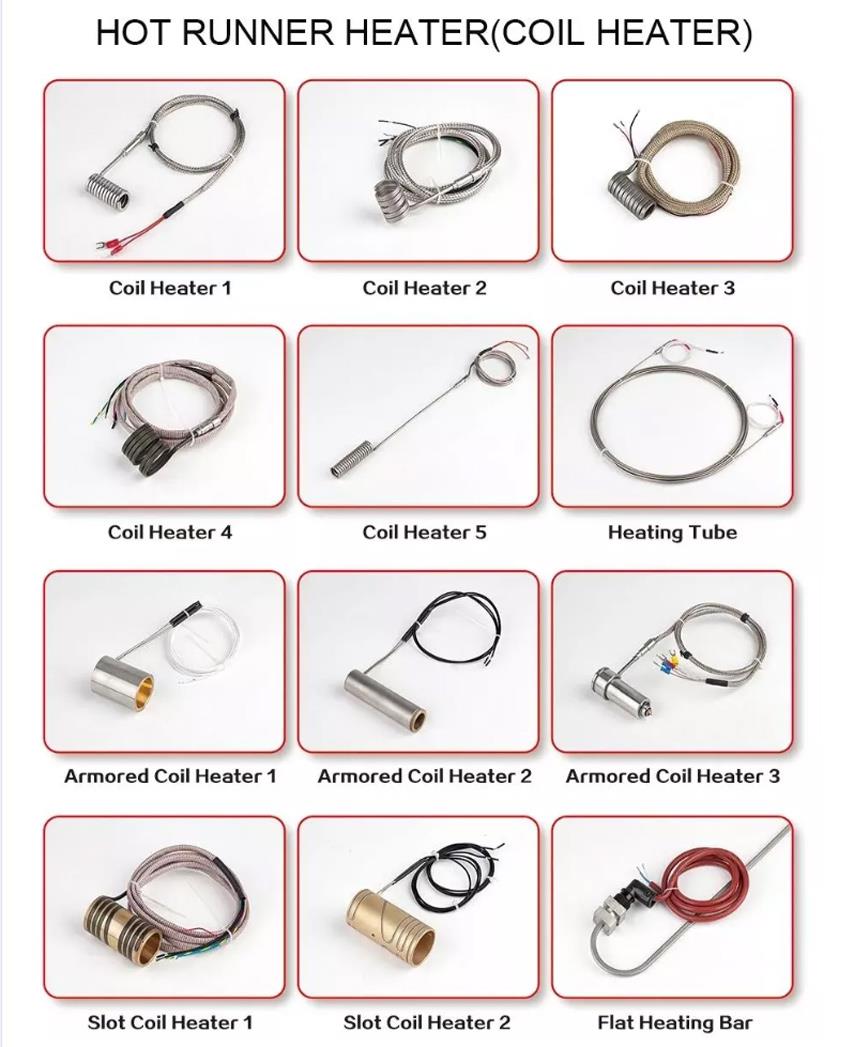

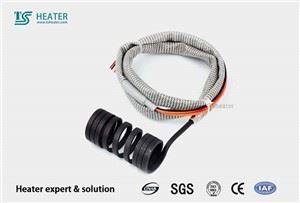

coil heater/injection molding runner

heating resistance wire :Ni Cr 80-20

sheath material :Cr nickel steel, hose (SS304 and SS316)

Insulation material: adopted

maximum sheath temperature :700℃

mold electrical strength :800V A/C

Insulation :> 5 mw

thermocouple: type J (standard) or K

length tolerance (straight):5%

Applications:Injection Molding Runner

injection molding runner

Squeeze the point

plastic processing machinery and molds

food processing machinery

Packaging equipment

Run hot nozzle cutting and sealing rods

Medical equipment

rod, tube, tube heating

heating gas and liquid

Semiconductor manufacturing
