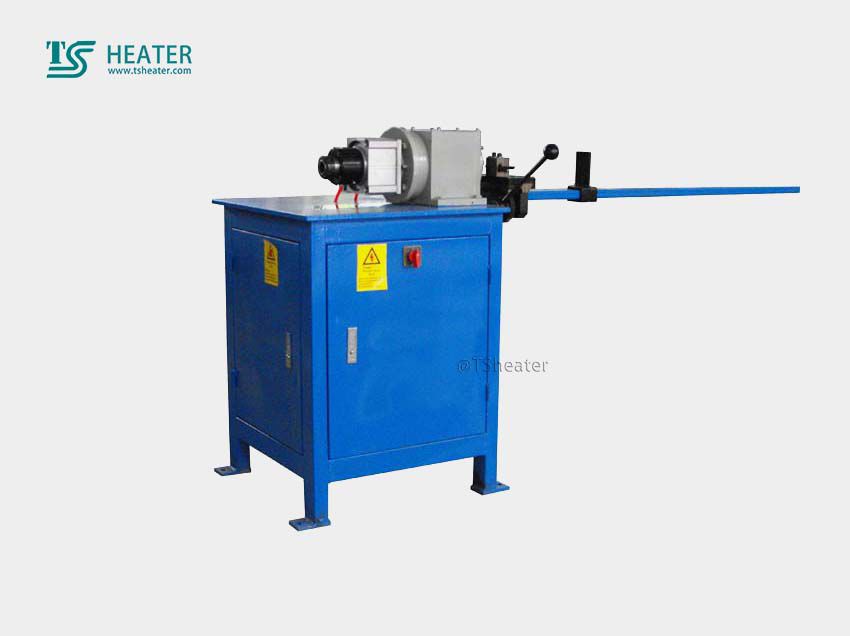

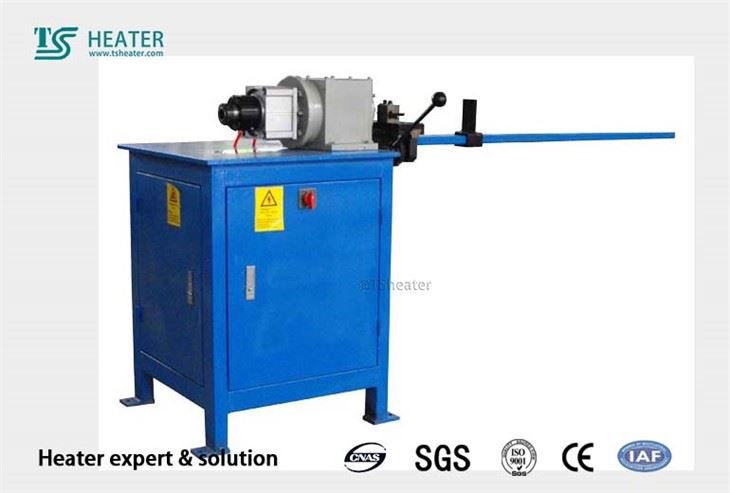

The pipe cutting machine is a high-quality product produced by us, which is used to cut the heating pipe. The production efficiency of the pipe cutting machine is very high, and it can cut about 10,000 in 8 hours.
The pipe cutting machine is a high-quality product produced by us, which is used to cut the heating pipe. The production efficiency of the pipe cutting machine is very high, and it can cut about 10,000 in 8 hours.
Number: FHCT-15
technical parameter:
Motor power: 380V 50HZ 750W
Speed: 900rpm 1800rpm
Maximum inner diameter: Φ15 mm
Air source: 0.6Mpa, can clean compressed air at the same time
Machine volume: 1140 * 870 * 720mm
CT-15 pipe cutting machine:

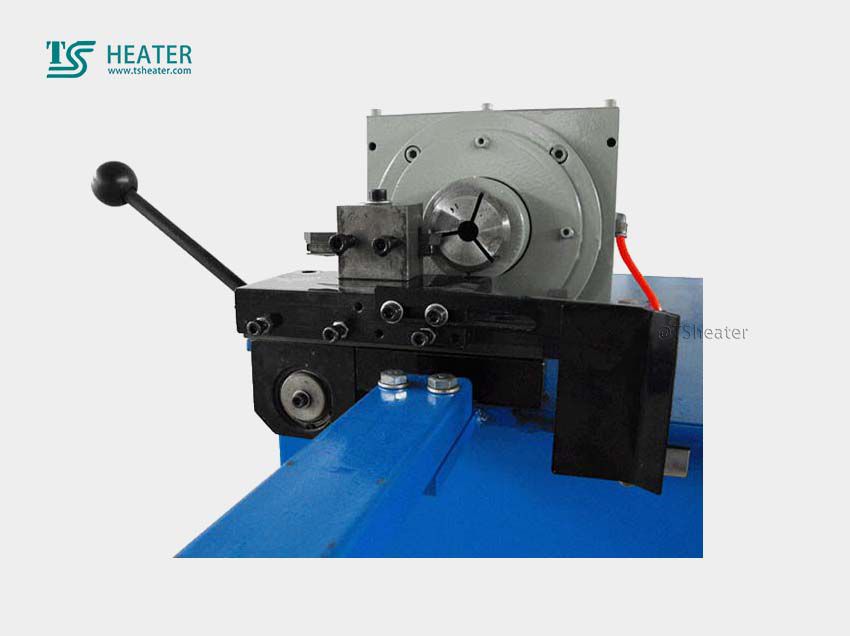

1) CT-15 pipe cutting machine uses a set of rotating fixtures.
2) The tube is rotated by the elastic chuck.
3) The slicer blade will cut the tube, which is controlled by the blade angle. There is no burr on the end face of the cut tube, which solves the cleaning problem.
4) The pneumatic mechanism controls the elastic chuck and works with the cutter. The production efficiency is very high. About 10,000 pieces can be cut in 8 hours.
5) The limit mechanism is used to adjust and control the cutting length.
6) When using Pipe Cutting Machine, users must make their own charging barrel and bracket according to the center height of the machine.
Power: 0.75KW
Cutting speed: According to the specifications of the pipe, usually about 10,000 pieces/8 hours
Can cut tube: Φ5-Φ15mm (can be customized)
Motor power: three-phase 380V 50HZ (can be customized)
