DG30 swaging machine is specially designed for the industrial production of electric heating tubes with small batches and multiple specifications. It can produce high-density single-ended heating tubes and double-ended heating tubes. It is very convenient to change the mold. The mold is a four-piece model.

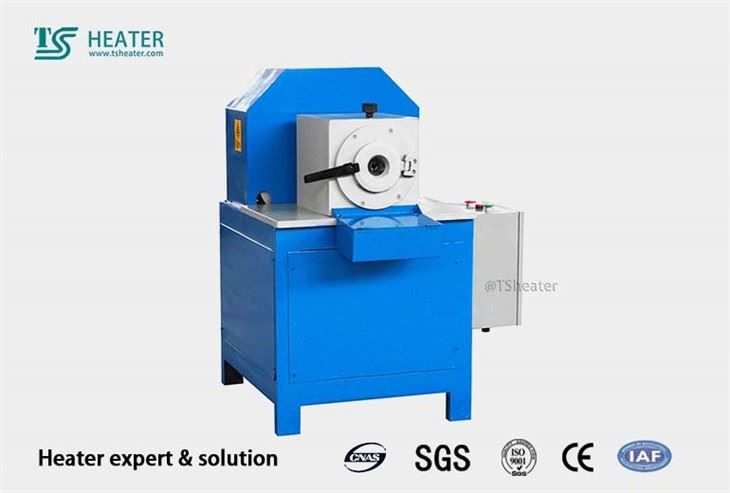

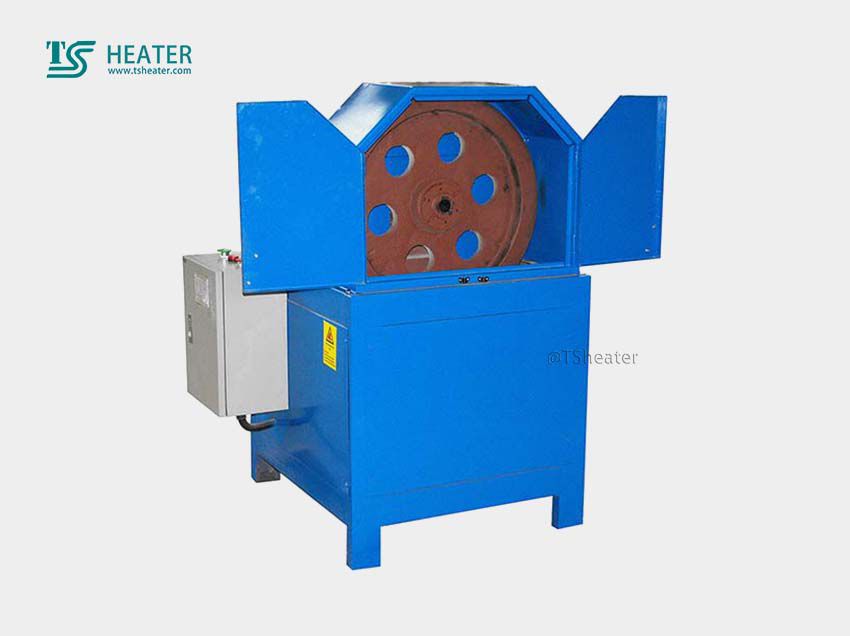

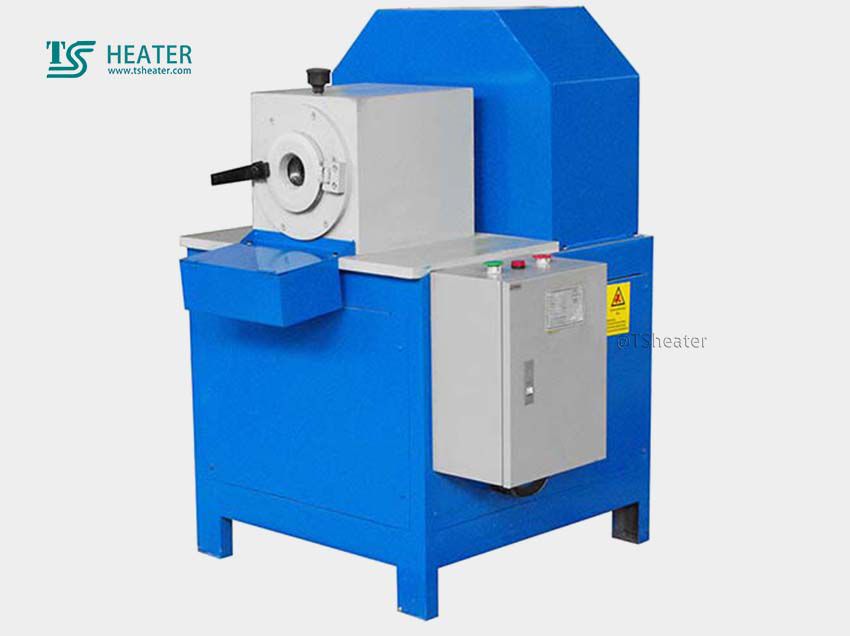

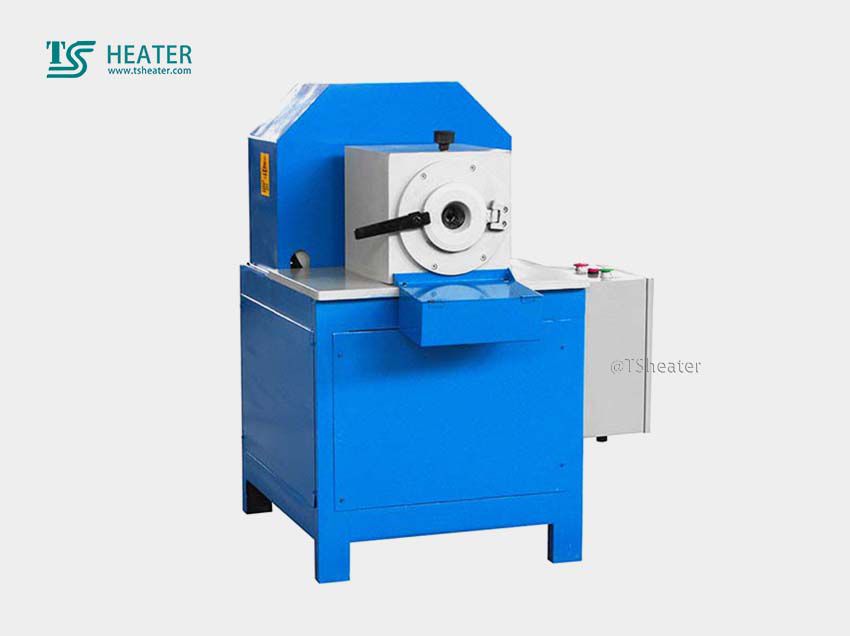

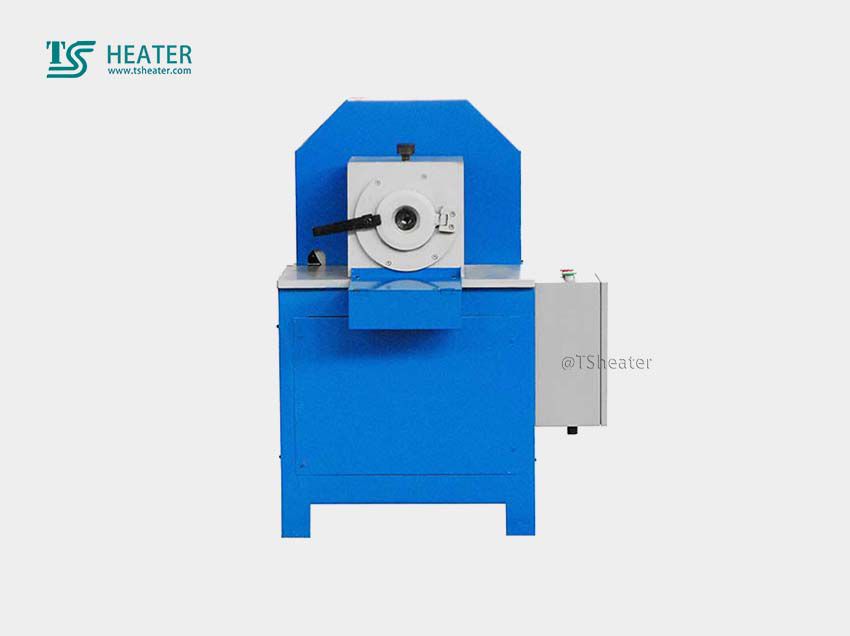

Product: DG30 swaging machine
Number: DG30
The main technical parameters:
Maximum shrink roll diameter: Φ30 mm
Minimum shrink length: 60 mm
Motor power: 380V 7.5kw
Roll: 800 * 900 * 1200 mm
Functions of the DG30 swaging machine:
1) Reduce the diameter of the circular heater and increase the density of magnesium powder;
2) Designed specifically to reduce the diameter of industrial heaters;
3) The operation is simple, and it is convenient to change the mold, which is very suitable for small batches and multiple diameter production;
4) 4 molds per mold, with good smoothness and roundness;
5) Compact design.
Application of the DG30 swaging machine:
Cartridge heaters, hot runner heaters, some industrial heaters, etc. Reduction of the diameter of the heater.
Information requirements for ordering DG30 swaging machine:
Reduce front and rear pipe diameter
Reduce the length before
Power supply (for example, 1 phase in 220v, 3 phase in 380v, 50hz)
