Quartz Heating Tube

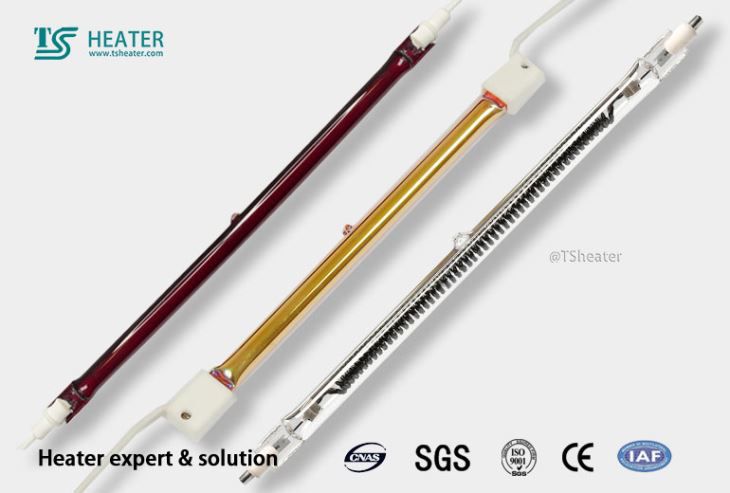

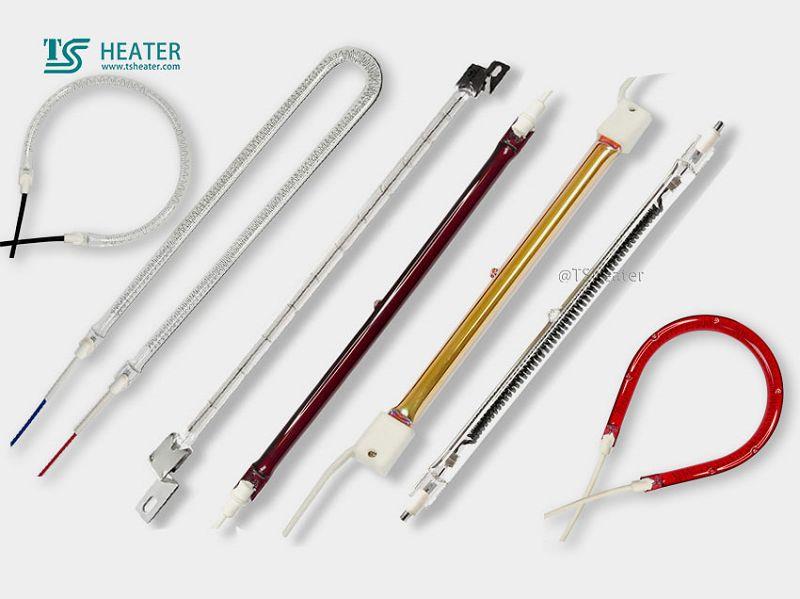

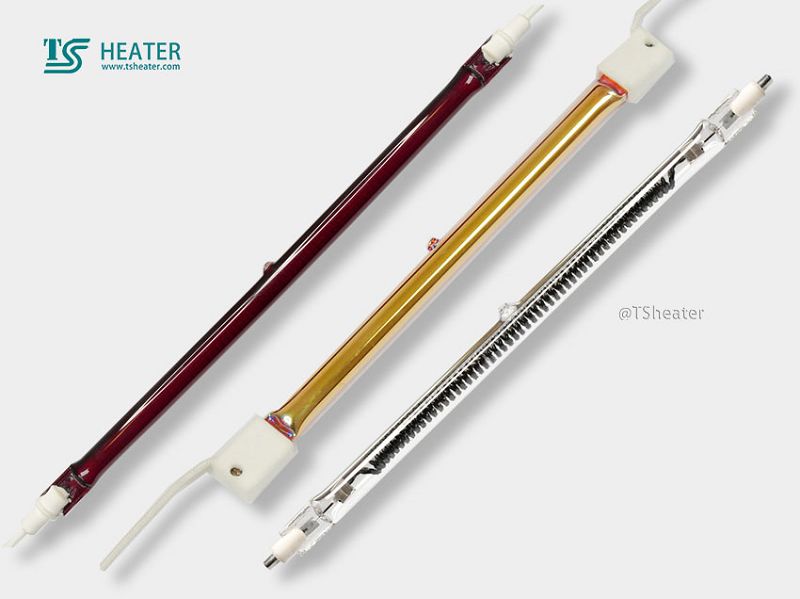

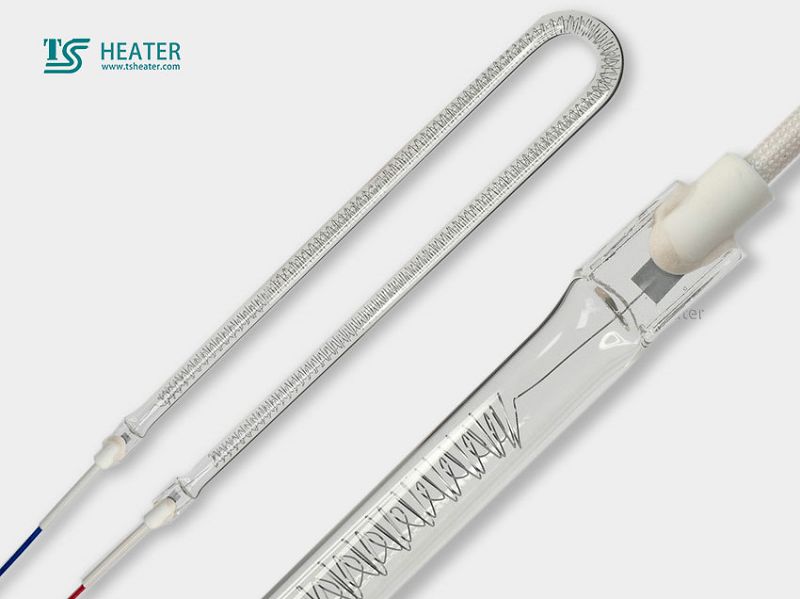

Quartz Heating Tube A quartz heating tube is double side by tungsten coat quartz lamp light source with high power supply startup. The light source is a tungsten halogen lamp series.The light source can prevent darkened bulb,and prevent the use of infrared in the recession.

Benefits in industrial application is efficient, responsive for power control, compact and light. According to different types, light position can level or any position. IR infrared lamp is a kind of industrial equipment used in the infrared heating and drying of the original. Clean with heats up quickly, heating process, long life light characteristics. It is widely used in plastic processing, print, copy, oven, infrared tunnel oven, auto paint lamp industry.

Features:Quartz Heating Tube
Quick delivery on replacement elements means less down time waiting for parts.

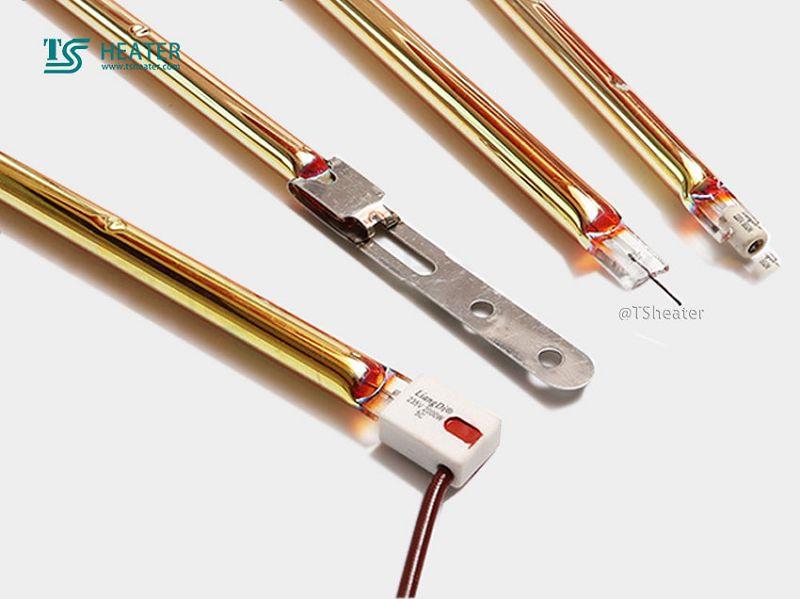

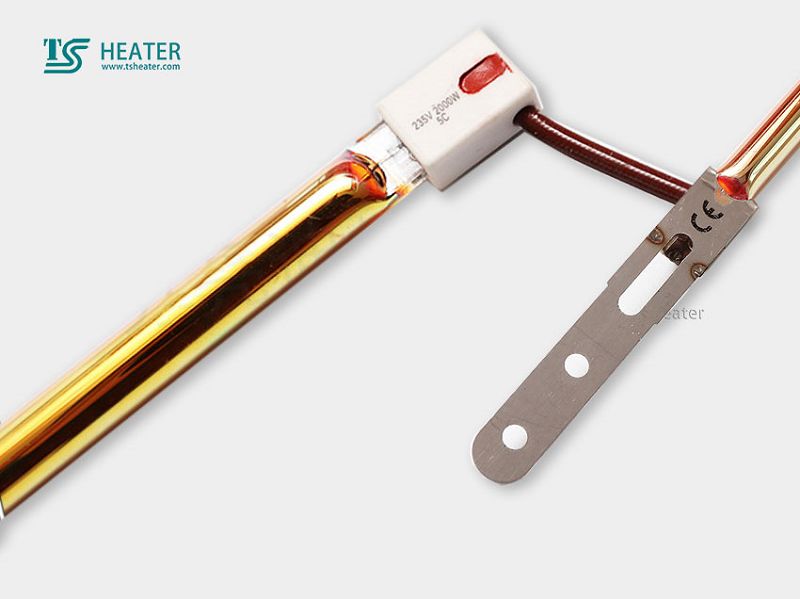

Ceramic end caps are bonded to the end of the quartz tubing to provide a rigid support for terminations.
Competitively priced.
Quick heat-up and cool down.
High operating temperatures permit fast thermal processes.
No glare.
A clean thermal energy source.

Applications:Quartz Heating Tube
Thermoforming
Shrink packaging
Vulcanizing and curing rubber
Laminating
Sealing
Fusing processes
Sterilizing
Space heaters
Drying processes (coatings, textiles, photos, and sand core castings).
Electrostatic copy equipment

Technical Data:Quartz Heating Tube
For a longer operating life and more efficient heating, quartz heating applications should be rated around 35 to 45 watts per linear inch.
Quartz heaters are designed for horizontal use only.
The translucent quartz tube provides an infrared wave length at an energy peak of 2.5 to 4.0 microns, when operating at full voltage, and is suitable for most industrial applications.

Installation and use precautions:

1. The inclination when installing horizontally is not more than 30 degrees.
2. Use with aluminum reflector or stainless steel reflector, flat or parabolic reflector. But the parabolic reflector is the best: to improve the utilization of radiation, the factory can be processed.
3. Avoid severe vibration and shaking.
4. The optimal distance between the heating element and the object to be heated is preferably 150-450 mm, depending on the specific conditions of the dried object.
5. Quartz heating elements are brittle materials, should be careful when installing and using, take the necessary protective measures according to the specific conditions of the object to be heated, so as to avoid mechanical damage.

Packaging & Shipping
Packaging Details: Paper carton, Wooden case, or any other packing ways as your need
Delivery Detail: 5-15 working days after payment
