Thermocouple Wire

Thermocouple Wire

The purpose of this section is to serve as a guide for selecting conductors to meet the requirements of most temperature measurements.It is characterized by a wide selection of conductors, insulating materials and structures.If you need help, thermal sensor salespeople will be happy to help you choose the wires to give your application optimal performance.

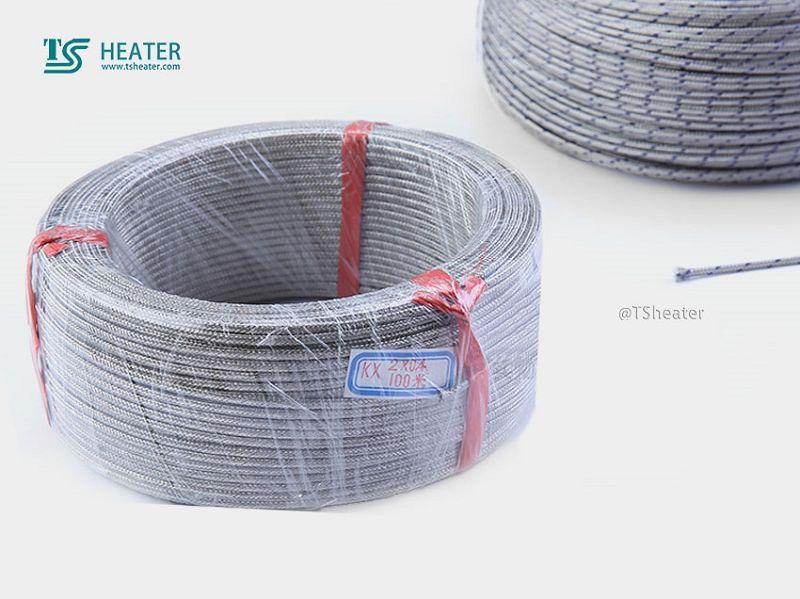

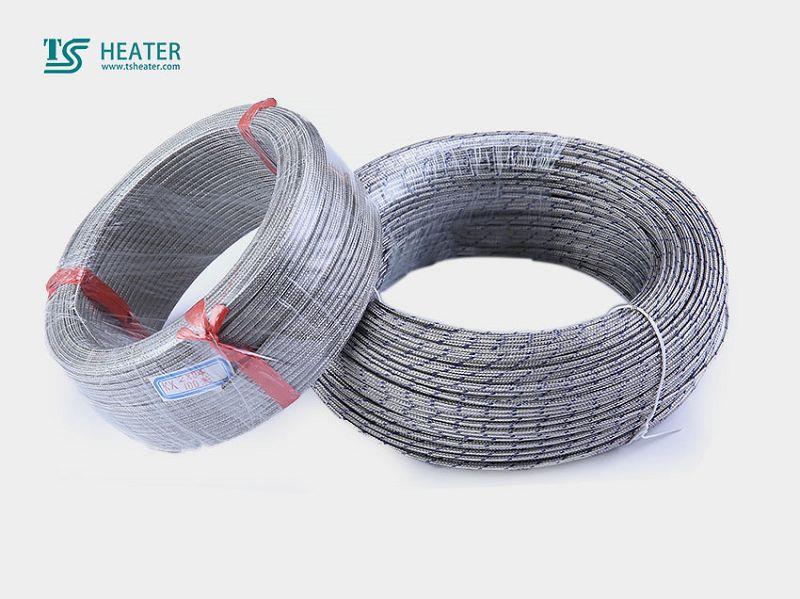

Flexible thermocouple wire (1024°C)
Product usage: these cables are suitable for a range of applications, including replacement bead-based thermocouples, thermocouples for oven measurements, heat treatment or forging, cast steel or titanium, thermocouples for coke ovens, soaking pits that require greater flexibility than mineral insulation products.Designed for extreme temperature applications.

Product features:

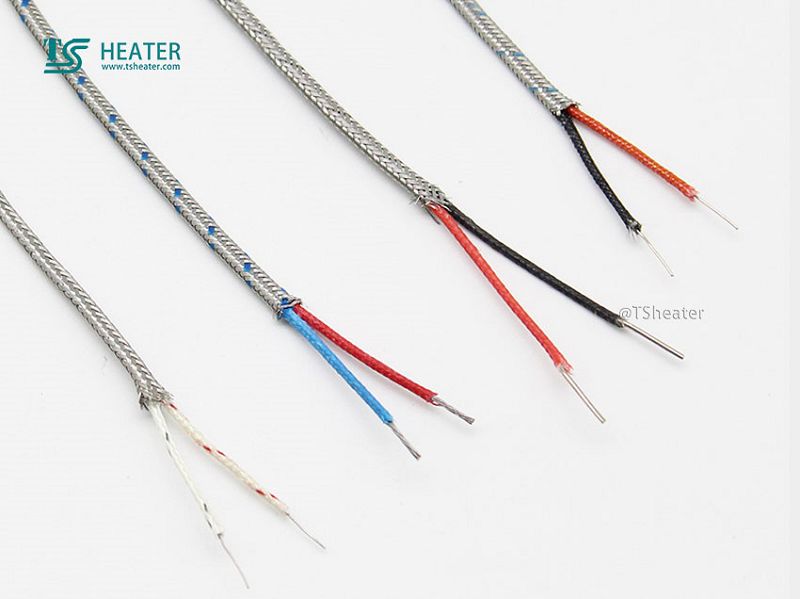

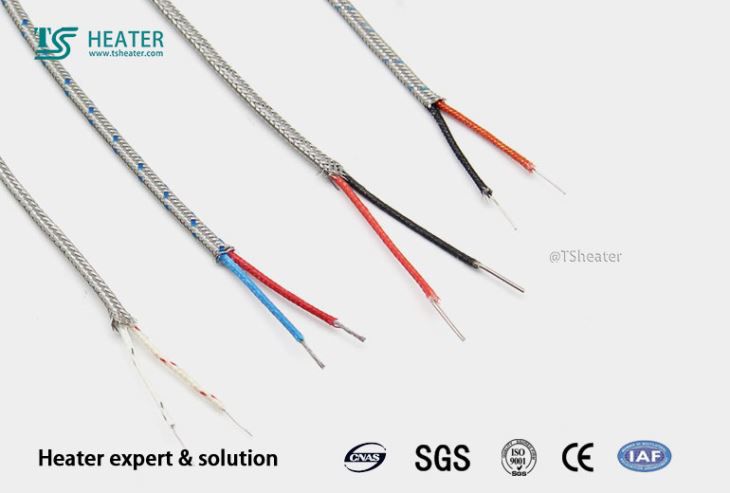

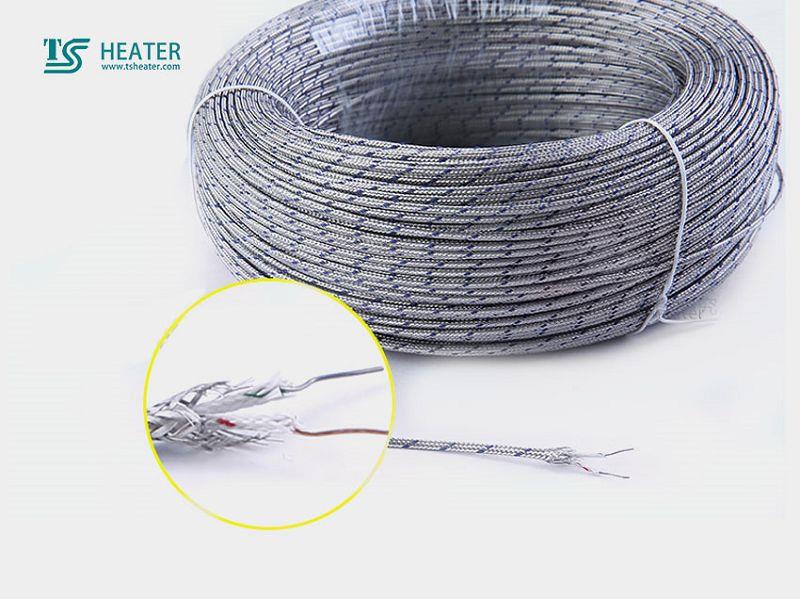

Construction:
Thermocouple Wire

Solid or twisted thermocouple wires
Melt TFE tape insulation
Parallel to the conductor
Flame retardant extrusion fluoropolymer TFE sheath

Technical:
Thermocouple Wire

Continuous temperature rating:260°C
The minimum bending radius: 3 x Ø cable insulation
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color code: in accordance with ANSI, IEC, JIS standards

Properties:
Thermocouple Wire

Designed for extended high temperature service of (1024°C) with intermittent use of (1432°C)
Good flexibility.
Replace beaded thermocouples.
Excellent thermocouple probe for various high temperature applications.

Product specifications:
Thermocouple Wire

Flexible K thermocouple wire
Chromel/Alumel flexible thermocouple line type K

Delivery & Enquiries:

Most items are available for delivery in 3 to 7 working days. However, Ts heater do offer additional emergency services for customers who are in a breakdown situation. This includes a 48hr services on Mica products, Cartridge Heaters and Ceramic Knuckle Heaters. For all enquires please contact a member of our sales team who will be happy to assist.
