Our factory produces spiral heating elements, which have been soft-treated, and have good shape and toughness, and can be directly processed into any shape.
Basic information of spiral heating elements
Product name: Spiral Heating Elements
Material: iron-chromium-aluminum electric resistance alloy (materials conform to GB/T1234-95)
Temperature: 1000-1400 degrees
Provide customized processing: Yes
Resistivity: 1.45Ωmm2m-1
Microstructure: ferrite, austenite
Power: customized according to customer requirements
Main use: electric furnace heating, weaving mesh belt net frame
Product certification: ISO9001, CE
Temperature resistance: 1400 degrees Celsius (oCr27Al7Mo2)
Advantages and disadvantages of spiral heating elements
advantage:
1: Iron-chromium-aluminum electric resistance alloy has the characteristics of high resistivity, low-temperature coefficient of resistance, and high operating temperature.
2: High corrosion resistance at high temperatures, especially suitable for use in an atmosphere containing sulfur and sulfide, 3: Low price
4: Iron-chromium-aluminum electric heating alloy has a high use temperature, the use temperature can reach 1400 degrees (0Cr27A17Mo2),
5: Long service life
6: High surface load
7: Good oxidation resistance
Disadvantages:
1: The high-temperature strength is low, and its plasticity increases as the use temperature increases and the components are easy to deform, not easy to bend and repair.
The advantages of the spiral heating elements produced in our factory:
1: Our factory produces spiral heating elements, which have been soft-treated before leaving the factory, and have good shape and toughness.
2: Kiln Furnace Heating Element Heater Wire Coil can be directly processed into spiral, corrugated, zigzag, and vertical winding.
3: The product has high purity, low impurities, stable resistivity,
4: Good surface oxidation resistance,
5: It has high-temperature strength and low cost,
Application of spiral heating elements:
1: Kiln Furnace Heating Element Heater
2: Household appliances
3: Far infrared device
4: Metallurgy
5: Mechanical
6: Aircraft and automobile manufacturing

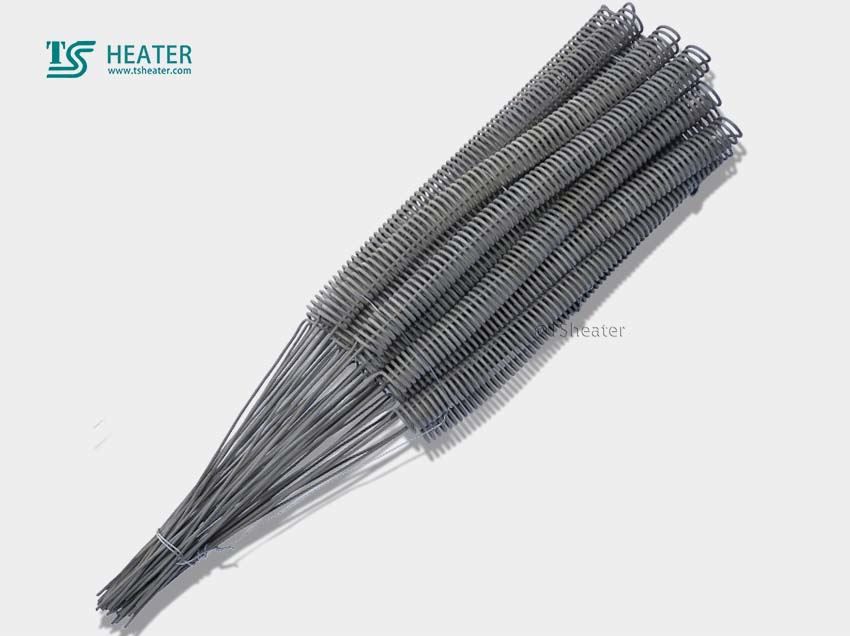

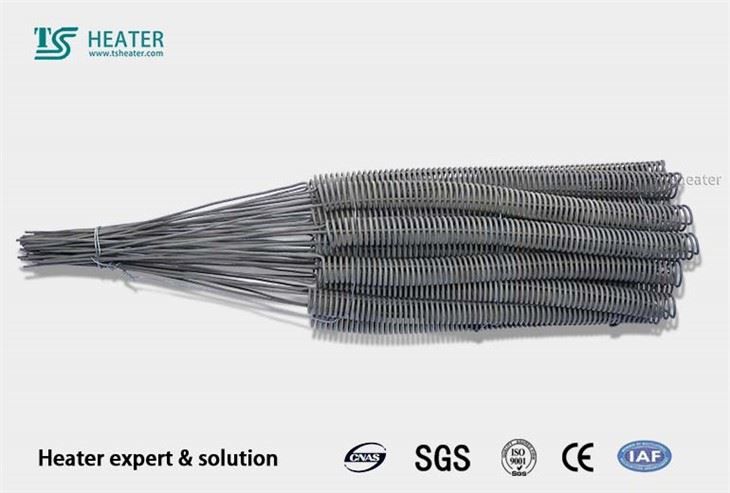

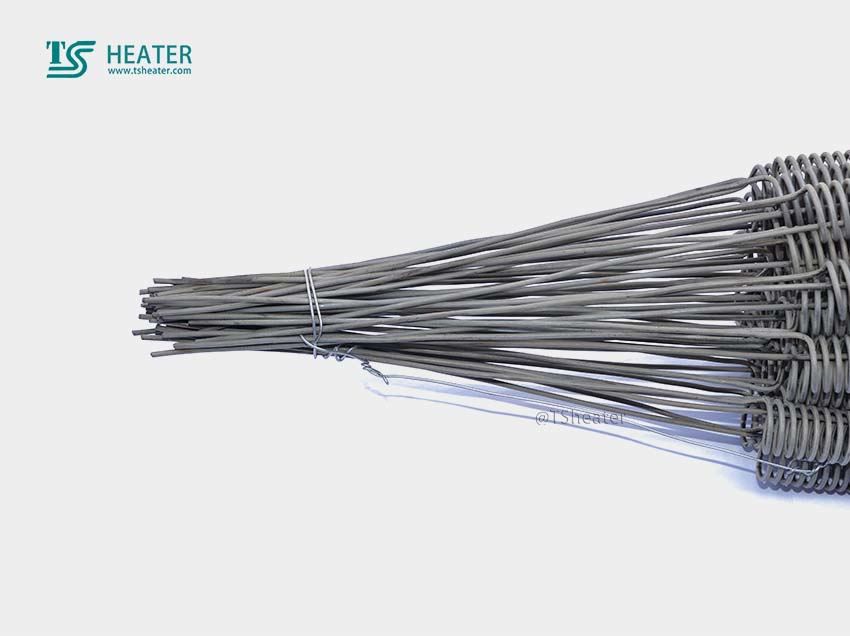

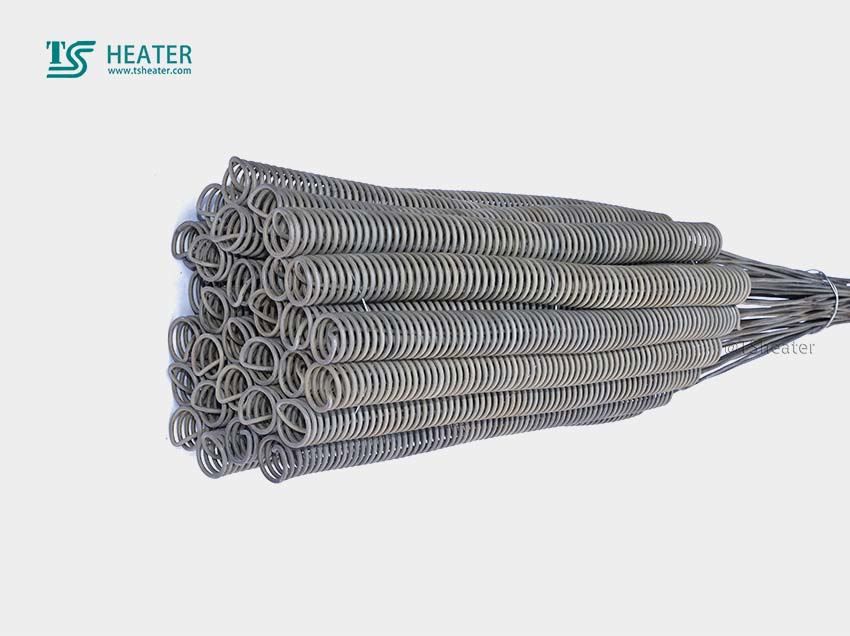

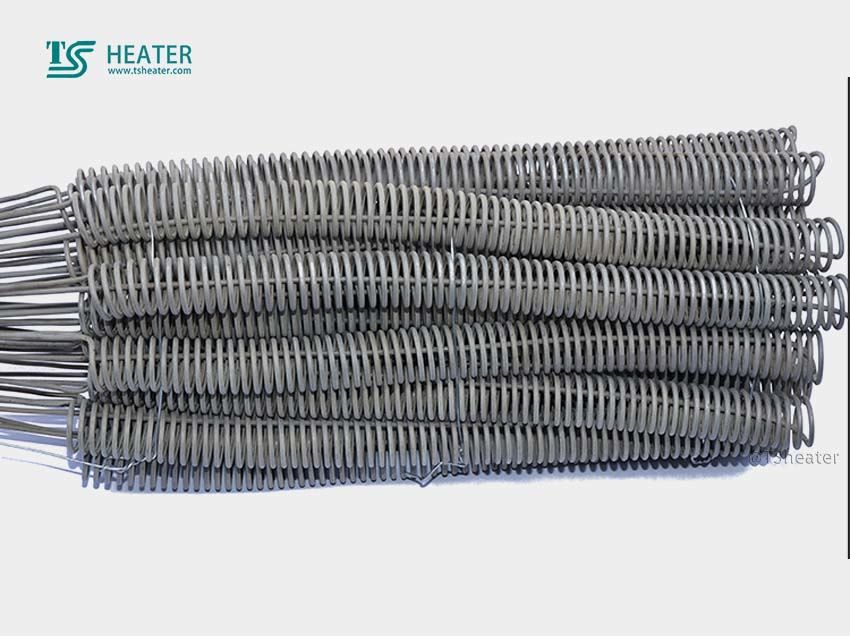

Display of spiral heating elements:
