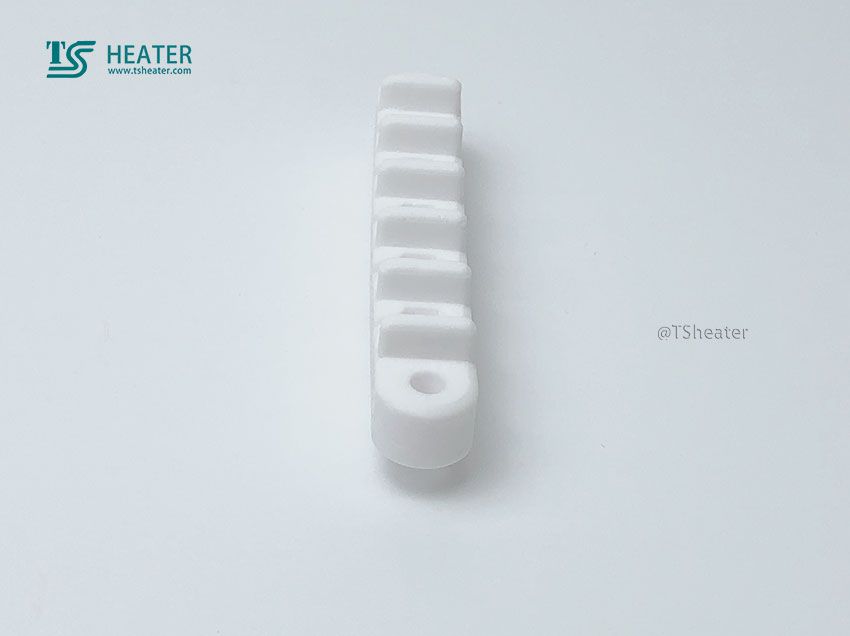

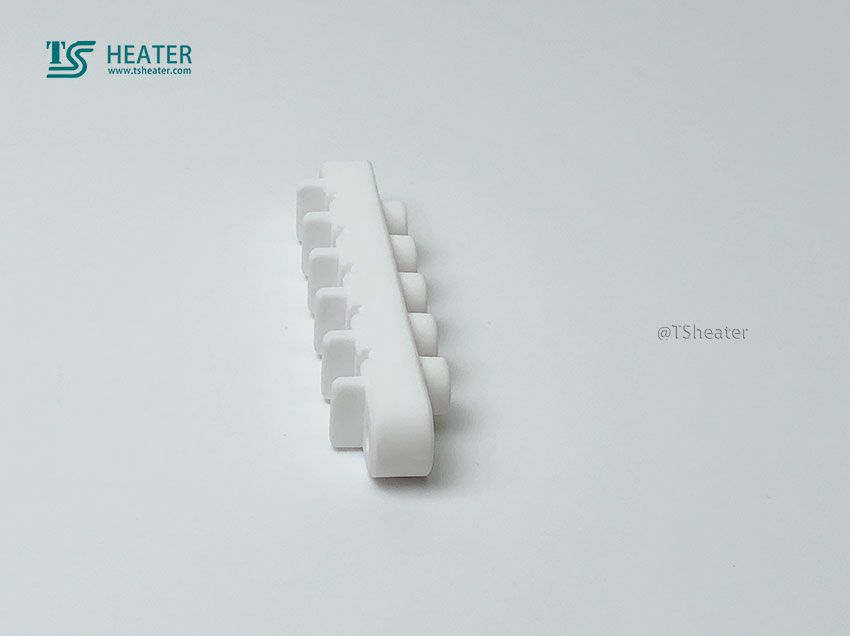

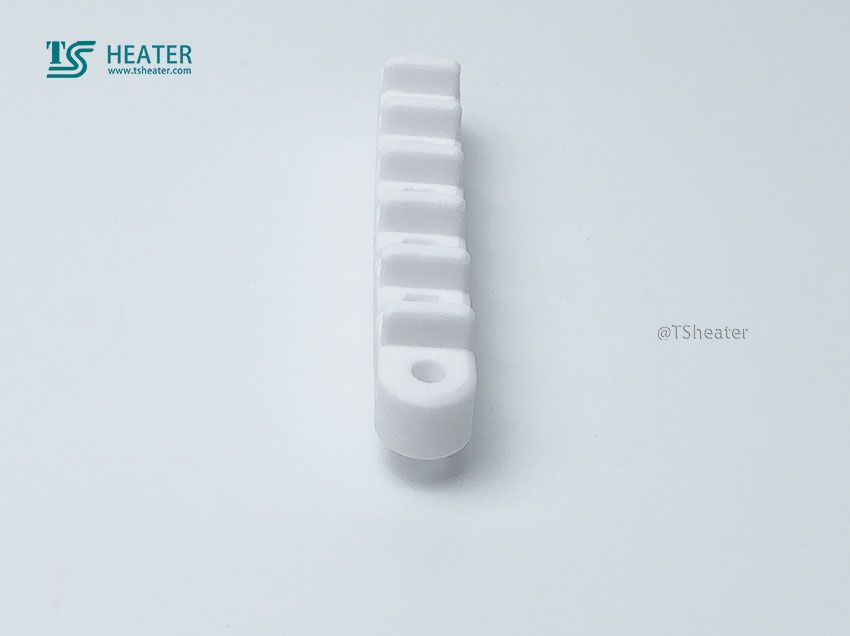

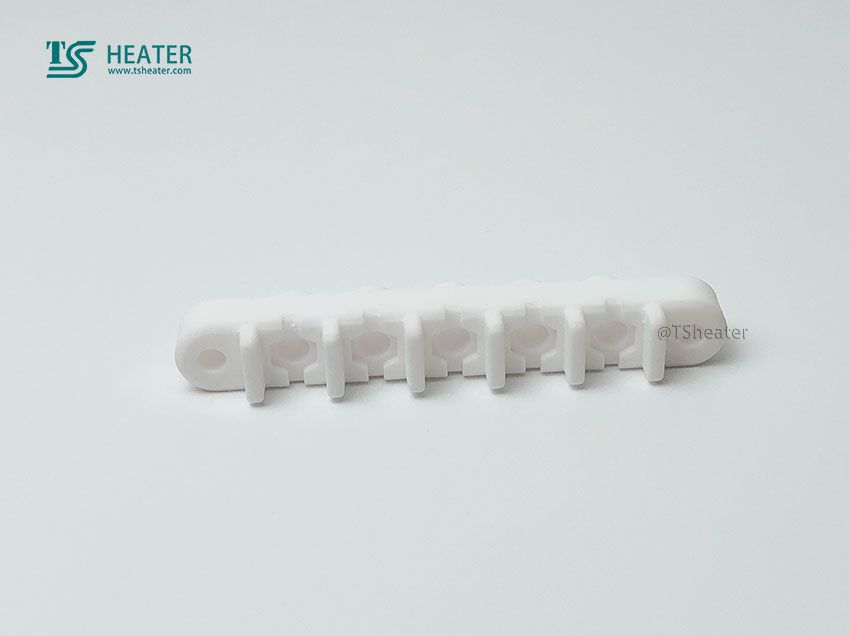

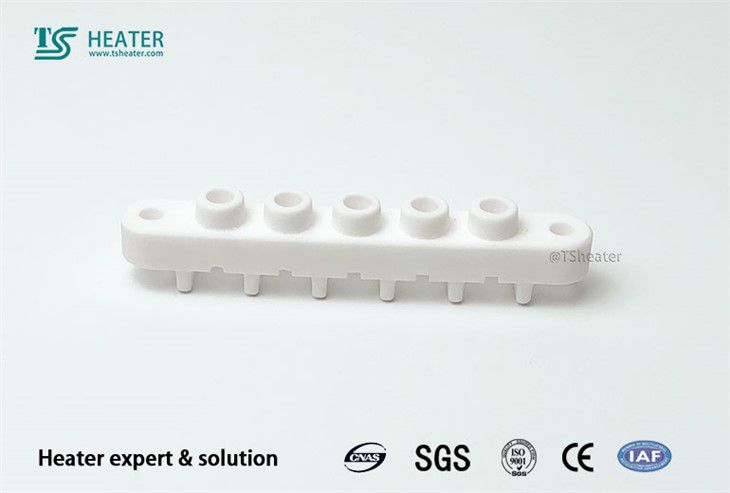

Steatite Ceramic is a ceramic insulator for band heaters. Our company has been making ceramic heaters for 15 years. Talc ceramic size (regular size): Width 9mm, hole diameter 5mm; Width 10mm, hole diameter 6mm; The width is 5.9mm and the hole diameter is 3.4mm. Our company can customize any size, welcome to cooperate.
Steatite Ceramic can be customized according to customer's drawings, samples, performance requirements, etc.
chemical composition:
SIO2: about 60%
Magnesium oxide: about 31%
AL2O3: about 5%
BaO: about 5%
Calcium oxide: about 0.5%
Fe2O3: about 0.2%
Physical properties
1) Highly effective resistance capability
2) Low dielectric loss factor
3) Very strong mechanical strength
4) High volume resistivity at high temperature
5) Very good dielectric strength
Application field
1) Insulating gasket or bushing
2) Support heating element
3) Electrical insulator
4) Insulator
5) Lighting insulator (support, base, etc.)
6) Gasket
