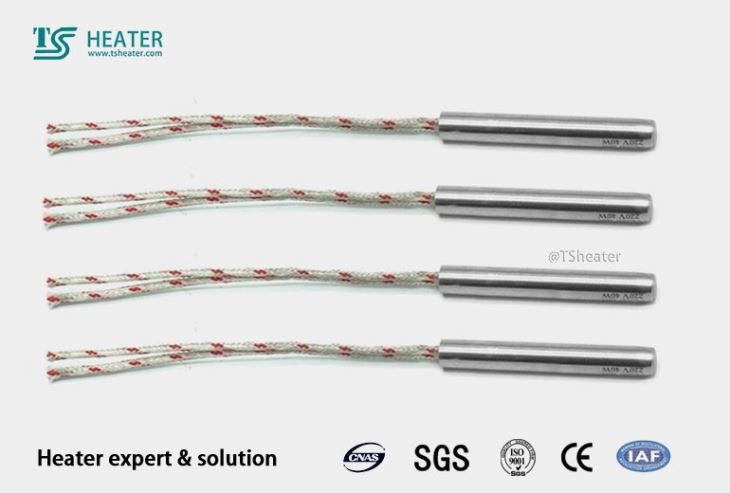

Straight Heating Element

straight heating element Cartridge heater immersion heater element electric heat pipe heater industrial electric ceramic insert heater 40W general information

finally: CE high temperature resistant tube heater

High temperature 800

straight heating element Cartridge heater element electric heat pipe heater industrial electric ceramic insert heater 40W

General information：Straight Heating Element

A cylindrical heater is a tubular, heavy duty, industrial joule heating element (resistor) used in the heating industry, usually with a specific watt density tailored to its intended use.

Highly compressed they reach a surface watt density of up to 30 w/cm squared.

It can be used to heat any substance or material such as oil, air or sugar.

However, a common application is plastic balls that melt to form molded plastic parts.

An example of such a process is the "hot runner" process.

Cylindrical heaters are similar in structure to tubular heaters, but often have higher watt density.

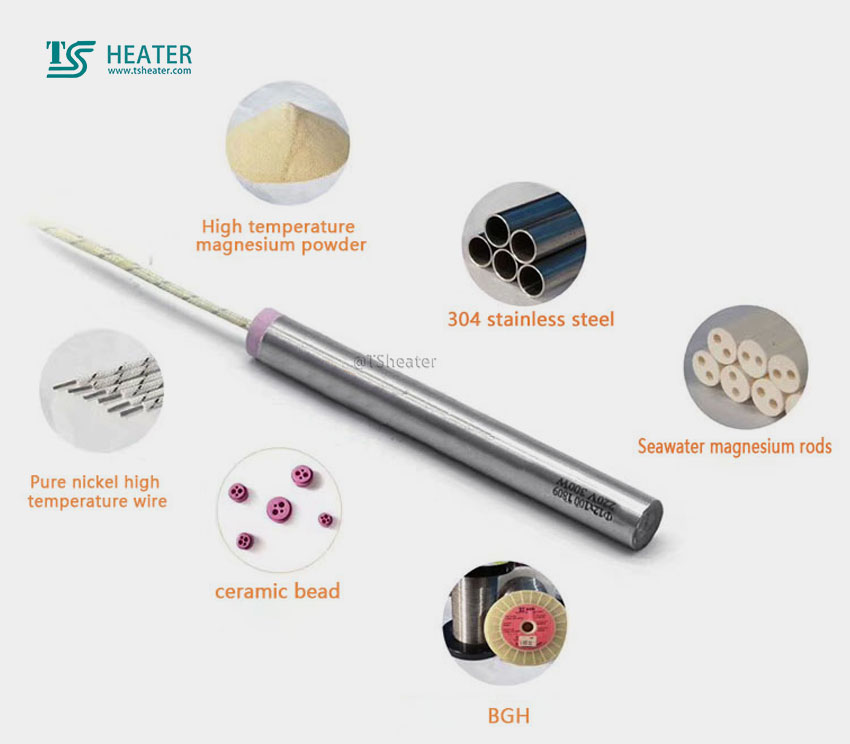

Features and performance：Straight Heating Element

Tube diameter: 3mm - 30 mm

Pipe :SS304, SS316, SS321, NICOLOY800, etc

Insulation material: high purity MgO

Conductor material: nickel chromium or iron chromium aluminum resistance plus hot wire

Wattage density: high/medium/low (5-25w/cm2)

Lead connection options: crimp or crimp leads

Lead type :10 "standard (teflon/silicone high temperature glass fiber)

Characteristics & Properties

Diameter: Φ4mm-Φ30mm

Material: SS304, SS316, SS321 and ICOLOY800 etc

Material: High-purity MgO

Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire

Wattage density: high/middle/low (5-25w/cm2)

Lead Connection Option: Crimped or Swaged leads

Lead wire type: 10" Standard (Teflon/silicone high temperature fiberglass)

Tolerance (w)+ 5% to 10%

Cold region

Depending on length and diameter 5-25mm

Suggested application：Straight Heating Element

Liquid immersion

Plastic mould

The label

Medical equipment

clamp

Packaging equipment

Hot stamping

Injection molding

Straight Heating Element

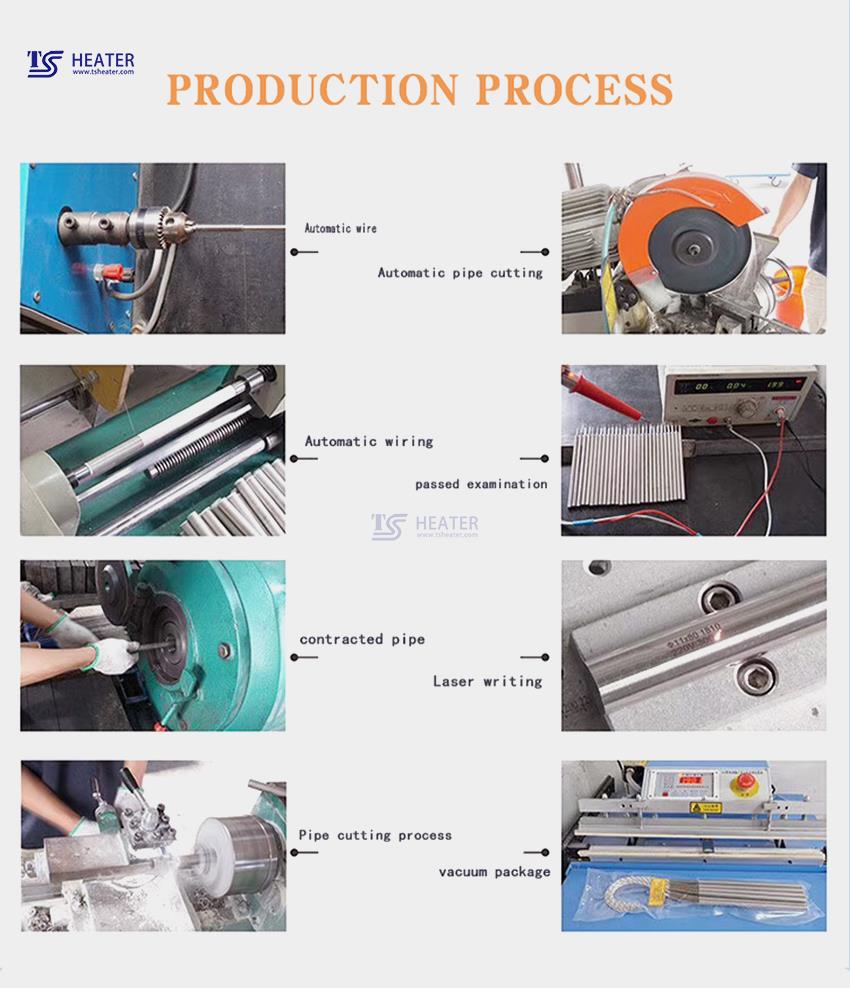

------FACTORY------
