teflon coated immersion heater,Teflon heating furnace for acidic teflon heating furnace is the most common solution for a variety of heating applications in industry and other fields. They can be made into any shape and can be clamped or wrapped around heated objects. A large number of tubular heaters are available from stock.Teflon Coated Immersion Heater Standard diameters are 5.3, 6.6, 8, 10, 11, 12 mm. Teflon heater features and...

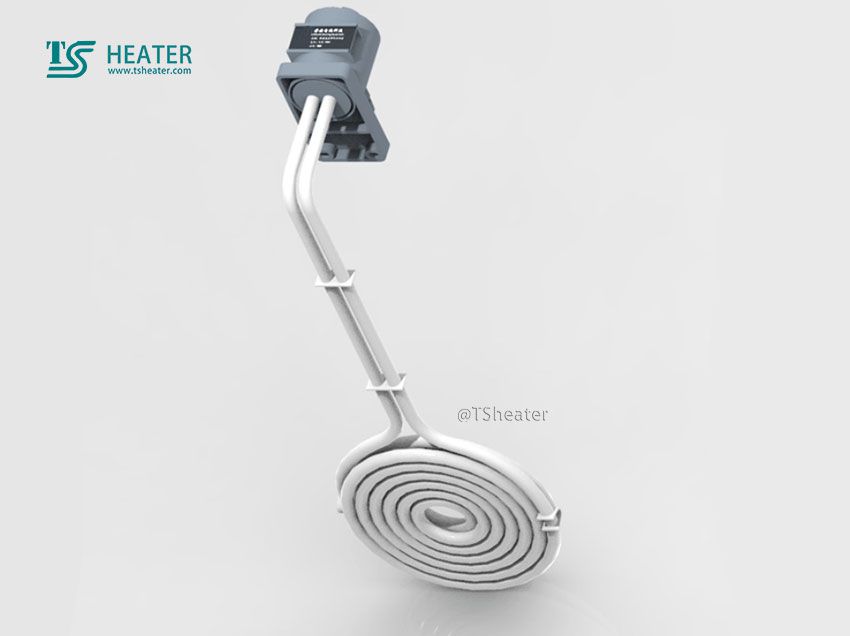

Teflon Coated Immersion Heater
Tetrafluoro-electric heating tube Our company adopts unique and advanced welding method to make the connection strength between tube bundle and tube plate of fluoroplastic heat exchanger reach 1.5mpa, which solves the problem of leakage pipe in traditional welding method of fluoroplastic heat exchanger.
F4 heat exchange equipment of various forms is made by combination, which is an ideal choice for heat transfer of strong corrosive, strong acid and strong oxidizing medium, and is favored by the majority of users.
Tetrafluoro-electric heating tube Features:
Excellent corrosion resistance: F4 is a chemically inert material that can work in all media except the element fluorine, molten alkali metal, chlorine trifluoride, uranium hexafluoride and perfluorokerosene at high temperatures.
Such as: a variety of strong acid strong base, hydrochloric acid nitric acid, hydrofluoric acid, sodium hypochlorite, naphthalene, benzene, xylene, acetone, aqua aqua, chlorine, toluene, a variety of organic solvents and so on;

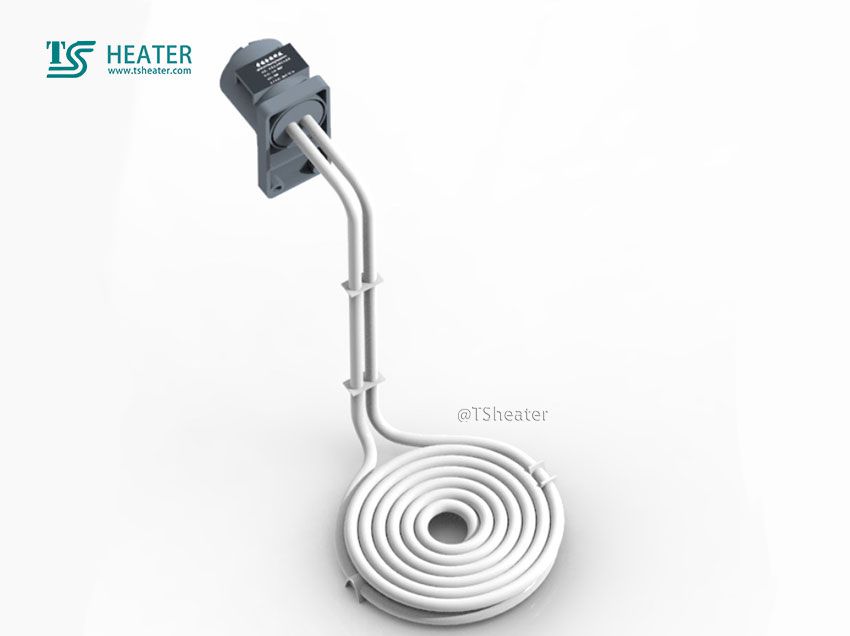

Teflon Coated Immersion Heater
W has good scaling resistance: The chemical inertia, surface smoothness, winding and high expansion coefficient of F4 tube make it difficult for its heat transfer surface to scale, which ensures a relatively stable heat transfer coefficient.
· Teflon electric heating tube has long life and low comprehensive cost: ptFE does not contain photosensitive gene, so it has excellent resistance to atmospheric aging.
In the strong corrosion medium its service life is 20 to 30 times of stainless steel, plus our company in the past the existence of the use of easy to hang bad and other problems were completely solved, so that its service life greatly increased;
· Good heat transfer performance of tetrafluoro-electric heating tube: due to its small diameter, no temperature difference gradient and thin wall tube, the disadvantages of low thermal conductivity of PTFE material are overcome, so that the total heat transfer coefficient can reach 200-350 (W/ m2.k);
· Small resistance of tetrafluor electric heating tube: Due to the small friction coefficient, low roughness and excellent lubrication performance of F4, the resistance of fluid inside the tube bundle is smaller than that of metal tube.
Polytetrafluoroetylene electric heating tube is called Polytetrafluoroetylene, short for Teflon, PTFE, F4, etc.

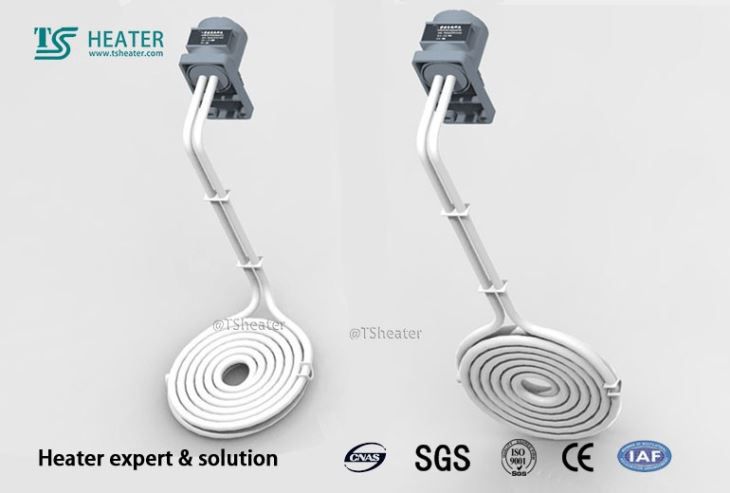

Teflon Coated Immersion Heater
Chinese names are "Plastic King", "Teflon", "Teflon", "Teflon" and so on.
It has unrivalled chemical stability and thermal stability (-250 ~ 260℃).
Fluoroplastic electric heater is a new type of electric heater with strong corrosion resistance, which is used for heating various corrosive liquids.
It has excellent aging resistance and good winding performance, and adopts low surface load (1.5W/cm 2) design.
The joint adopts fully enclosed anticorrosive acid and alkali, no heating section and overheat safety protection system are made according to customer's requirements.
Good to ensure that the heater is not easy to burn out, long service life, fully sealed, no corrosion, no leakage, with ground protection, safe and reliable.
The applicable temperature is 110.

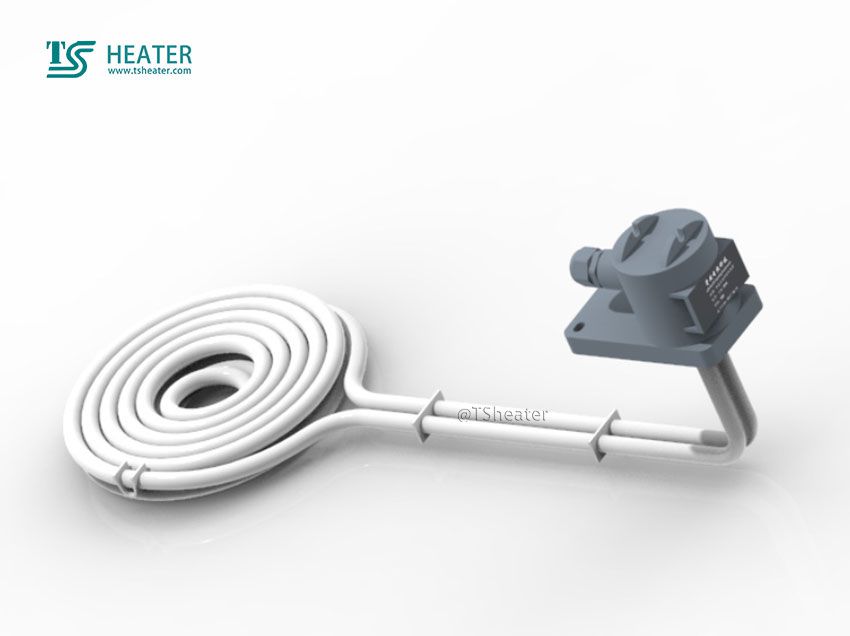

Teflon Coated Immersion Heater
