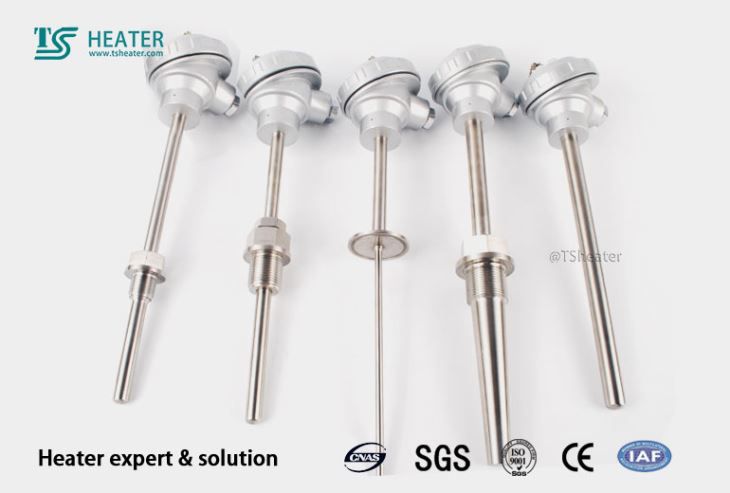

Temperature Sensor RTD PT100

Temperature Sensor RTD PT100

Can be used for a variety of connections and sheath diameter, non - bending sheath.

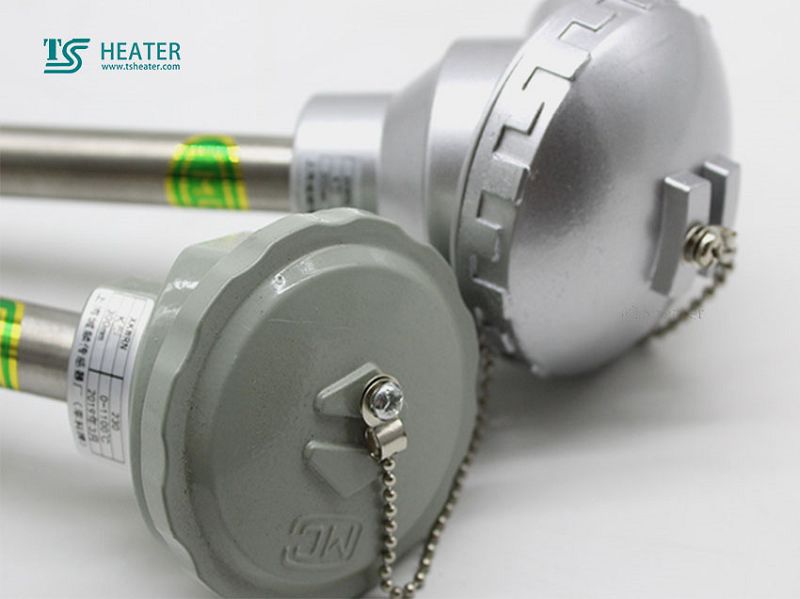

Terminals: aluminium head with threaded cover and chain, different types of terminals.

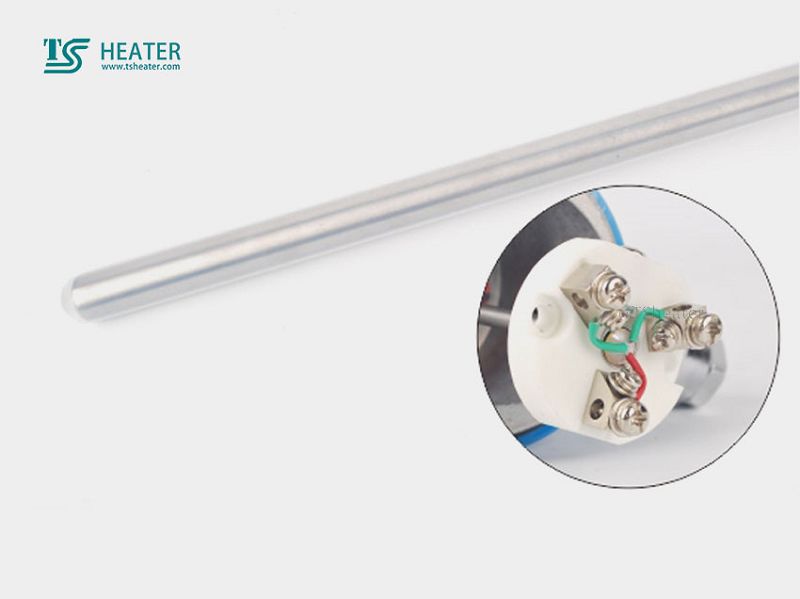

The end of the element is a nickel-plated brass terminal mounted on a high purity ceramic terminal block.
Single/double cable inlet and cable gland.

Product Specification
Temperature Sensor RTD PT100

Product Type：RTD Pt100 Temperature Sensor
Temperature：-200 to 1000.C
Material：Stainless steel SS 316
Sheath diameters：3, 5, 6 and 8mm

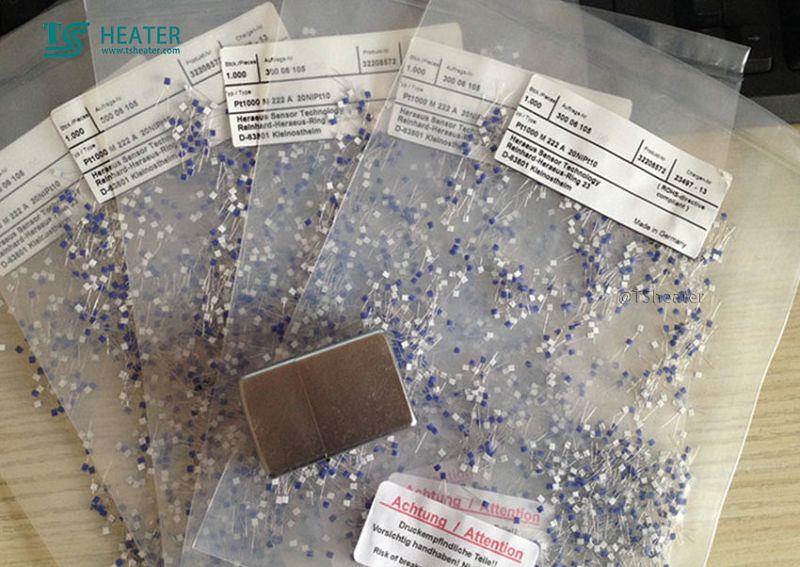

The sensor adopts weatherproof aluminum head to protect the internal structure.Depending on the application, these mineral insulated RTD sensors can be composed of Pt50, Pt100, Pt200, Pt500 or Pt1000.2, 3, 4 single or double wire assembly;In class A or b base material mineral insulation RTDs, the base material mineral insulation RTDs with end has high practical value. Its characteristic is that the mineral insulation sheath can be very long and can be bent or coiled according to the application situation.Available from standard assemblies, free rotating fittings, hexagon joints, circular joints, tender joints, adjustable compression fittings, fixed flange joints or adjustable flange joints.

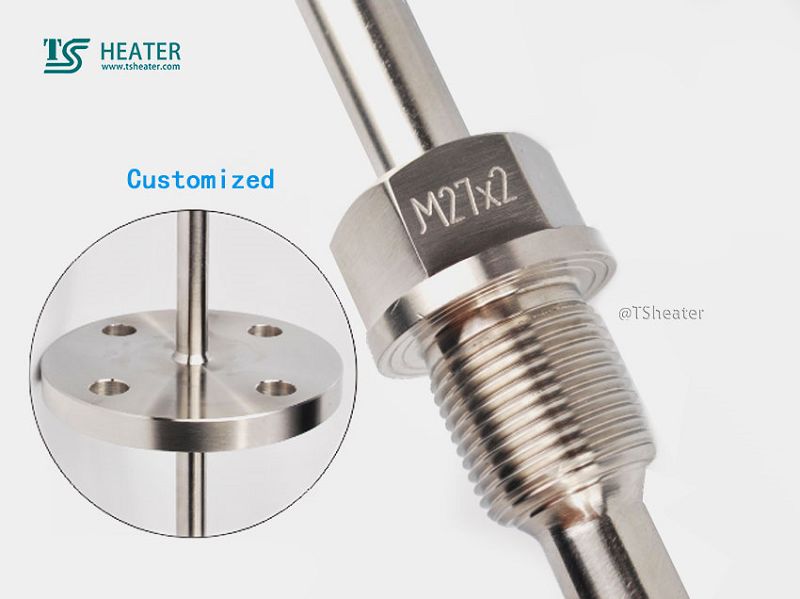

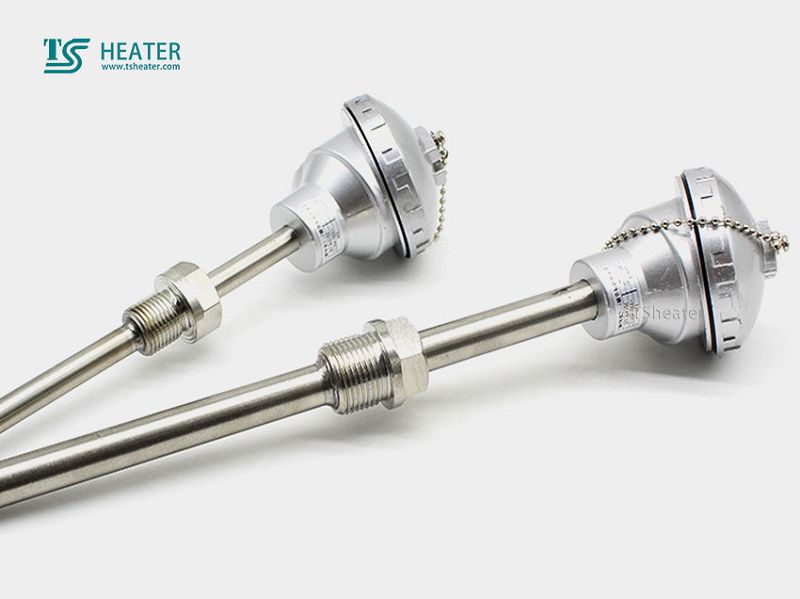

RTD assembly with threaded/flanged connection

Application:
Temperature Sensor RTD PT100

The assembly is usually installed in an existing hot casing/protective pipe
The assembly can provide threaded connections and hotsleeves
