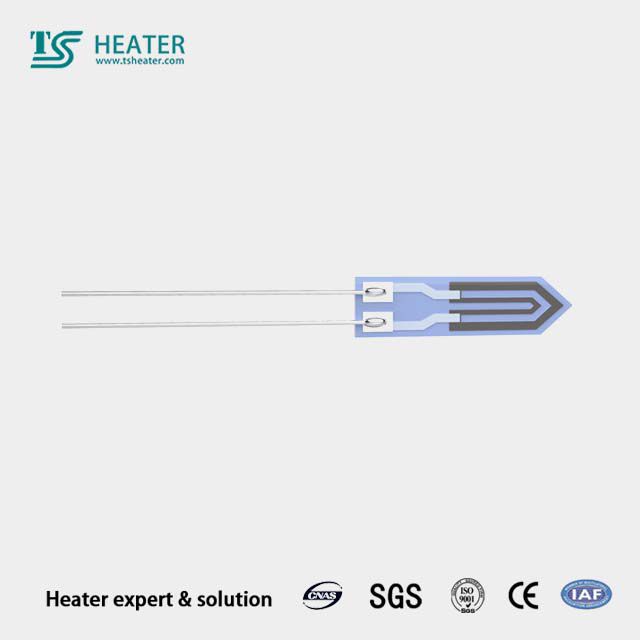

Thick Film Printed Heaters

Thick Film Printed Heaters

The thick film printed heaters have a heating efficiency of up to 97%. The thick film printed heaters have a very high surface power density up to 60W/cm2.

Description

Place of Origin: Guangzhou, China

Category: ceramic heating element, nickel-chromium electric heating alloy, heating element

Brand: TS

Material: Nichrome

Room temperature resistance: 0.2 (Ω)

Power: 2000 (W)

Maximum temperature resistance: 1000 (℃)

Specification: 0.3 (mm)



The production technology of the thick film printed heaters


1: The thick film printed heaters are manufactured in a completely different way from traditional heating elements (PTC, electromagnetic, etc.).


2: The thick film printed heaters are composed of a stainless steel substrate, on which an insulating layer (which meets the requirements of dielectric strength) is printed, then a layer of resistive paste, then a contact layer and a connecting layer, and finally all these layers are topped Cover the insulating layer (only provide protection against mechanical damage).


3: During the entire production process, the product is prepared in a room with a high air purity level, and a separate layer is applied by screen printing, and each layer is sintered immediately after drying, so as to ensure the ultimate quality of our products.





Accurately manufactured thick film printed heaters have advantages:

1. Rapid heating;

2. Very low heat capacity;

3. Small temperature fluctuation;

4. Long service life.

5. The thick film printed heaters have a heating efficiency of up to 97%.

6. The thick film printed heaters have a very high surface power density up to 60W/cm2.



Product display:

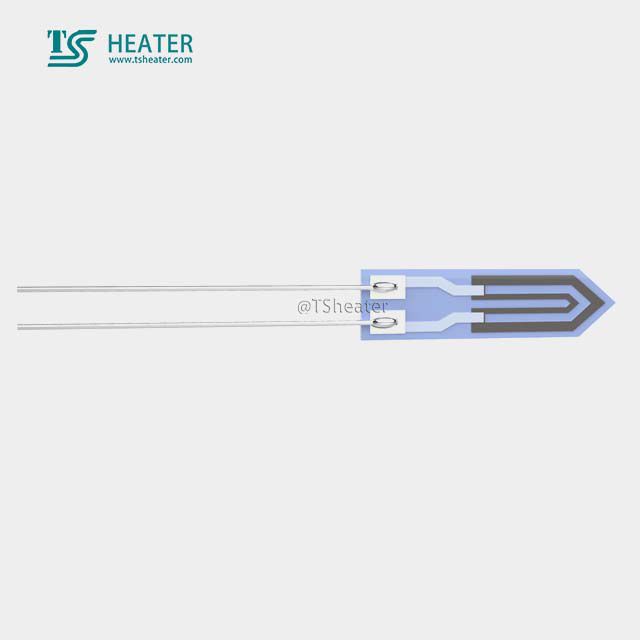

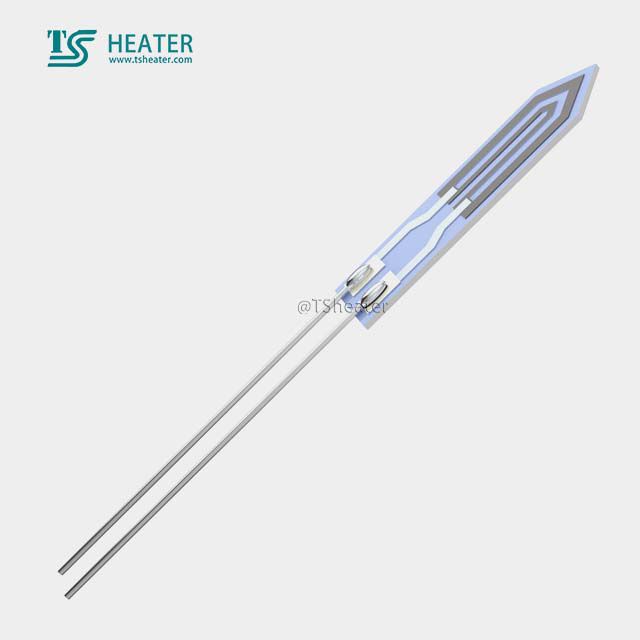

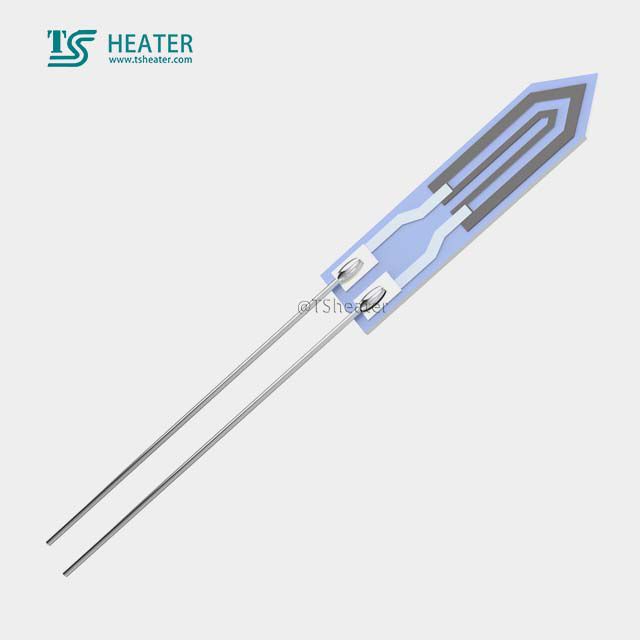

thick film printed heaters (2)thick film printed heaters (3)thick film printed heaters (5)
