12v Cartridge Heater

1. The working principle of 12v cartridge heater.

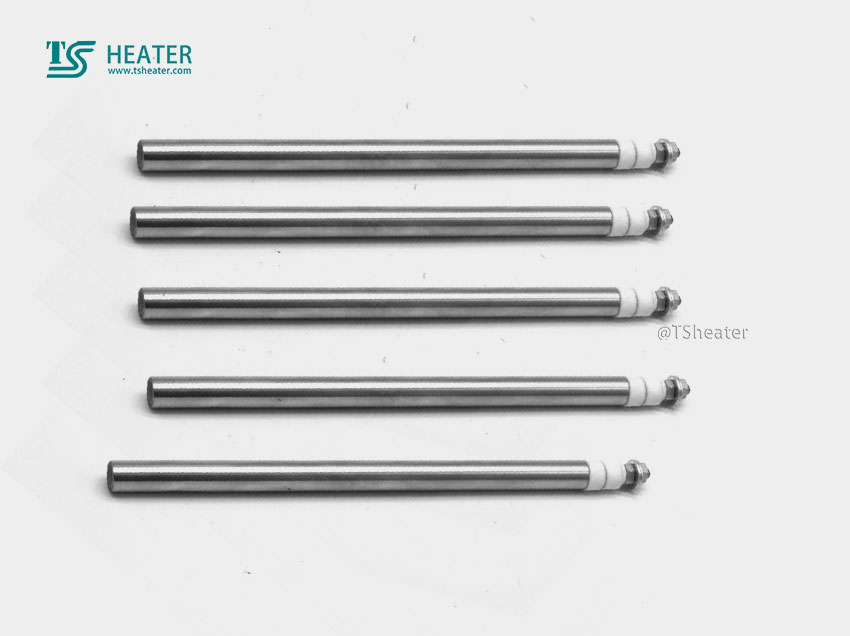

12v Cartridge Heater

Electric cylindrical heater, also known as single-end tubular heater, one end can be heated, the other end for the cold end.

It is a metal tube into the resistance alloy wire as a heating material, alloy wire filled with good insulation performance, high purity of magnesium oxide as a filler, the product has the characteristics of high power, high thermal efficiency, fast heat dissipation.

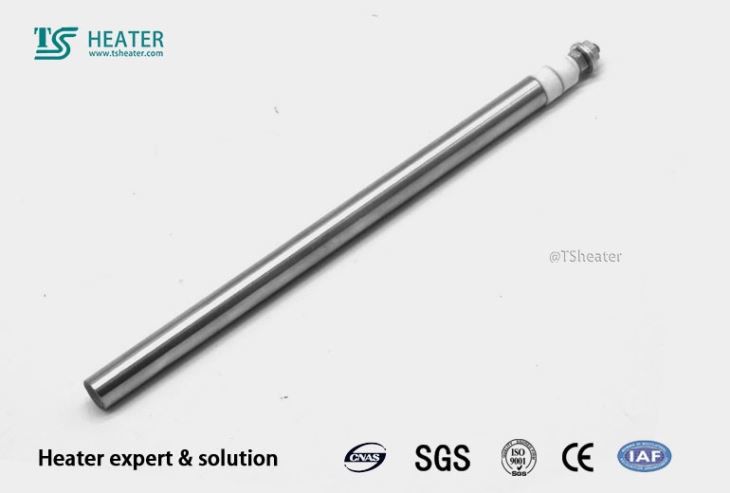

12v Cartridge Heater

2.Characteristics of the

1 >.MgO imported from USA ensures even heating

2 >.Japanese resistance wire, good heating performance.

3 >.High corrosion resistance alloy sheath.

4 >.Waterproof and moisture-proof :IP65.

5 >.Distributed power box heater available

6 >.Separate cartridge heaters are available.

3.parameter：12v Cartridge Heater

Tube diameter: 3 mm Φ - Φ 30 mm

Tubing: SS304;

SS316, SS321, NICOLOY800, etc.

Insulation material: high purity Mgo

Resistance wire element: ni-cr or FeCr

Power density: high/medium/low (5-25w/cm2)

Lead connection options: crimp or crimp leads

Lead type :10 "standard (teflon/silicone high temperature glass fiber)

4.12v Cartridge Heater

The application

Hot runner system.

Heat of manifold

Packaging industry.

Heat stamp heating

The laboratory.

Analyze the heating of equipment

Telecommunications: de-icing, shell heater

Transportation: fuel/block heater, aircraft coffeepot heater,

Food service: steamship, dishwasher,

Industry: packaging equipment, punching machine, heat printing machine.

Injection molding.

Internal heating of nozzle

Packaging industry.

Heating of the cutting rod

Medical treatment: dialysis, sterilization, blood analyzer, sprayer, blood/liquid heater
