Cartridge Heater With Internal Thermocouple

TS™ HEATER

Cartridge Heater With Internal Thermocouple

Cartridge heater (another name: cartridge, "finger heater") is a specially designed element that allows a large amount of heat to be emitted from a small area (maximum load 50W/cm2).They are most commonly used to heat metal molds, tools, etc.They are designed to work under difficult conditions such as vibration, shock, moisture, heavy liquids, and frequent overloading.They are used where the operating temperature is required to be between 400 ℃ and 750℃.

Diameter：3 mm to 30 mm

The length of the pipe：20 mm - 5000 mm

Resistance heating wire：NiCr 2080

voltage:12 v / 24 v / 36 v / 48 v / 120 v / 220 v / 230 v / 380 v

Pipe material：Stainless steel 304,321,316, incoloy 800, incoloy840

Insulation materials:High purity MGO

Thermocouple position:Type J/type K

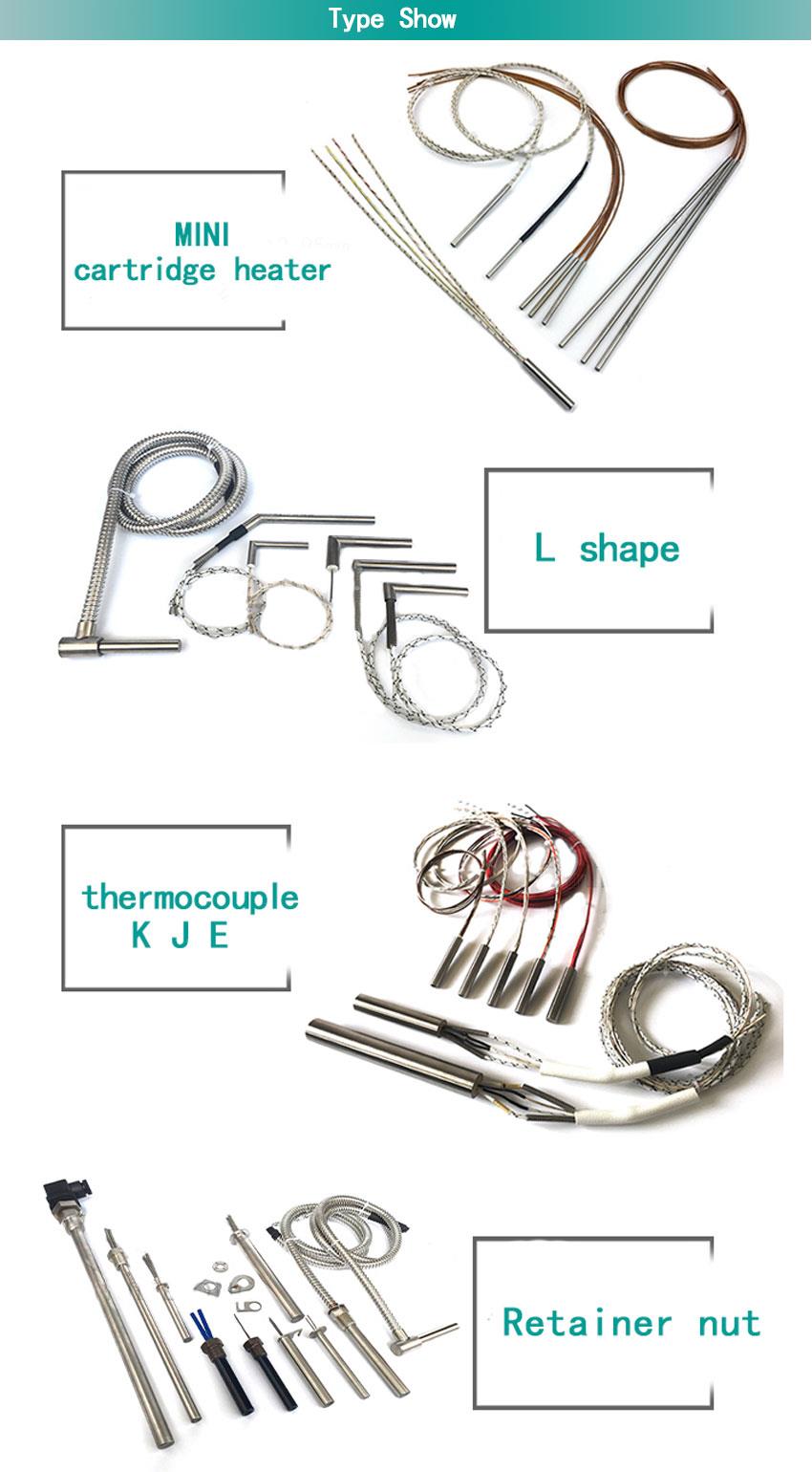

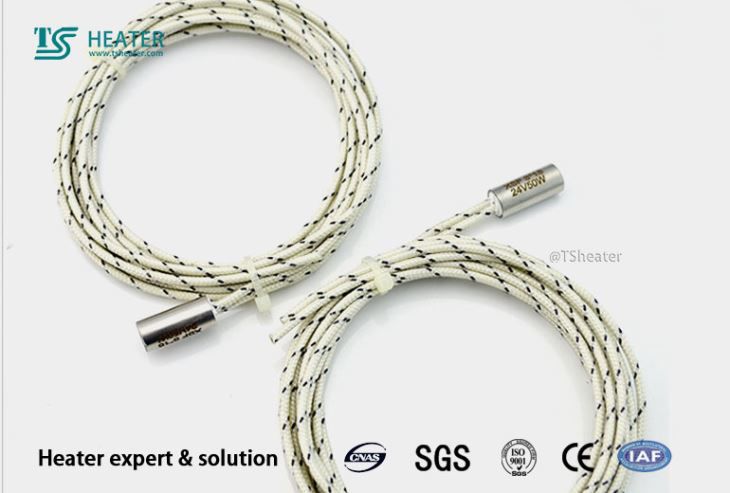

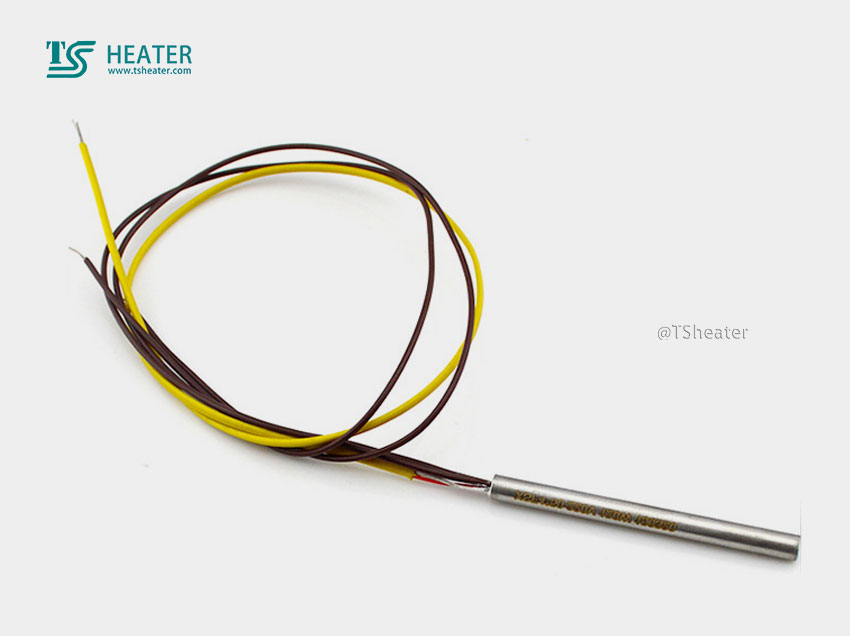

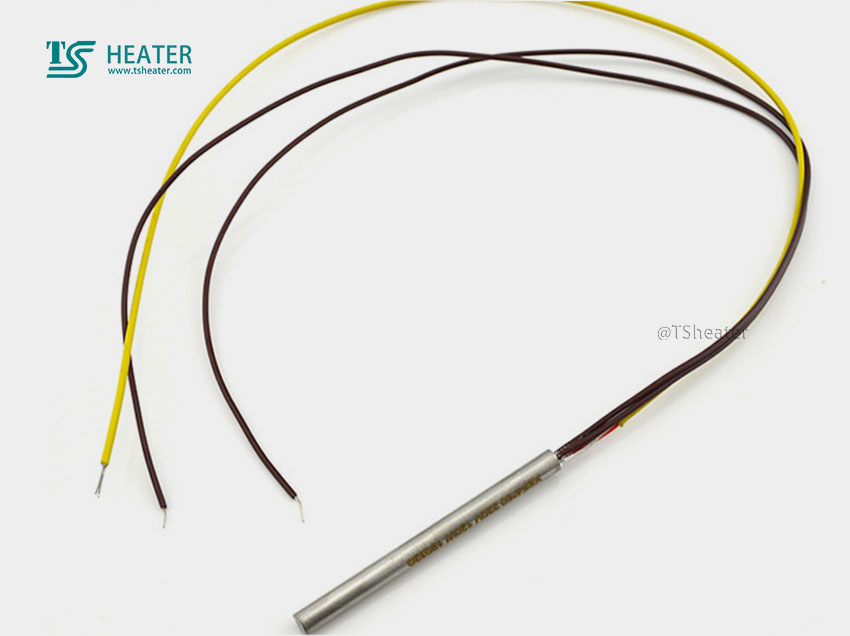

character：Cartridge Heater With Internal Thermocouple

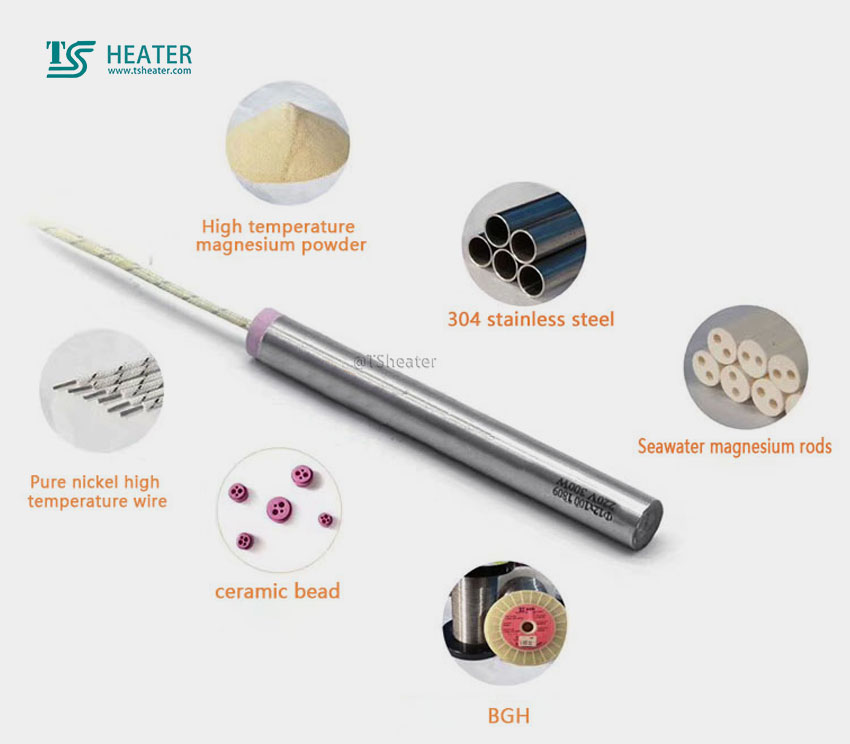

A heating wire wound internally on a ceramic core. the number of coils varies with the power, providing a uniform heat distribution, greatly improving the service life of the heater, and preventing the oxidation of heater wire at high temperature.

The application：Cartridge Heater With Internal Thermocouple

Cartridge Heater With Internal Thermocouple

Semiconductor chamber heating

Semiconductor wafer lead connection

Bonding of semiconductor wire to mold

Anti-freezing and de-icing equipment in cold climate or application environment

Humidity control

Patient comfort heating for medical equipment

Mould and pressing plate heating

Seal strip for packaging equipment

The sample was heated by gas chromatography

Heat transfer machine

Guide for ordering electric drum heater：Cartridge Heater With Internal Thermocouple

1) pipe diameter, length, volt/watt

2) materials and quantity

3) lead selection and length or terminal configuration, sheath material

4)L-shaped

Cartridge Heater With Internal Thermocouple
